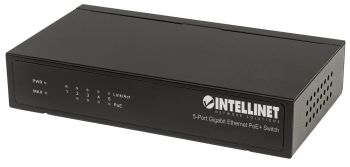

INTELLINET 561228
5-Port Gigabit Ethernet PoE+ Switch 4 x PSE PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), 60 W, Desktop

Save installation costs and time thanks to PoE



The 5-Port Gigabit Ethernet PoE+ Switch (561228) from Intellinet Network Solutions is an excellent solution for transmitting data and power to PoE-compliant devices via Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports (four PoE+ PSE ports), this switch provides power to access points and bridges, VoIP phones, IP cameras and much more, while maintaining transfer speeds up to 1000 Mbit /s delivers.



Power over Ethernet 802.3at

This switch supports the IEEE 802.3at protocol, delivering up to 30 watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices that connect to the switch do not require additional power supply, saving significant cost and time on laying power lines and a lot of clutter of cables and adapters Exposed areas such as walls and ceilings are no longer required. Any combination of PoE and non-PoE devices is supported and thanks to protection against short circuits, overload and overvoltage, your equipment is well secured.



Green Ethernet -Technology

Network switches rarely use all ports at the same time. If a PC, notebook, printer or other device on the network is turned off, a normal switch continues to use the same amount of power as if those devices were turned on. Thanks to energy-efficient IEEE 802.3az technology, this switch automatically detects the status of all connected devices and reduces power consumption of unused ports. It can also adjust its own power consumption based on the length of the connected network cable. This combination saves you energy and therefore money.



* The total PoE budget is 60 watts. The average power allocation per port is 15 watts, the maximum usage on a port is 30 watts. - Power and data connection for up to four PoE network devices

• Saves installation costs by transferring data and power over the existing network cables
-IEEE 802.3at/af-compliant RJ45 PoE/PoE+ outputs

• Power-saving Green Ethernet technology deactivates unused ports and adjusts the power level according to the cable length
• Output power up to 30 watts per port
• PoE power budget 60 watts
• Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short-circuit, overload and over-voltage protection
• All RJ45 ports support Auto-MDI/MDI-X and NWay Auto-Negotiation
• Complies with IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Store and forward switching architecture
• 10 Gbit/s switching capacity
• Supports jumbo frames up to 9 KByte
• IEEE 802.3x flow control for full duplex
• Fan-free design for quiet operation
• Desktop metal housing
• Fully NDAA compliant
• 3 year warranty Standards
• IEEE 802.3 ( 10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (1000Base-T Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
General

• Packet Filter/Forwarding Rate:
• 1,488,000 pps (1,000 Mbps)
• 148,800 pps (100 Mbps)
• 14,880 pps (10 Mbps))
• MAC address table: 2048 entries
• Cache: 192 kB
• Backplane speed: 10 Gbps
• Store-and-forward architecture
• PoE PSE ports: 2-5
• Pin assignment RJ45 output ports (data + power)
• IEEE Alternative A
• Pin 1: Vport [+]
• Pin 2: Vport [+]
• Pin 3: Vport [-]
• Pin 4: Not used
• Pin 5: Not used
• Pin 6: Vport [-]
• Pin 7: Not used
• Pin 8: Not used
• Certificates: FCC Class A, CE
LEDs

• Power
• Connection/Activity
• PoE
Power

• Power supply included:
• Input: 100.0 - 240.0 VAC, 50 - 60 Hz
• Output: DC, 51.0 V , 1.25 A, 63.75 W (max.)
• Power consumption: 63.75 W (max.)
General

• Metal housing
• Dimensions: 76 (L) x 140 (W) x 27 (H) mm
• Weight: 0 .71 kg
• Operating temperature: 0 - 40°C
• Humidity: 10 - 90% RH, non-condensing
• Storage temperature: -20° - 70°C
Scope of delivery

• 5-port Gigabit Ethernet PoE+ switch
• Power supply
• Manual Color: Black Product dimensions: 76 (L) x 140 (W) x 27 (H) [mm]
