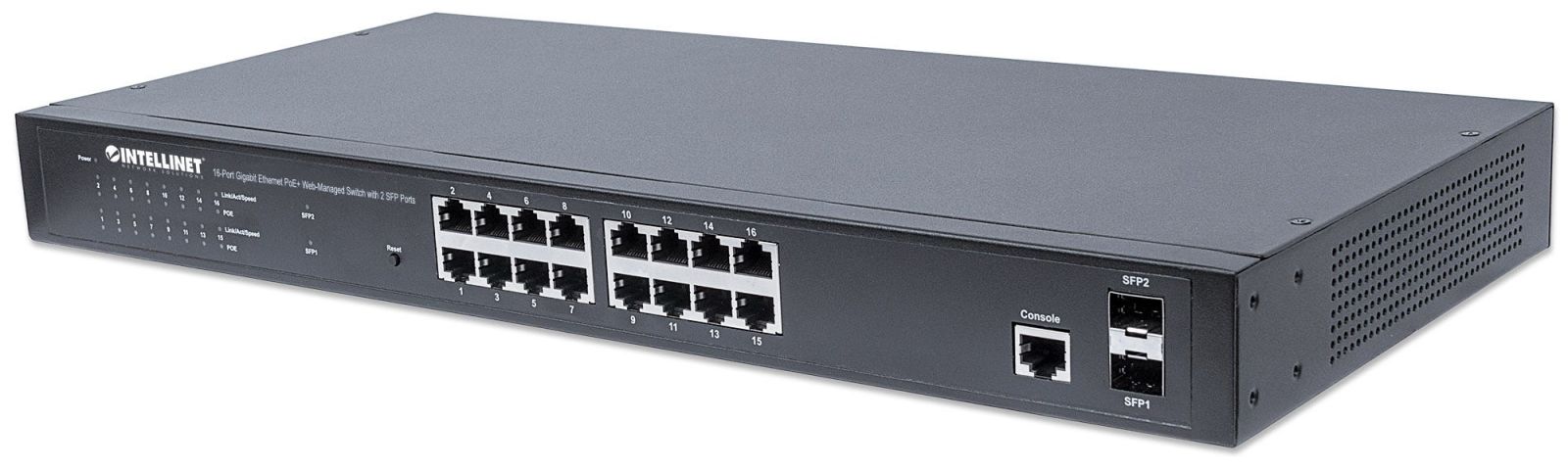

INTELLINET 16-Port Gigabit Ethernet PoE+ Switch Web-Managed with 2 SFP Ports PoE+/PoE 374 W Endspan 19inch Rackmount black
|
325,40 EUR |
|
|
( 387,23 EUR incl. VAT ) ≈ £273.99 | ≈ $365.43 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| End-Of-Life: | 07. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1249408 |
| Mfg Part No: | 561198 |
| UPC/EAN: | 0766623561198 |
| Weight: | 2.825 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-sensing | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Manual | |
| Rack mount kit | |
| Performance | |
| Noise level | 45 dB |
| Buffer size | 512 KB |
| Telnet | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 410 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 374 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Security | |
| Security algorithms | SNMP, SNMPv3, SSH-2 |
| ICMP attack prevention | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
Questions & answers
What is the delivery time of INTELLINET 16-Port Gigabit Ethernet PoE+ Switch Web-Managed with 2 SFP Ports PoE+/PoE 374 W Endspan 19inch Rackmount black?
The article INTELLINET 16-Port Gigabit Ethernet PoE+ Switch Web-Managed with 2 SFP Ports PoE+/PoE 374 W Endspan 19inch Rackmount black is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 561198 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INTELLINET 16-Port Gigabit Ethernet PoE+ Switch Web-Managed with 2 SFP Ports PoE+/PoE 374 W Endspan 19inch Rackmount black always at the best possible price. We can give you a discount of 2% on INTELLINET 16-Port Gigabit Ethernet PoE+ Switch Web-Managed with 2 SFP Ports PoE+/PoE 374 W Endspan 19inch Rackmount black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
