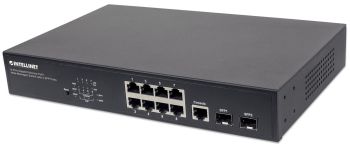

INTELLINET 561167
8-port Gigabit Ethernet PoE+ web-managed switch with 2 SFP ports 8 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 140 W, end span, desktop, PDM function, 48,3 cm ( 19 inch ) rackmount

Save time and money with Power over Ethernet
The Intellinet 8-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP ports (561341) is an excellent solution for the ;Transfer data and power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with 8 Gigabit ports (all with support for 802.3at/af PoE/PoE+), this switch provides power to access points and bridges, VoIP phones, IP cameras and much more, while also providing power to access points and bridges. delivers transmission speeds of up to 1000 Mbit/s.
Power over Ethernet 802.3at
This switch supports the IEEE 802.3at protocol and thus delivers up to 30 watts of power per port* . IEEE802.3af or IEEE802.3at compliant devices that connect to the switch do not require additional power supply, saving significant cost and time on laying power lines and a lot of clutter of cables and adapters Exposed areas such as walls and ceilings are no longer required. Any combination of PoE and non-PoE devices is supported and your equipment is well protected thanks to protection against short circuits, overloads and surges. For devices that do not support the 802.3at/af standard (older access points or network cameras), we recommend using an Intellinet PoE/PoE+ splitter.

Web Management< / >
This PoE switch has an impressive number of management functions that give you full control over all aspects of your network. The 8-port Gigabit Ethernet PoE + Web Managed Switch supports VLAN, port aggregation as well as mirroring, QoS, as well as SNMP V1 and the popular V2c. These are just a few good examples of the versatility of this switch.
PoE management
The Intellinet 8-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP ports offers extensive PoE management functions. The response delay per port compensates for the power hike, i.e. the short-term, concentrated power load that normally occurs when the system boots, and the PoE prioritization (low, medium, high) allows you to specify particularly important ports , which are always powered even if the PoE power budget limit has been exceeded. Additionally, you can set the maximum power allocation per port, turn PoE on or off per port, and monitor the current power consumption of all connected PoE devices. In addition, this Intellinet switch can send SNMP trap messages to inform an admin if the user-defined power consumption threshold has been exceeded.
Gigabit speed instead of a bottleneck
Equipped with 8 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the switch offers huge performance for computers, servers and other network devices. These are not simple combo ports, but real gigabit ports that increase the available bandwidth up to 20 Gbit/s.

* The total PoE budget is 140 watts . The average power allocation per port is 17.5 watts, the maximum usage on a port is 30 watts. - Power and data connection for up to eight PoE network devices

• Saves installation costs by transmitting data and power over the existing network cables
• Domotz compatible for cloud management (may require firmware upgrade)
• For use as a desktop version or for 48,3 cm ( 19 inch ) mounting
• 10/100/1000 auto-sensing ports automatically detect the optimal network speed
• Two GBIC module slots (SFP)
• IEEE 802.3at/af compliant RJ45 PoE/PoE+ outputs
• Output power up to 30 watts per port*
• PoE power budget 140 watts
• PoE surge protection (4 kV) on all RJ45 ports
• 20 Gbit/s switching -Capacity
• Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Low-power Green Ethernet technology disables unused ports and adjusts power level according to cable length
• Complies with IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• IEEE 802.3az (Energy Efficient Ethernet EEE) can be disabled
• Supports IEEE 802.3at/af detection and protection against short circuit, overload and overvoltage
• All RJ45 ports support Auto-MDIX (Auto Uplink)
• Configuration via web browser, Telnet or SSH
• Reboot via remote access
• Supports SNMP management
• PoE management - PoE port settings, priority and switch-on delay
• The Powered Device Monitor feature (PDM) monitors all connected PoE devices and restarts them if inactive
• IGMP snooping for multicast filtering
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 < 9
• Supports VLAN (day and Port-based)
• Supports link aggregation (trunking)
• Supports port mirroring
• Supports QoS bandwidth management
• Broadcast storm control with multicast packet rate settings
• Store-and-forward architecture
• Supports jumbo frames up to 9 kByte
• Supports Rapid Spanning Tree/Spanning Tree protocol
• IEEE 802.3x flow control at full duplex
• Supports 8,000 MAC address entries
• 512 Kbyte buffer
• The high-efficiency fan ensures quiet and reliable cooling
• Desktop metal housing
• 48,3 cm ( 19 inch ) mounting bracket included
• Fully NDAA compliant
• 3-year warranty standards
• IEEE 802.1d (Spanning Tree Protocol)
• IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.1s (Multiple Spanning Tree Protocol)
• IEEE 802.1w (Rapid Spanning Tree Protocol)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3ad (Link Aggregation Control Protocol LACP)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at ( Power over Ethernet 802.3at Type 2)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (Flow Control, in full duplex mode)
General

• Ports
• 8 x 10/ 100/1000 Mbit/s RJ45 PoE capable ports
• 2 x Gigabit SFP ports
• 1 x console port
• MAC address table: 8192 entries
• Cache: 512 KByte
• Backplane speed: 20 Gbit/s
• Store-and-forward Architecture
• Maximum Packet Rate: 14.88 Mpps
• MTBF: 259,692 hrs
• Cooling
• One fan
• Operating volume: 23.5 dB(A) (max.)
• Advanced settings
• 802.1x authentication
• ACL access control list
• Broadcast storm control with broadcast rate, multicast rate and flooded unicast rate
• Cable diagnostics
• DHCP relay with Option82
• IGMP snooping via command line
• Port link speed: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s or auto-negotiation
• Flow control on/off per port
• LAN settings (IP address, DHCP, gateway, etc .)
• MAC address management, learning < aging, MAC filter
• Ping tool
• Port mirroring, 1 to 1, or 1 to multiple
• Port aggregation/LACP: 8 groups
• Quality of Service (QoS)
• Link Layer Discovery Protocol (LLDP) - Station and Media Access Control Connectivity Discovery
• Radius server via command line
• Rate Limiting (Ingress Rate and Egress Rate)
• RMON groups (Statistics, History, Alarm and Event)
• SNMPv1/v2c/v3 (Simple Network Management Protocol)
• Spanning Tree (STP, RSTP, MSTP)
• TACAS+ via command line
• Tracert tool
• VLAN
• PoE settings
• PoE on / off per port
• PoE mode per port: AF < AT / AF only
• Max current per port
• PoE prioritization per port: low, medium, high
• PoE alarm notification via SNMP traps
• PoE power-on delay per port
• PoE restart configuration per port
• PoE status control
• Pin assignment RJ45 output ports (data + power)
• IEEE Alternative A
• Pin 1: Rx+ (data receive) + Vdc_return (+) (feeding power [+])
• Pin 2: Rx- (data receive) + Vdc_return (+) (feeding power [+])
• Pin 3: Tx+ ( data transmit) + Vdc (feeding power [-])
• Pin 6: Tx- (data transmit) + Vdc (feeding power [-])
• Certificates: FCC Class A, CE
LEDs

• PoE
• Power
• Link/Activity
power supply

• Input: 100 - 240 VAC, 50 - 60 Hz
• Power consumption: 163.2 watts (max)
Physical details

• Metal housing
• Dimensions: 280 (W) x 180 (L) x 44 (H) mm
• Weight: 1.6 kg
• Operating temperature: 0 - 45° C
• Humidity: 10% - 90% RH, non-condensing
• Storage temperature: -10 - 70°C
Scope of delivery

• 8-port desktop Gigabit Web-Managed PoE+ switch with 2 SFP ports
• 48,3 cm ( 19 inch ) mounting bracket
• Power cable
• Instructions Color: Black Product dimensions: 180 (L) x 280 (W) x 44 (H) [mm]
