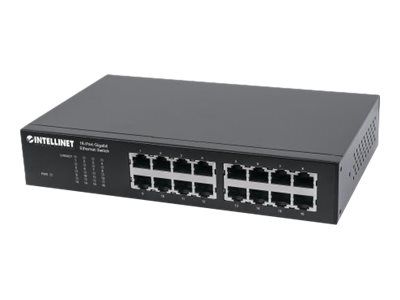

INTELLINET 561068 16-Port Gigabit Ethernet Switch 16-Port 10/100/1000 Mbps RJ45, IEEE 802.3az Energy Efficient Ethernet, desktop, 48,3 cm ( 19 inch )Rackmount
|
94,19 EUR |
|||||||||||
|
( 112,09 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 516159 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 561068 | ||||||||||
| UPC/EAN: | 766623561068 | ||||||||||
| Weight: | 0.94 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for INTELLINET 561068:
- All RJ45 ports support Auto-MDIX (auto uplink)
- For use as a desktop version or the 48,3 cm ( 19 inch )mounting
- Supports NWay auto-negotiation
- Store-and -Forward architecture
- full / half duplex operation
- Supports 802.3x Flow Control for full duplex and backpressure for half-duplex
- The power-saving Green Ethernet technology disables unused ports and adjusts the power level according to the cable length
- Supports jumbo frames up to 9 KByte
- Supports up to 8192 MAC address entries
- 512KB cache
- Supports MAC address auto-learning and auto-aging
- 48,3 cm ( 19 inch )mounting angles included
- 3 year warranty Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3az (Energy Efficient Ethernet EEE)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (flow control, full-duplex) General
- Supported Media:
- 10Base-T Cat3, 4, 5 UTP / STP RJ-45
- 100Base-TX Category 5 UTP / STP RJ-45
- 1000Base-T Cat5e UTP / STP RJ-45
- Packet Filter / forwarding rate:
- 1,488 000 pps (1.000 Mbps)
- 148.800 pps (100 Mbit / s)
- 14.880 pps (10 Mbit / s)
- MAC address table: 8192 entries
- Backplane speed: 32 Gbps
- Store-and-forward architecture
- 16 x RJ 45 Gigabit Ethernet ports
- Certifications: FCC Class A, CE LEDs
- Electricity
- Connection Speed ??per port: 1000 Mbit / s
- Link / Activity per port electricity
- Internal power supply, 100 - 240 VAC, 50/60 Hz
- Power consumption: 9.1 Watt (max) Other Details
- Metal housing
- Dimensions: 215 (L) x 133 (W) x 44 (H) [mm]
- Weight: 0.94 kg
- Operating temperature: 0 - 40 ° C
- Humidity: 10 - 90% RH, non-condensing
- Storage temperature: -20 ° - 70 ° C Delivery
- 16-Port Gigabit Ethernet Switch
- 48,3 cm ( 19 inch )mounting angles
- Power Cable
- Manual Colour: Black Product dimensions: 215 (L) x 133 (W) x 44 (H) [mm]
