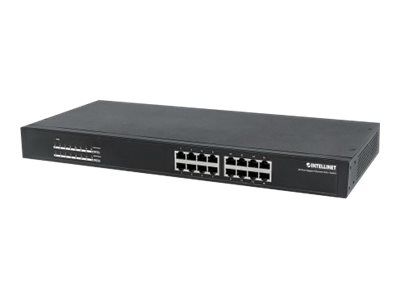

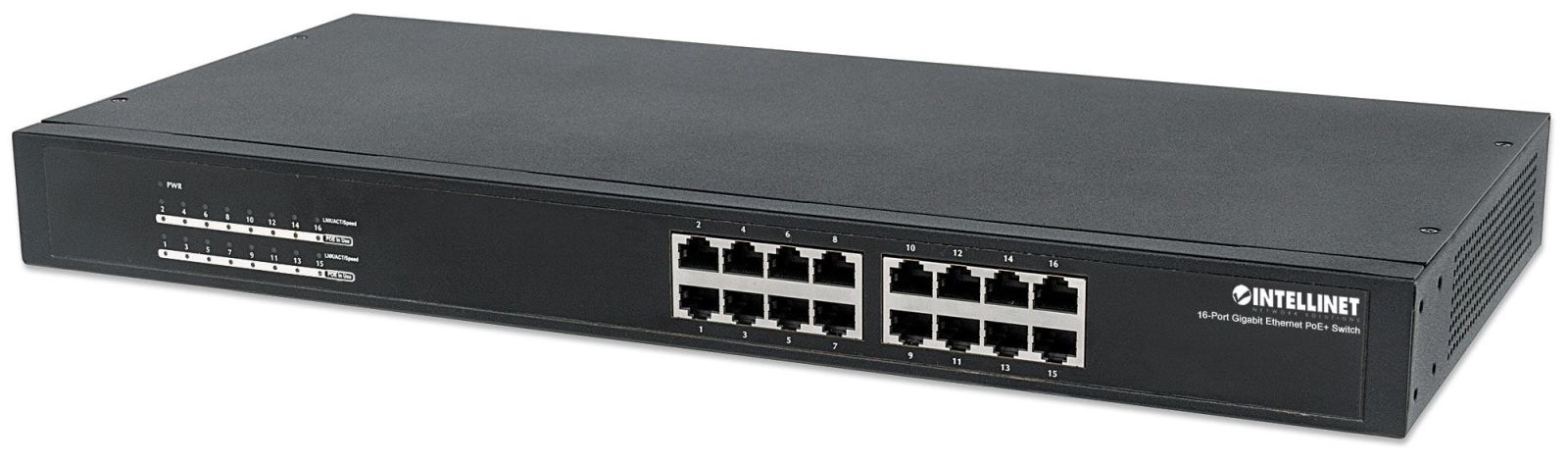

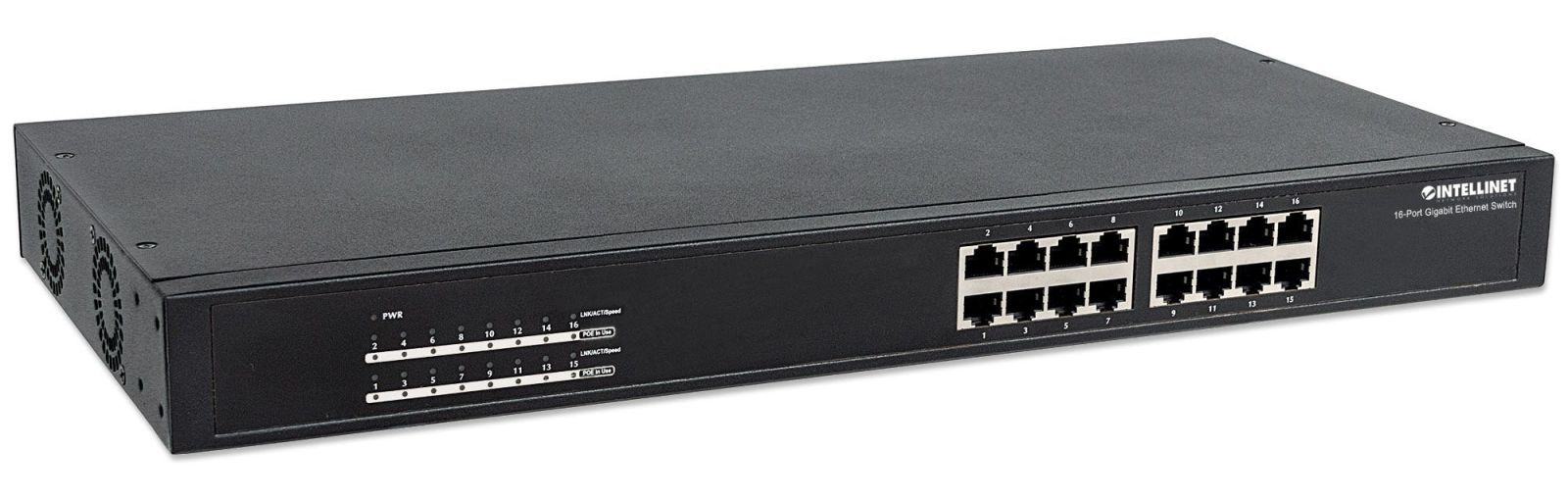

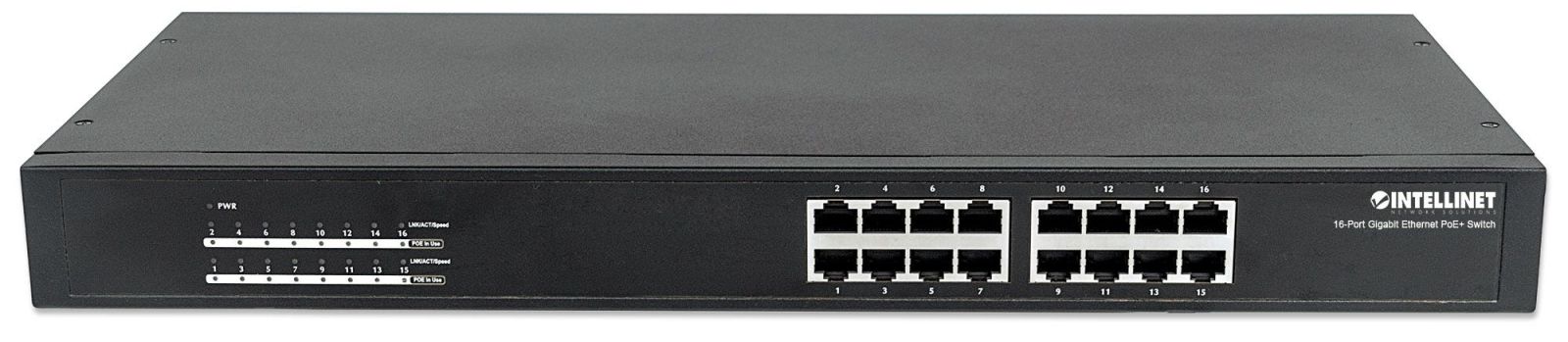

INTELLINET 560993 16-Port Gigabit Ethernet PoE + Switch 16 x PoE ports, IEEE 802.3at / af Power over Ethernet (PoE + / PoE), Endspan, 48,3 cm ( 19 inch )Rackmount

Save installation costs and time thanks to PoE
The INTELLINET 16-port Gigabit Ethernet PoE + Switch (article no. 560993) is an excellent solution for the transmission of data and power to PoE-compatible devices using Cat5e or Cat6 network cable. Equipped with 16 gigabit ports (all with support 802.3at / af PoE / PoE +), the switch delivers power of access points and bridges, VoIP phones, IP cameras, and more, while at the same data rates up to 1000 Mbit / s supplies.
power over Ethernet 802.3at
This switch supports the IEEE 802.3at protocol, delivering up to 30 watts of power per port *. IEEE802.3af or IEEE802.3at-compliant devices that are connected to the switch, do not require any additional power supply, thereby significant cost and time for the installation of power lines can be saved and omitted much tangling and adapter on exposed areas such as walls and ceilings. Any combination of PoE and non-PoE devices is supported and by protecting against short circuits, overload and overvoltage your equipment is well secured. For devices that do not support the 802.3at / af standard (older access points or network cameras), we recommend using a INTELLINET PoE / PoE + splitter.
Extremely high throughput
with a backplane speed of 32 Gbit / s the switch delivers plenty of power for your PCs, servers and other network devices.
* The total PoE budget of 220 watts. - Power and data connection for up to 16 PoE network devices

• Saves time and installation costs by transmitting data and power over existing network cable
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• IEEE 802.3at / af compatible RJ45 PoE / PoE + outputs
• output power up to 30 watts per port *
• PoE capacity 220 Watt
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (Wireless Access Points, VoIP phones, IP cameras)
• Supports IEEE 802.3at / af detection and protection against short circuit, overload and overvoltage
• All RJ45 ports support auto-MDIX (auto uplink)
• Store-and-forward architecture
• IEEE 802.3x flow Control for full duplex
• Supports up to 8192 MAC address entries
• 256 kB cache
• Internal fan for quiet and efficient cooling
• 48,3 cm ( 19 inch )mounting angles included
• 3 year warranty
• Internal fan for quiet and efficient cooling standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at Power over Ethernet (802.3at Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, in full-duplex mode)
General

• Supported Media:
• 10Base-T Cat3, 4, 5 UTP / STP RJ-45
• 100Base-TX Category 5 UTP / STP RJ-45
• 1000Base-T Cat5e UTP / STP RJ-45
• Packet Filter / forwarding rate:
• 1,488 000 pps (1.000 mbps)
• 148.800 pps (100 Mbit / s)
• 14.880 pps (10 Mbit / s)
• MAC address table: 8192 entries
• buffer: 256 kB
• backplane speed: 32 Gbps
• Store-and-forward architecture
• Certificates: FCC Class B, VCCI Class A, CE, RoHS
LEDs

• power
• power
• link / activity
electricity

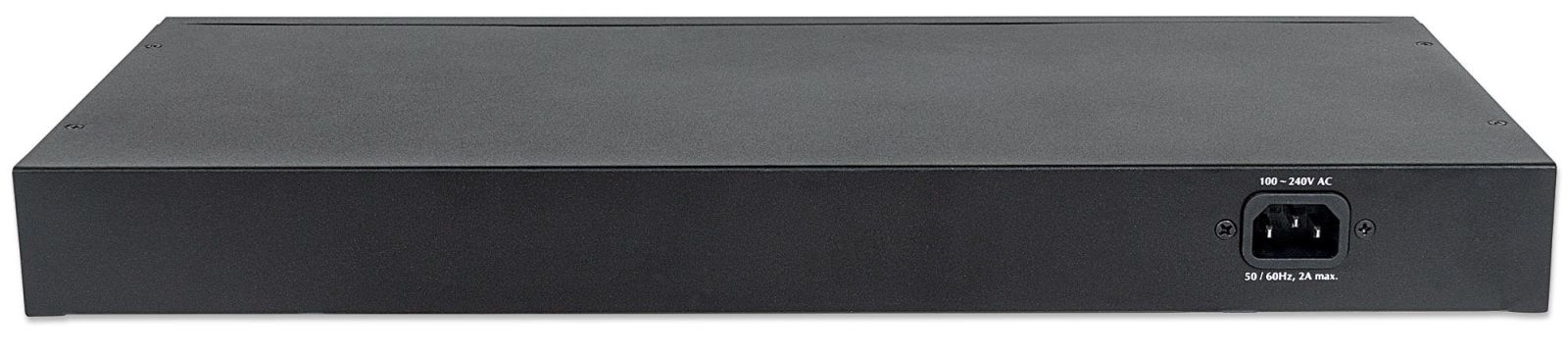

• Input 100 to 240 VAC, 50 to 60 Hz
• Power consumption: 260 watts (max.)
Technical details

• Metal housing
• Dimensions: 208 (L) x 442 (W) x 44 (H) mm
• Weight: 3.8 kg
• Operating Temperature: 0 ° ~ 40 ° C
• Humidity: 10% - 90% RH, non-condensing
• Lageremperature : -10 - 70 ° C (14 - 158 ° F)
delivery

• 16-Port Gigabit Ethernet PoE + Switch
• Power cable
• Manual
• 48,3 cm ( 19 inch )mounting frame Colour: Black Product Dimensions: 208 (L) x 442 (W) x 44 (H) [mm]
