Intellinet 560917 24-port Web-Managed Gigabit Ethernet Switch with 2 SFP Ports 24 x 10/100/1000 Mbit / s RJ45 ports + 2 x SFP, IEEE 802.3az Energy Efficient Ethernet, SNMP, QoS, VLAN, ACL, 48,3 cm ( 19 inch )Rackmount
|
213,62 EUR |
|||||||||||
|
( 254,21 EUR incl. VAT ) ≈ £178.16 | ≈ $238.61 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| End-Of-Life: | 13. May 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 765583 | ||||||||||
| Mfg Part No: | 560917 | ||||||||||
| UPC/EAN: | 0766623560917 | ||||||||||
| Weight: | 2.995 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

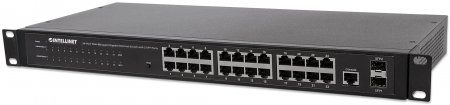

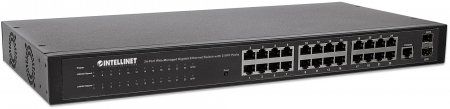

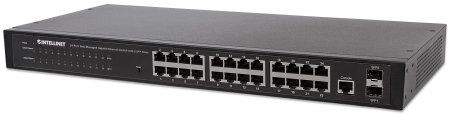

Product information for Intellinet 560917:
- Two GBIC module slots (SFP)
- All RJ45 ports support Auto-MDI / MDI-X and NWay auto-negotiation
- Meets the specification IEEE 802.3az (Energy Efficient Ethernet EEE)
- Configuration Web or Telnet based
- SNMP Management and Remote Monitoring (RMON)
- SNMP V1, V2, V3 with RMON groups 1, 2, 3 & 9
- VLAN (tag and Port Based)
- 802.1X authentication and IP / MAC based Access Control Lists (ACL)
- Supports Link Aggregation (trunking)
- IGMP Snooping for multicast filtering
- Supports port-based bandwidth control
- Supports Port Mirroring
- Supports three QoS types: port-based, 802.1p and DSCP
- Broadcast Storm Control with multicast packet rate settings
- Supports jumbo frames up to 9 KB
- Supports Rapid Spanning Tree / Spanning Tree Protocol
- Store-and-forward architecture
- fan-free design for quiet operation
- full / half duplex mode
- IEEE 802.3x Flow Control for full duplex
- Supports 8000 MAC address entries
- 512KB cache
- Includes 48,3 cm ( 19 inch )mounting angles
- 3-year warranty standard
- IEEE 802.1d (Spanning Tree Protocol)
- IEEE 802.1p (Traffic Prioritization)
- IEEE 802.1q (VLAN Tagging)
- IEEE 802.1s (Spanning Tree Protocol (MSTP)
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
- IEEE 802.3ad (Link Aggregation Control Protocol LACP )
- IEEE 802.3az (Energy Efficient Ethernet EEE)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Flow Control, for full duplex mode)
- SNMPv1 / v2 (Simple Network Management Protocol) General:
- Untestützte media:
- 10Base-T Cat3, 4, 5 UTP / STP RJ-45
- 100Base-TX Category 5 UTP / STP RJ-45
- 1000Base-T Cat5e UTP / STP RJ-45
- Packet Filter / forwarding rate:
- 1,488 000 pps (1.000 Mbps)
- 148.800 pps (100 Mbit / s)
- 14.880 pps (10 Mbit / s)
- MAC addresses: 8000
- buffer: 512 KB
- Backplane speed: 52 Gbit / s
- store-and- Forward architecture
- Configuration options:
- Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
- Flow control on / off per port
- VLAN, S-VLAN
- Rate Limiting (Ingress Rate and Egress Rate)
- Rate Limiting : policy-based or port-based bandwidth control, 16 kbps steps up to 1 Gbps maximum
- Port Mirroring
- ACL (Access Control List)
- Port Aggregation / LACP: 8 groups
- Broadcast Storm configuration with Broadcast Rate, Multicast Rate, and flooded unicast rate
- IGMP Snooping
- Event Logging / Remote Logging
- Quality of Service (QoS): port-based, 802.1p or DSCP
- Integrated ICMP Ping client sends ping requests to other network nodes
- SNMPv1 / v2 (Simple Network Management Protocol)
- LAN settings (IP address, gateway, etc.)
- Certificates: FCC Class A, CE LEDs
- Current
- Link / Activity / Speed current
- Input: 100 - 240 VAC, 50 - 60 Hz
- Power consumption: 20 Watts (max.) Technical details
- Metal housing
- Dimensions: 440 (W) x 205 (L) x 44 (H) mm
- Weight: 2.2 kg
- Operating temperature: 0 - 40 ° C
- Humidity: 10 - 90% RH, non-condensing
- Storage temperature: 40 - 70 ° C Delivery
- 24-port Web-Managed Gigabit Ethernet Switch with 2 SFP Ports
- Power cable
- 48,3 cm ( 19 inch )mounting angles
- Manual Color: Black Product dimensions: 440 (W) x 205 (L) x 44 (H) mm
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9216 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Multicast features | |
| Number of multicast groups filtered | 8 |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Rack mount kit | |
| Packaging data | |
| Mounting brackets included | |
| Performance | |
| Buffer size | 512 KB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 20 W |
| Security | |
| Authentication | Port-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 205 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
