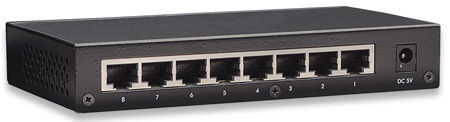

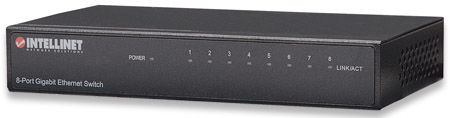

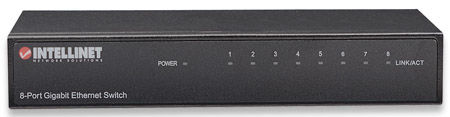

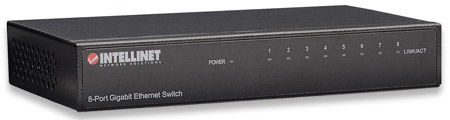

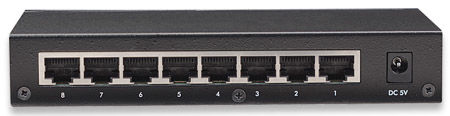

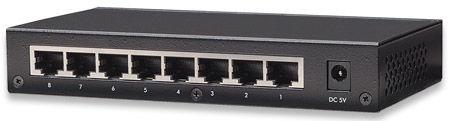

Intellinet 530347
8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100/1000Base-T content_copy

The INTELLINET NETWORK SOLUTIONS 8-Port Gigabit Ethernet Switch is perfect for home and small office applications, and its high speed network all requirements are met. The metal housing provides excellent protection and compact design also allows installation on the desk. High-speed performance The desktop switch with eight Gigabit Ethernet ports provides high performance for fast data transfer so disk mirroring, backup, transfer of large image data and other to support bandwidth-intensive applications. Autofeatures This switch contains many automatic features to use as simple as possible. For Plug and Play installation no configuration is needed. Auto-MDIX on all ports by detecting no more crossover cables are required. Each of the eight ports automatically senses the link speed of the connected device and sets it to 10, 100 or 1000 Mbps in order to obtain maximum performance. reliable use of Gigabit Ethernet Desktop Switch supports for a continuous and uninterrupted network connection flow control in half duplex mode and IEEE 802.3ab in full-duplex mode. This, in conjunction with Broadcast Storm Control, ensures even at high load for a secure connection. - 10/100/1000 auto-sensing and auto MDI-X ports - automatically detect optimal network speeds - High performance, half and full duplex with Zero Packet Loss - Flow Control support for optimal performance - Automatic network configuration - Supports up to 8192 MAC addresses - 128 KB cache - Supports jumbo frames up to 9 kBytes - Store and forward switch architecture - non-blocking wire-speed forwarding and filtering

















- 3 years warranty standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3x (Flow Control and Back Pressure)

Generally

• ANSI / IEEE 802.3 Nway auto-negotiation
• Non-blocking, store and forward switching architecture
• Back pressure flow control for half-duplex
• Ports: 8 x 10/100/1000 Mbps RJ-45 ports
• Switch architecture: store and forward switch technology
• Network cable:
• 10Base-T Cat3, 4, 5 UTP / FTP
• 100Base-TX: Category 5 UTP / FTP
• 1000Base-T Cat5e UTP / FTP
• Certifications: FCC Class A, CE Class A

Performance

• Filter / forward rate
• 10BaseT: 14,880 pps (packets per second)
• 100Base-TX: 148,800 pps (packets per second)
• 1000Base-T: 1,480,000 pps (packets per second)
• MAC address entries: 8192 entries
• Jumbo frame support: 9 kB

LEDs
- Power
- LINK / ACT for each 10/100/1000 Mbps port

Current
- DC Input: 5 V, 1 A

Technical Details

• Metal housing, Desktop Size
• Dimensions: 155 (W) x 85 (L) x 26 (H) mm
- Weight: 0.6 kg
- Operating temperature: 0 - 40 ° C
- Humidity: 10 - 90% RH, non-condensing

Scope of delivery
- 8 Port Gigabit Ethernet Desktop Switch
- External power supply
- Manual Color: Black Product dimensions: 155 (W) x 85 (L) x 26 (H) mm
