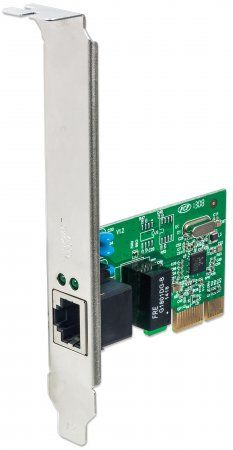

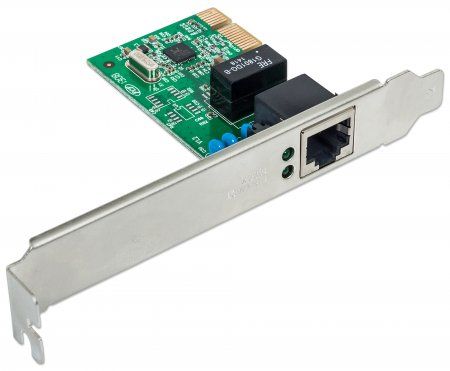

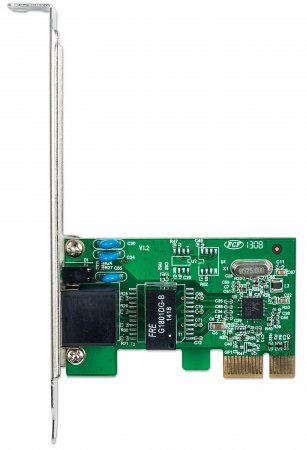

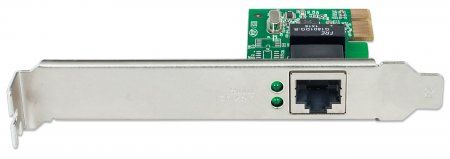

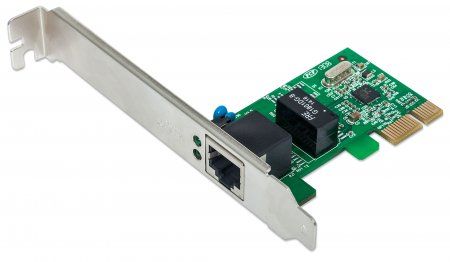

Intellinet 522533 Gigabit Ethernet Card for PC - PCI - 1 Port(s) - 1 x Network (RJ-45) content_copy

The Gigabit PCI Express Network Card is a high performance network adapter.The PCI Express interface Provides higher bandwidth than Conventional 32 or 64 bit PCI interfaces. With the INTELLINET NETWORK SOLUTIONS Gigabit PCI Express network card, you can use Gigabit speeds over your existing copper network cabling. Faster Throughput The card supports throughput rates of up to 2 Gb / s When it is operating in full-duplex mode. This is ideal for data-intensive applications: such as CAD / CAM, client-server databases, multimedia, graphics, servers and other applications. autodetection The card Automatically Detects the speed did the LAN switchport and run at the same speed. The card supports 10Base-T Ethernet, 100Base-TX Fast Ethernet and 1000Base-T Gigabit Ethernet. Fully duplex in full duplex mode the card supports 20 Mbit / s (10Base-T Ethernet), and 200 Mbit / s (100Base-TX Fast Ethernet) and 2Gbit / s (1000Base-T Gigabit Ethernet). Built-in diagnostics The Gigabit PCI Express card comes with a crossover detection and auto-correction, Which makes easy installation and maintenance. remote Power On The Wake-on-LAN functionality Enables you to use the PC of any location on each. - Supports Gigabit speeds over existing network cable - Does not require fiber optic cables for Gigabit speeds - PCI Express 1.0a interface fits into 1.4 , 8, and 16x PCI-E slots - one PCI Express lane (x1) 2.5 Gb / s Interface - Full Duplex Flow Control (IEEE 802.3x) - Supports jumbo frames up to 9 KB - Supports Full Duplex (20 Mbit / s, 200 Mbit / s, 2000 Mbit / s) - Includes 8 inch low-profile bracket (* expected available Q4 2011) - Supports Wake-On-Lan (WOL) - Supports the most popular operating systems: Windows XP, Vista and Windows 7 - 3 years warranty Network - IEEE 802.3 (10Base-T Ethernet) - IEEE 802.3u (100Base-TX Fast Ethernet) - IEEE 802.3ab (1000Base-T Gigabit Ethernet) - RJ-45 port - Ethernet 10 Mbit / s (half duplex ) - Ethernet 20 Mbit / s (full duplex) - Fast Ethernet 100 Mbit / s (half duplex) - Fast Ethernet 200 Mbit / s (full duplex) - Gigabit 2000 Mbit / s (full-duplex)



































Hardware

• Complies with FCC & CE rules
• Compliant with PCI Express Specification Revision 1.0a
• 10 Mbit / s Link / Act LED
• 100 Mbit / s Link / Act LED
• 1000 Mbit / s Link / Act LED

Technical Details

• Dimensions: 25.4 x 122 x 89 mm
• Weight: 39.6 g
• Operating Temperature: 0 ° - 55 ° C
• Storage temperature: 0 ° - 65 ° C
• Operating Humidity: 10% - 90%, non-condensing
• Storage Humidity : 5% - 95%, non-condensing

Supported Operating Systems

• Windows XP
• Windows Vista 32/64-bit
- Windows 7
- Windows Server 2003
- Windows Server 2008 32/64-bit

Scope of delivery

• Gigabit PCI Express network card
• User Guide
• 8cm low profile bracket (* expected to be available Q4 2011)
• Installation CD Product Dimensions: 25.4 (H) x 122 (W) x 89 (D) mm

Design
Component for	PC
Certification	FCC & CE
Internal
Logistics data
Harmonized System (HS) code	85176990
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Ethernet LAN
Full duplex
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Other features
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supported data transfer rates	10/100/1000 MBit/s
Link/Act LED
Packaging content
Manual
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
System requirements
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Technical details
Compliance certificates	Federal Communications Commission (FCC)
Weight & dimensions
Width	122 mm
Depth	254 mm
Height	89 mm
Weight	108.3 g

---
