INTELLINET 508216
Gigabit PoE+ media converter 10/100/1000Base-T RJ45 port to SFP port, PoE+ injector
|
93,94 EUR |
|
|
( 111,79 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1377942 |
|---|---|
| Mfg Part No: | 508216 |
| UPC/EAN: | 766623508216 |
| Weight: | 0.2 kg |
Product information for INTELLINET 508216:
Higher range
Thanks to the fiber optic support, even distant workgroups can be integrated into your network. Building-to-building connections are easily possible without additional access points.
Power over Ethernet included
The Intellinet Gigabit PoE+ media converter supplies power even where there are no sockets, without the need for complex electrical installations and high costs for an electrician. Thanks to support for the IEEE802.3af / IEEE802.3at protocol, it delivers up to 30 watts of power to compatible devices.
Flexibility in cabling
Thanks to its Compact design, this converter can be used in both desktop applications with limited space and in wall cabinets. Several converters can also be integrated into an Intellinet 19” Install media converter case. - One 10/100/1000 RJ45 port supports a maximum range of 100m
- SFP port allows range up to 120km
- Link Fault Passthrough (LFP) for easier network maintenance
- Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (Wireless Access Points, VoIP Phones, IP Cameras)
- Supports operation in full duplex mode or half duplex mode with autonegotiation
- Status LED for power and link/TX for both ports
- Supports jumbo frames up to 9 KByte
- Slim metal housing with protection class IP30
- Fully NDAA compliant
- 3 year warranty Standards
- IEEE 802.3 / 802.3u / 802.3ab
- 10/100/1000Base-T
- IEEE 802.3at / 802.3af Power over Ethernet (PoE+) Standard
- EMC: FCC Part 15 General:
- Supported media:
- 1000Base-T: Cat5 UTP/STP, max. 100 m
- SFP module slot for Mini GBIC module (not included)
- Connections:
- 1 x 10/100 /1000 Mbit/s port, full/half duplex,MDI/MDI-X
- 1 x SFP port
- Pin assignment RJ45 output ports (data + power)
- IEEE Alternative A
- Pin 1: [+]
- Pin 2: [+]
- Pin 3: [-]
- Pin 4: Not used
- Pin 5: Not used
- Pin 6: [-]
- Pin 7: Not used

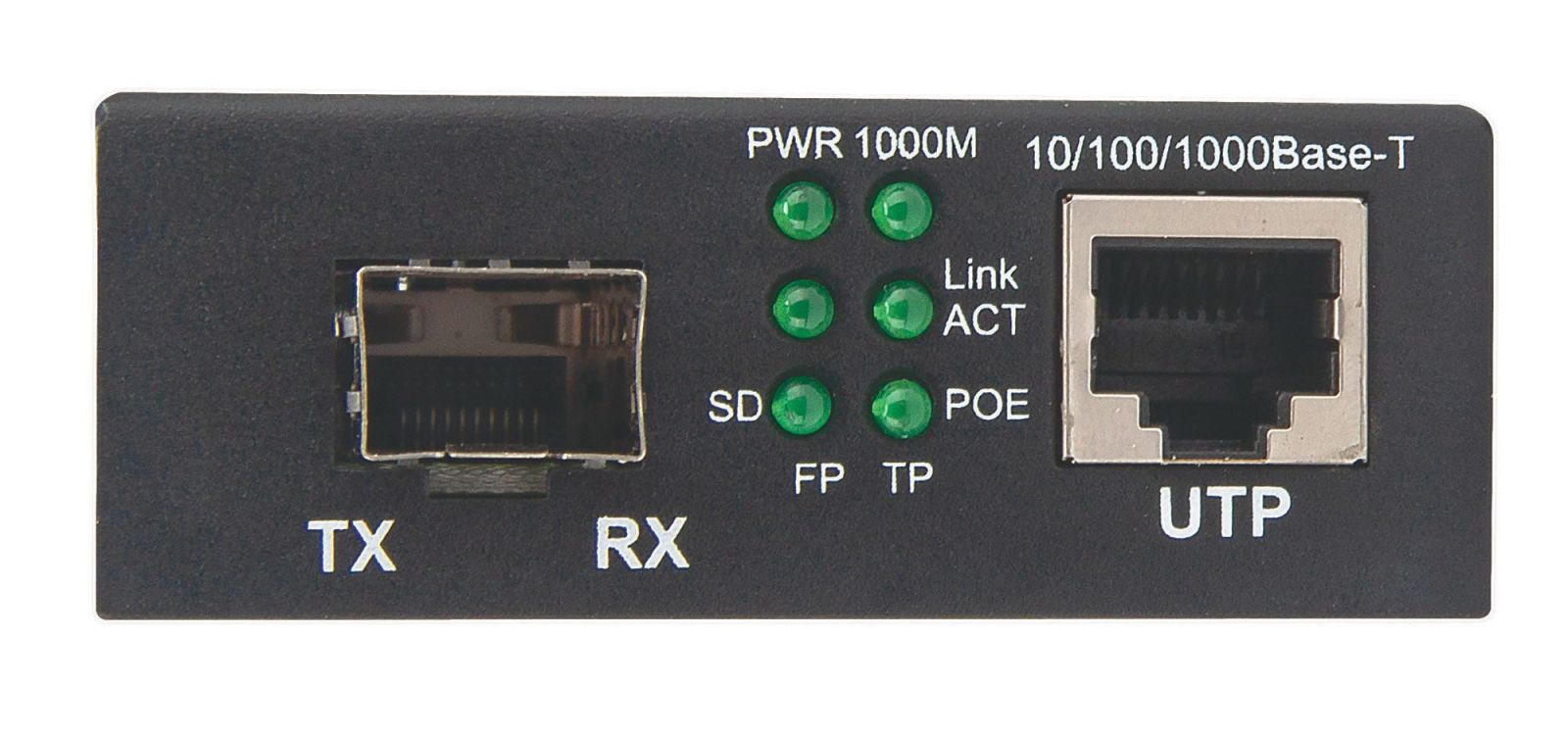

- Pin 8: Not used LEDs
- Power
- LINK /ACT for RJ45 port
- LINK/ACT for SFP port
- PoE indicator
- LED for optical signal input Current
- Input voltage: 56 V
- Input current: 0.5 A Environment
- Metal housing
- Dimensions: 95 (L) x 70 (W ) x 25 (H) mm
- Net weight: 200 g
- Gross weight: 320 g
- Operating temperature: 0 - 55°C
- Humidity: 5 - 80% RH, non-condensing
- Storage temperature: -10 - 70°C Scope of delivery
- Gigabit PoE+ media converter
- External power supply
- Manual Color: Black Product dimensions: 95 (L) x 70 (W) x 25 (H) [mm]
