Intellinet Fast Ethernet Media Converter - media converter - 10Base-T, 100Base-FX, 100Base-TX
|
47,66 EUR 48,48 EUR |
|||||||||||
|
( 56,72 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 262055 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 506502 | ||||||||||
| UPC/EAN: | 766623506502 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for INTELLINET 506502:
Expands an existing network
Through the fiber-optic link distant Workgroups can now be integrated into the network. Building-to-building connections can thus be established without additional router, which saves time and costs.
Increases the range between network devices
By connecting to an optical fiber segment, the distance between the remote network node can be increased. This can be achieved by a direct connection of the converter to a fiber connection node or network device.
Flexibility in wiring
Network administrators can install anywhere within a network without having to change the structure of the copper cable network fiber-optic cable. The compact design of this converter can be installed in places where space is limited, and on a wall mount.Likewise, several converters can be simultaneously installed in a 48,3 cm ( 19 inch )rackmount enclosure - Data transfer rate:. 100 Mbit / s
- One RJ45 10/100Base-TX port, maximum distance 100 m - RJ45 port with Auto MDI / MDI-X support
- A 100Base-FX multi-mode fiber SC duplex port
- Supported fiber distance: up to 2 km (62.5 / 125 - or 50/125-µm-Kabel)
- 1310 nm wavelength - Flow Control (Flow Control)
- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet)
- Status LED for power and Link / TX for both ports

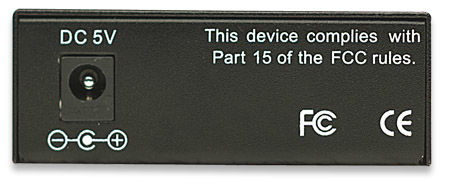

- External power supply, 5 V DC
- 3 years warranty standards
Generally
- Supported Media:
- 100Base-TX Cat3 or higher UTP / STP RJ45, EIA / TIA 568
- 100Base-FX Multimode 62,5 / 125 or 50/125 micron fiber Connections:
- One RJ45 Port, 100Base-TX
- A multimode fiber SC duplex port 100Base-FX - Range:
- 2 km (62.5 / 125 or 50/125 micron fiber cable)
- 100 m (RJ45 cable)
- Wavelength: 1310 nm
- Min TX Power: -22 dBm - Max TX Power: -12 dBm
- RX Sensitivity: -30 dBm
- Signal Loss: 2 dB / km - Certifications: FCC Class B, CE
- Operating temperature: 0 - 70 ° C
- Humidity: 10% to 90% RH, non-condensing - Storage temperature: -45 - 80 ° C

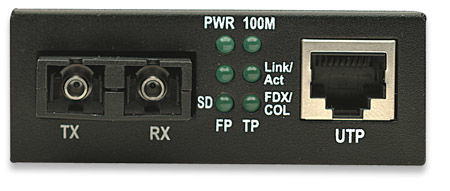

LEDs
- Power
- Link / activity on RJ45 port
- Link / activity on fiber SC port
- Show 100 Mbit / s link speed on RJ45 port
- LED for optical signal input
- Voll-/Halb-Duplex
Current
- External power supply, 5 V DC, 1 A
- Power consumption: 2.5 watts (max)
Physical Specifications
- Metal housing
- Dimensions: 107 (L) x 70 (W) x 26 (H) mm
- Weight: 500 g
Scope of delivery
- Fast Ethernet Media Converter
- Power supply
- Manual Color: Black Product dimensions: 107 (L) x 70 (W) x 26 (H) mm
