Intellinet 163682

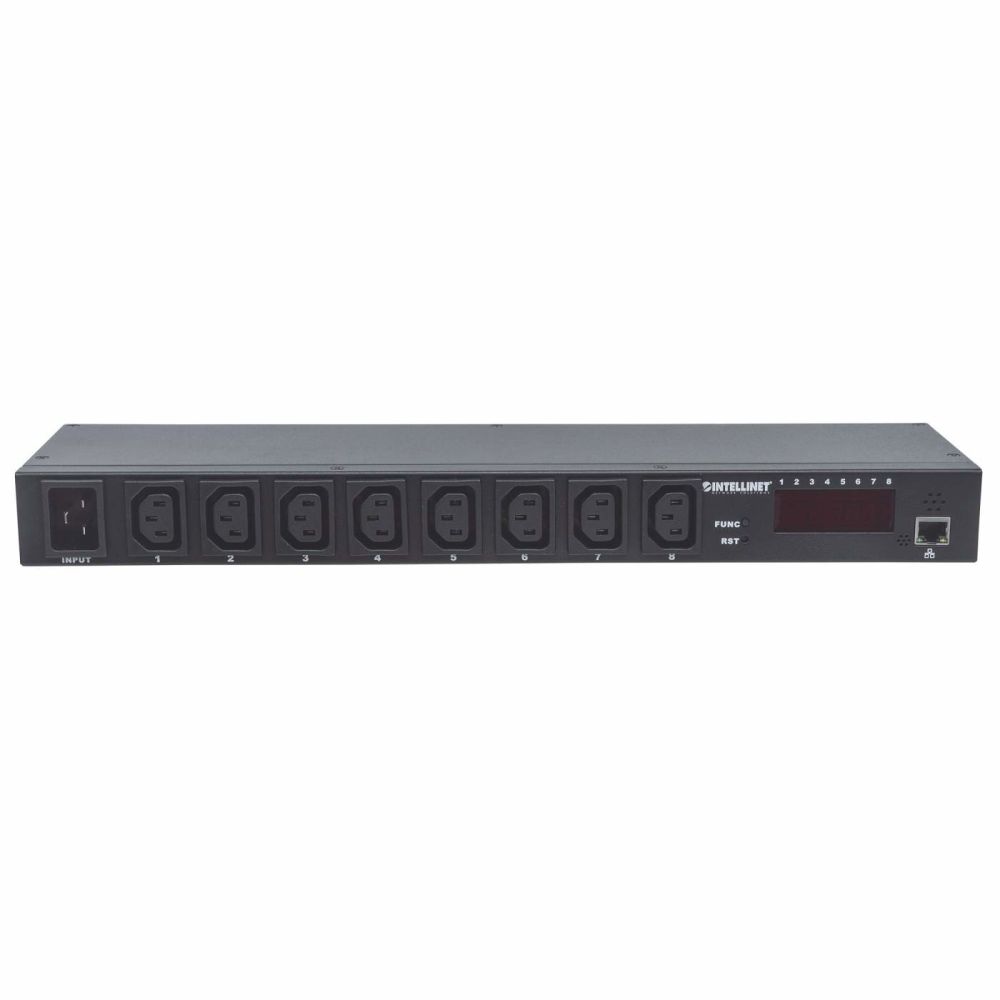

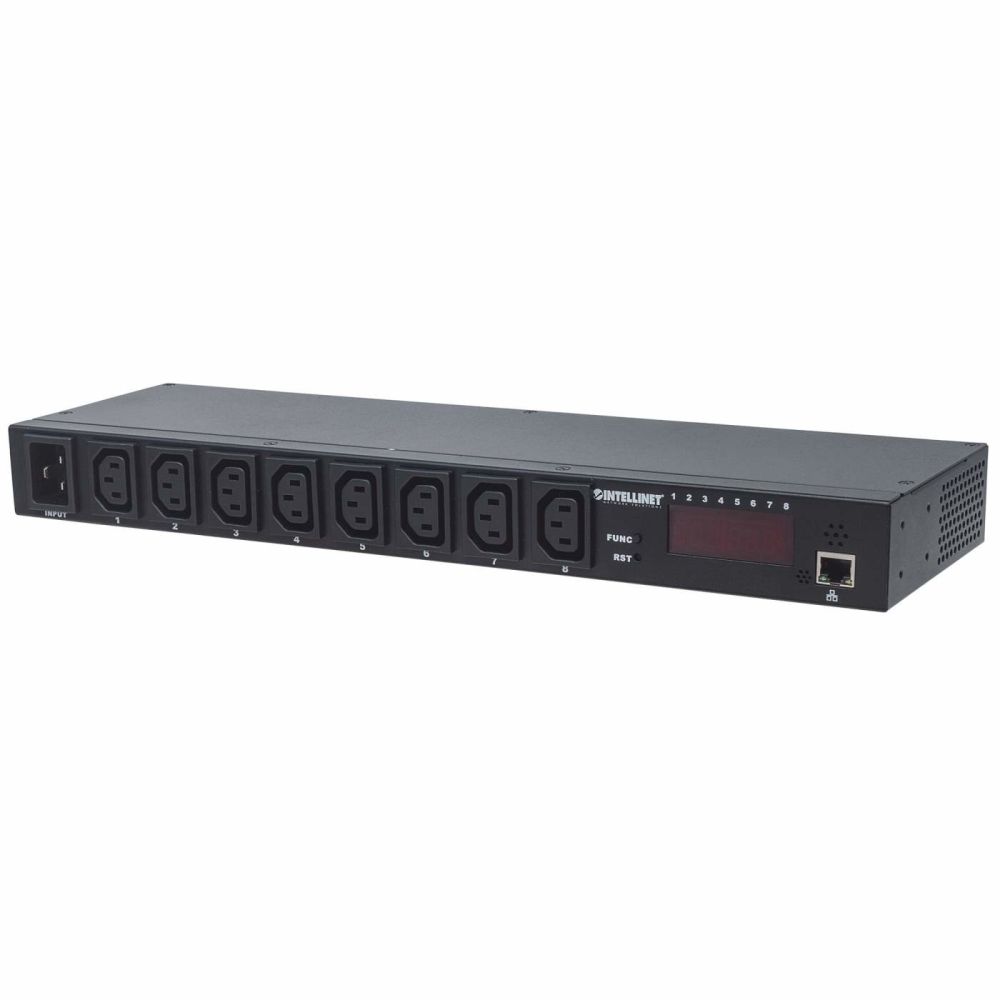

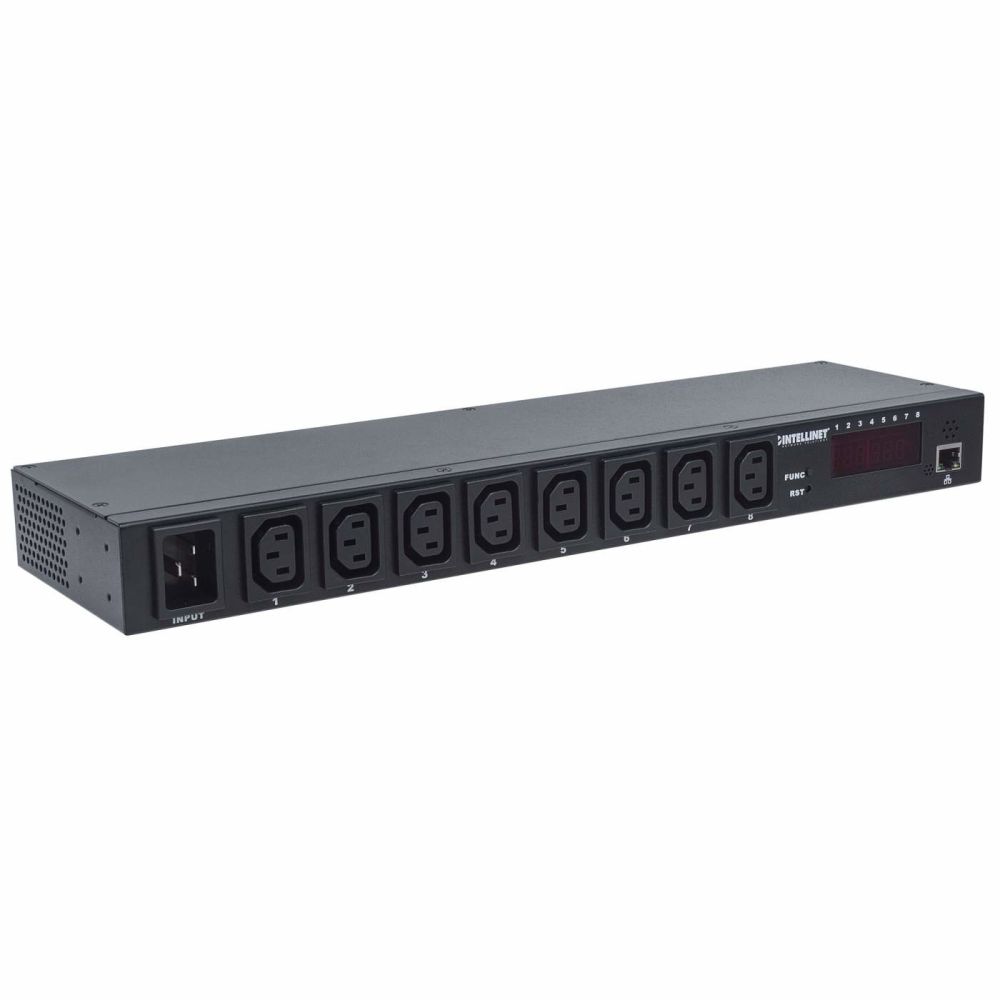

48,3 cm ( 19 inch ) 8-way IP power strip / Smart PDU with C13 power sockets Controls power, temperature and humidity, C20 power input, 1 U
|
202,82 EUR |
|
|
( 241,36 EUR incl. VAT ) ≈ £172.40 | ≈ $227.77 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Lieske Part No.: | 1220574 |
| Mfg Part No: | 163682 |
| UPC/EAN: | 766623163682 |
| Weight: | 1.6 kg |
Product information for Intellinet 163682:
< target= _blank>You can find a demo of the web interface here. - Socket format IEC320 C13 (8 pieces) with 16 A output current
- Shows total power consumption in volts and watts
- Integrated temperature control and humidity sensor controls the environmental conditions
- Embedded technology, supports Java and web browsing
- Adjustable alarm for environmental and overload values
- Socket delay time adjustable to prevent a current peak in the main power supply
- Restart from any port possible via web interface
- LED indicators for the power status of each socket
- Digital display shows the values of current, voltage and IP address or temperature and humidity in real time
- Protection against overvoltage caused by lightning and other voltage peaks

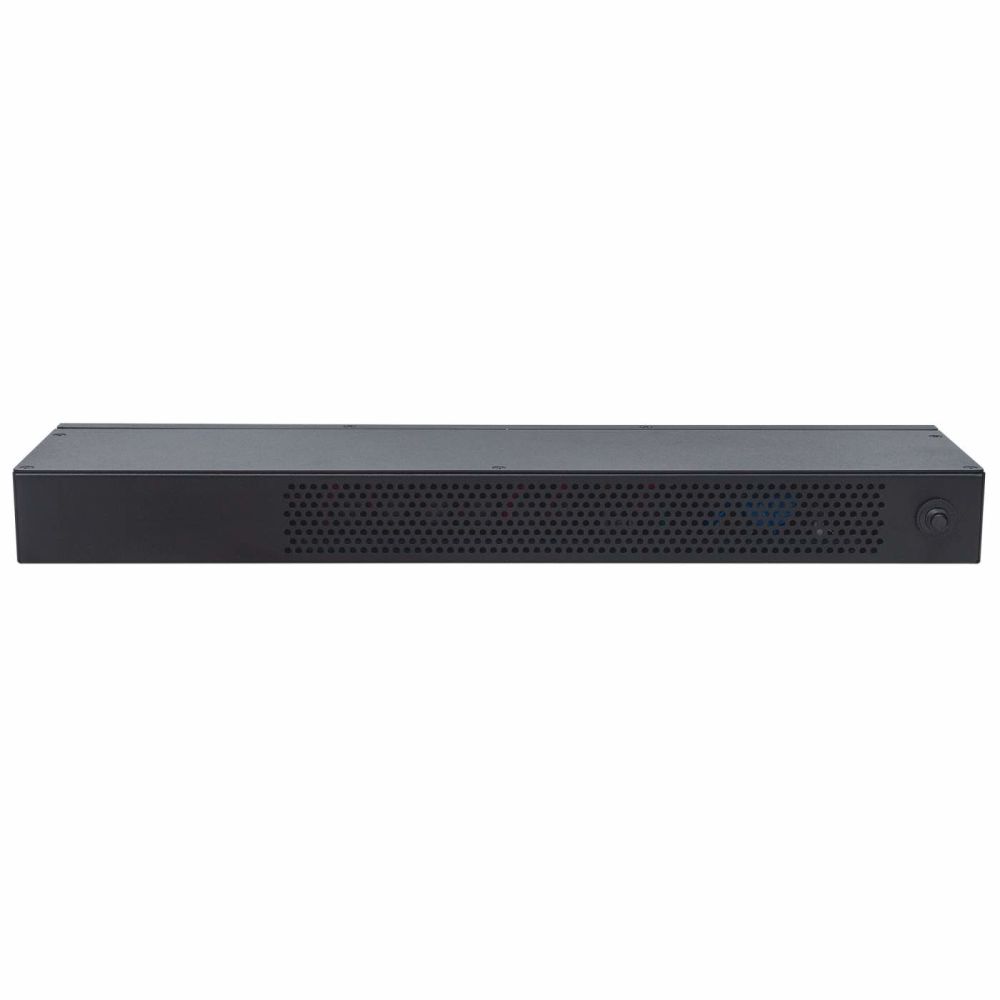

- Fan-free design for quiet operation
- 3 year guarantee Certificates
- FCC
- CE General

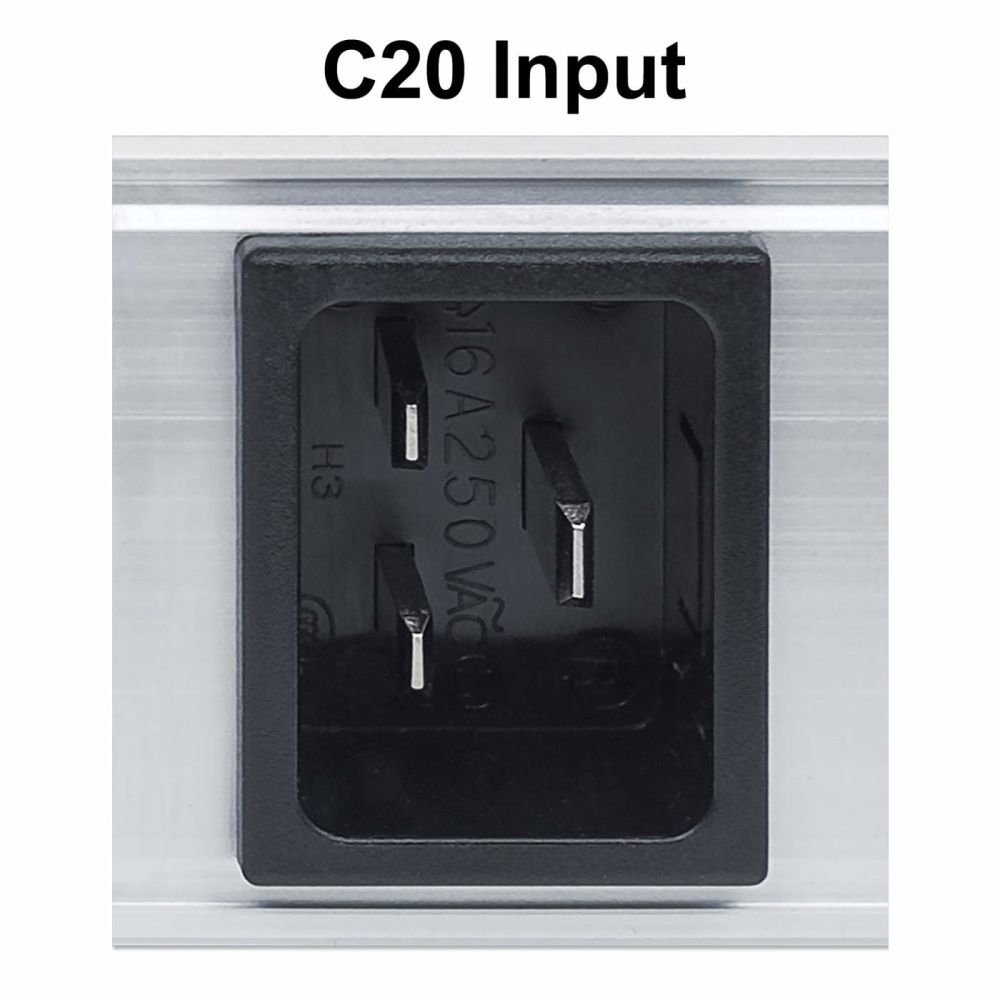

- Power input: 1 x IEC320 C20 cold devices

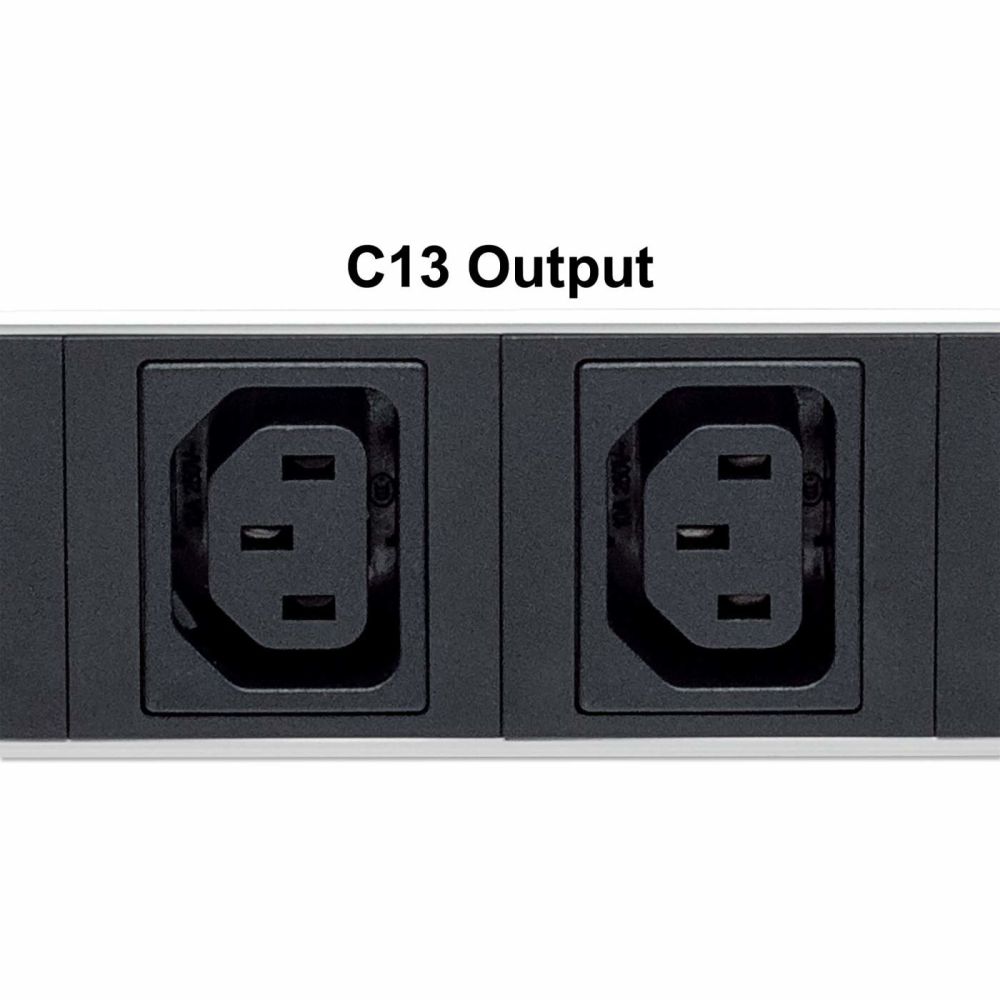

- current output: 8 x IEC320 C13 cold devices
- LAN connection: 1 x RJ45 port Technical details
- Voltage input: 90-240 V 50/60 Hz
- Voltage output: 90-240 V 50/60 Hz
- Voltage measuring range: 90-264 V in 1 V steps
- Current measuring range: 0-20 A in 0.1 A steps
- Internal consumption: 5.0 W
- Temperature measuring range: 0° - 50°C in 1° steps
- Humidity measuring range: 20% - 90% in 1% Levels Physical Details
- Dimensions (D x W x H): 119.5 x 442 x 44.5 mm
- Net weight: 1.6 kg
- Gross weight: 2.38 kg
- Metal housing
- Flammability: Tested and classified according to UL 94 V-0 Scope of delivery:
- 48,3 cm ( 19 inch ) 8-way IP power strip / Smart PDU with C13 power sockets
- 48,3 cm ( 19 inch ) mounting bracket
- Power cable C19 to C20, 2 m Color: Black Product dimensions: 442 (L) x 119 (W) x 44.5 (H) [mm]
| Certificates | |
| Compliance certificates | CE, UL |
| Certification | FCC, CE |
| Design | |
| PDU types | Monitored |
| Housing material | Metal |
| Product colour | Black |
| Features | |
| LED indicators | |
| Management features | |
| Monitoring | Current, Humidity, Temperature, Voltage |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Packaging data | |
| Package height | 2380 mm |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Input connection type | IEC320 C20 |
| Power | |
| Nominal input voltage | 90 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Output voltage | 90 - 240 V |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 119.5 mm |
| Height | 44.5 mm |
| Weight | 1.6 kg |
Questions & answers
What is the delivery time of Intellinet 163682 48,3 cm ( 19 inch ) 8-way IP power strip / Smart PDU with C13 power sockets Controls power, temperature and humidity, C20 power input, 1 U?
The article Intellinet 163682 48,3 cm ( 19 inch ) 8-way IP power strip / Smart PDU with C13 power sockets Controls power, temperature and humidity, C20 power input, 1 U is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 163682 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Intellinet 163682 48,3 cm ( 19 inch ) 8-way IP power strip / Smart PDU with C13 power sockets Controls power, temperature and humidity, C20 power input, 1 U always at the best possible price. We can give you a discount of 2% on Intellinet 163682 48,3 cm ( 19 inch ) 8-way IP power strip / Smart PDU with C13 power sockets Controls power, temperature and humidity, C20 power input, 1 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
