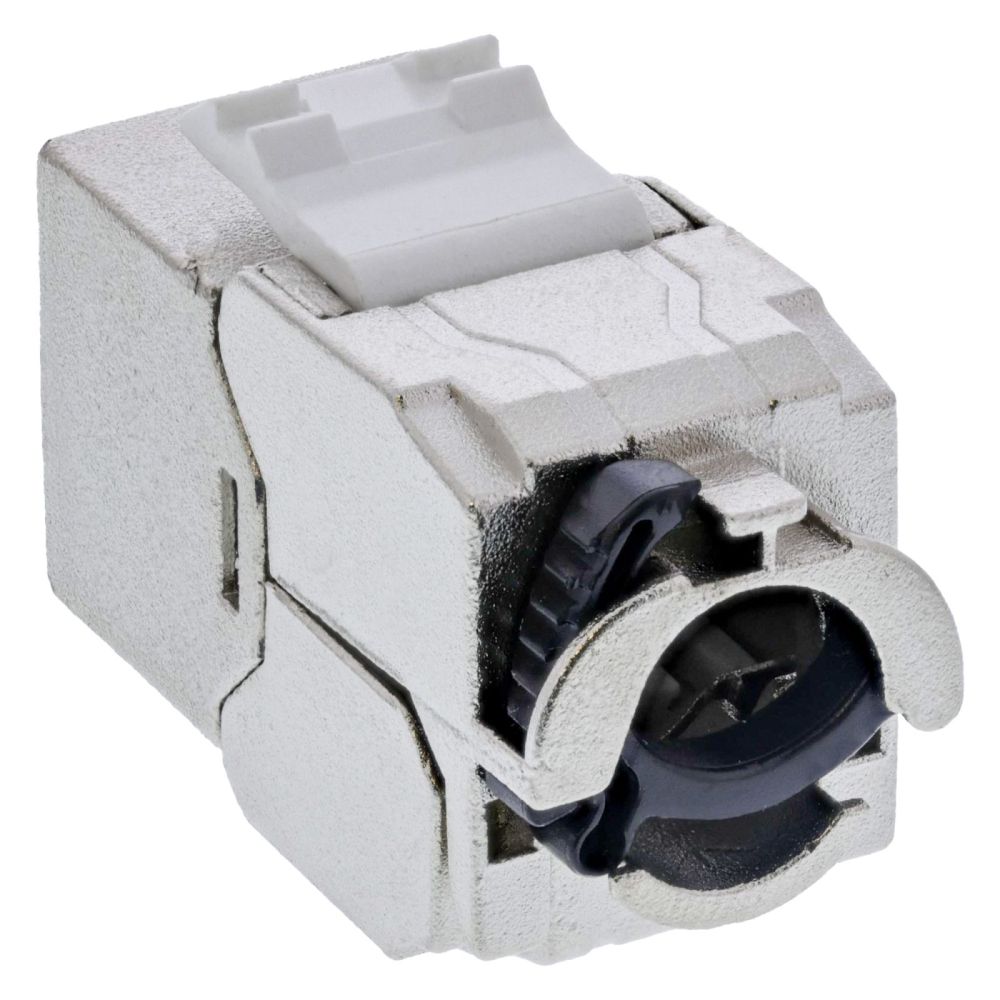

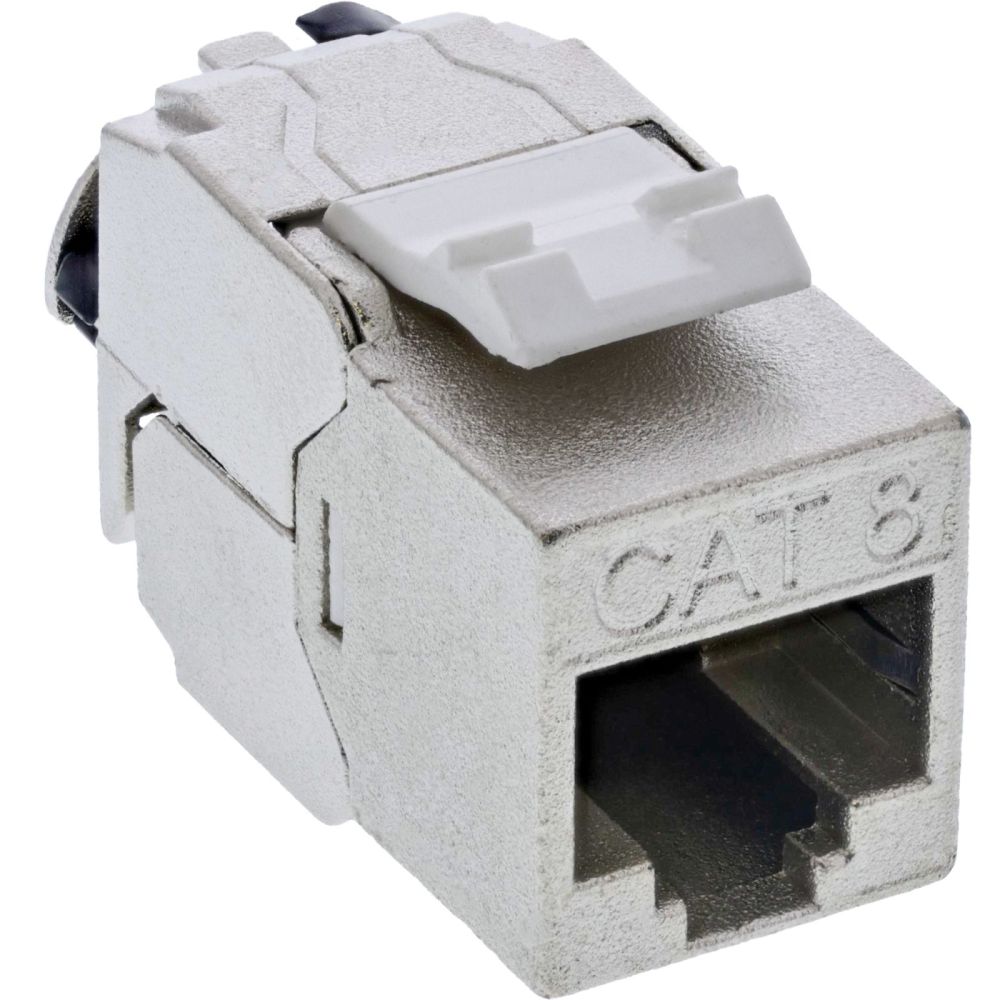

24 bulk pack InLine® Keystone RJ45 jack slim, Cat.8.1, integrated cable tie content_copy

Efficient series installation with Cat.8.1 keystone modulesFast installation in panels and outlet boxes: SNAP-In mechanism latches quickly and saves installation time.
High performance up to 10 Gb/s: Cat.8.1 at 2000 MHz for modern network links.
Low-interference connection: Fully shielded die-cast housing reliably protects against interference.

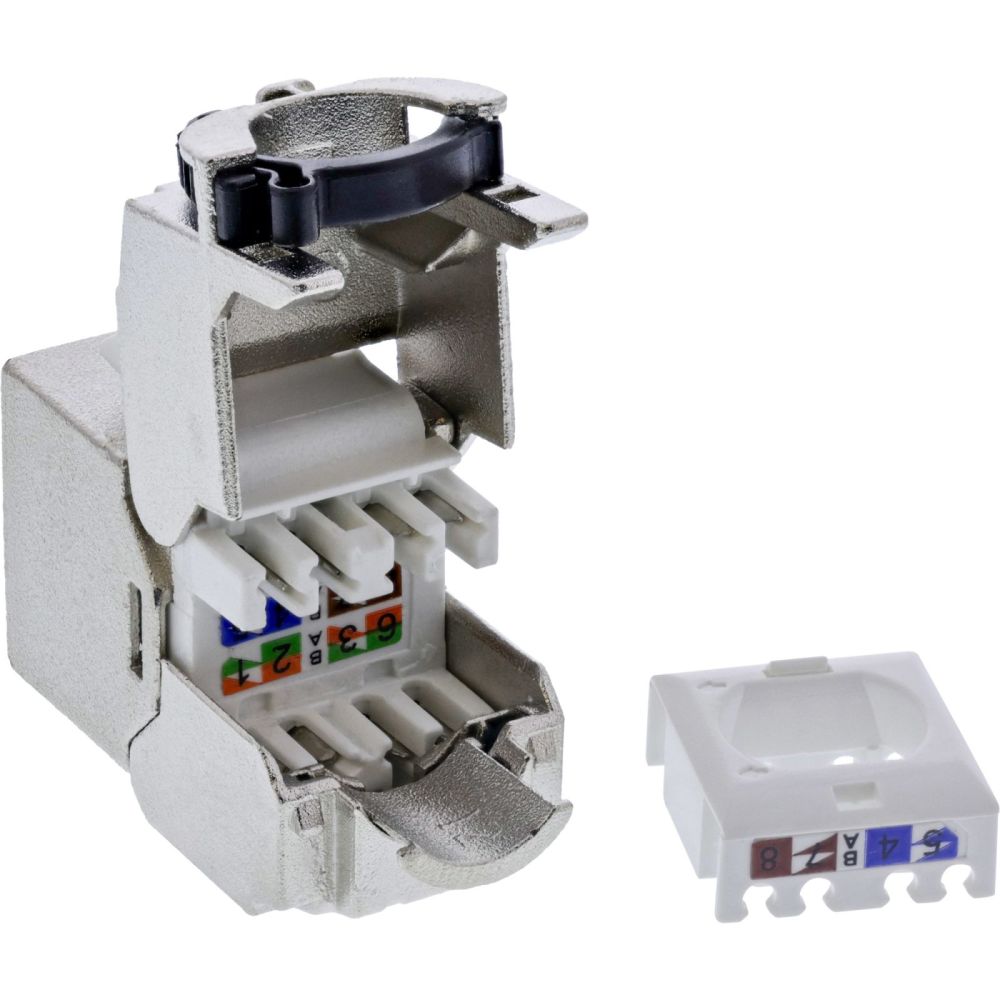

Termination made easy: LSA strip and integrated cable clip simplify installation and strain relief.

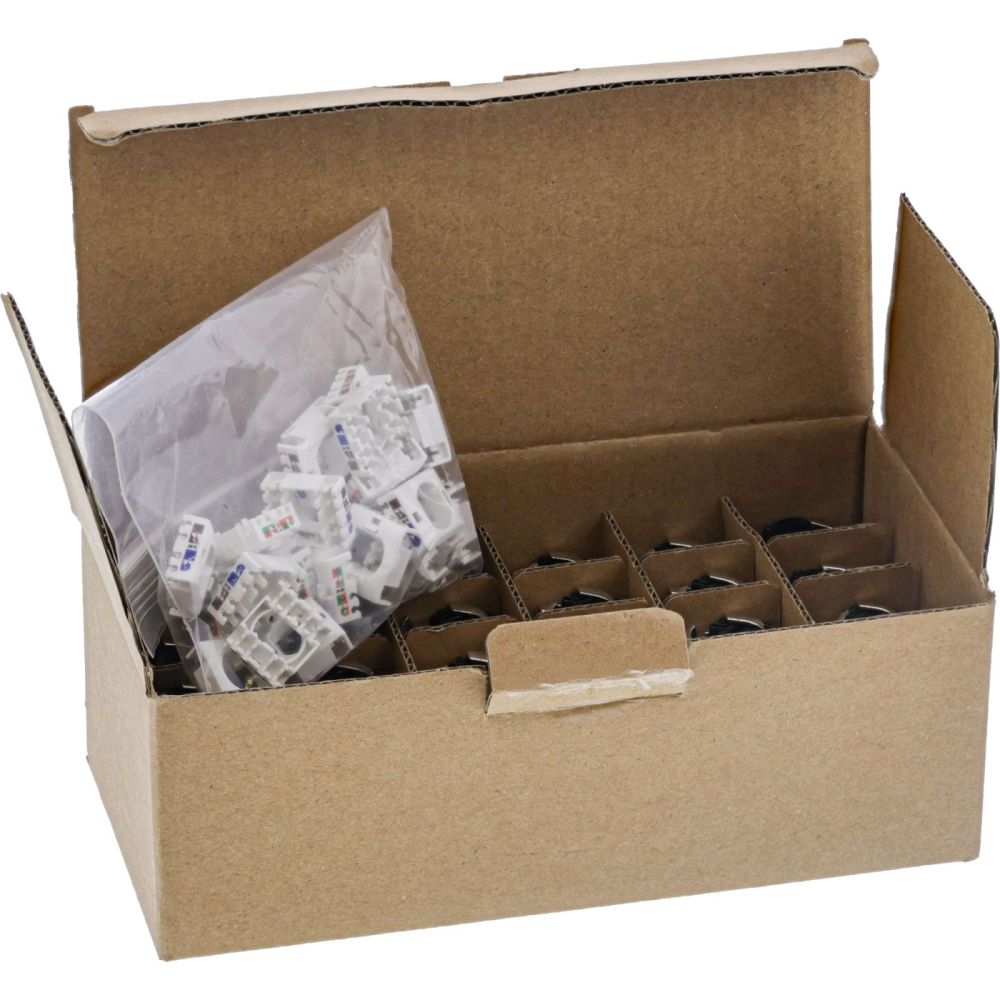

Less packaging, more speed: 24-piece bulk pack speeds up removal for series installations.
This slim keystone RJ45 module enables structured, high-performance network connections with up to 10 Gb/s. The combination of Cat.8.1 specification, full shielding, and robust die-cast housing delivers stable signals reliably. SNAP-In simplifies installation, while the LSA strip and integrated cable clip make terminating installation cables efficient. The 24-piece bulk pack reduces packaging effort and supports fast workflows.
Especially in professional IT environments, for on-site installations and in service deployments, the module provides clean, reproducible results. In patch panels and outlet boxes of existing infrastructures in companies and public institutions, you benefit from fast handling, PoE/PoE+ capability, and durable connections.
Connection: RJ45 socket (Keystone SNAP-In)
Standard: Cat.8.1
Frequency: 2000 MHz
Data rate: up to 10 Gb/s
Shielding: fully shielded
Housing: die-cast
Connection technology: LSA strip
Mounting: 19 inch blank panels and outlet boxes
Cable type: solid installation cables AWG 22-26
Cable diameter: 6.0-8.5 mm
Mating cycles: 750
PoE support: PoE, PoE+
Dimensions: 14.5 x 31.8 x 19.4 mm
Cutout height: 16 mm
Package unit: 24 pieces (bulk pack)

Features
Construction type	Flat
Product colour	Grey
Connector 1	RJ-45
AWG wire size	22/26
Cable types supported	Cat8.1
Frequency	2000 MHz
Power over Ethernet (PoE)
Packaging content
Quantity per pack	24 pc(s)
Packaging data
Package volume	700 cm³
Package width	73 mm
Package depth	150 mm
Package height	55 mm
Package weight	428 g
Technical data
Weight	0.428kg
Length packaging	0.150m
Max. supported power	90W
PU	24
Net weight	0.015kg
Width packaging	0.073m
Max. supported PoE standard	802.3bt
Connection A	RJ45 female
PoE+	PoE+
Article height	1.60cm
Packaging volume	0.0007m³
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Type	Keystone
Storage temperature	-40 to +70°C
Article width	2.20cm
Network category	Cat.8.1
Operation temperature	-10 to +60°C
Max. supported data transfer rate	40Gb/s
Connection B	LSA clamp
Height packaging	0.055m
Type of packaging	Bulk
Article length	3.30cm
Keystone SNAP-In compatible
Shielding
Weight & dimensions
Width	22 mm
Depth	33 mm
Height	16 mm
Weight	15 g

---
