InLine® RJ45 plug to push-in terminal, 8-pin, Cat.5e, 15cm cable content_copy

Push-in terminal for quick wiring: Single wires (18–26 AWG) can be quickly plugged in—all you need to remove them is a flat-head screwdriver ≤ 2.5 mm.
Cat.5e RJ45 plug with fixed 15 cm connection cable: Shielded RJ45 plug (8P8C) with permanently integrated, flexible Cat.5e cable for direct connection to network components – ideal for confined spaces.
Space-saving cable solution for flexible integration: The short, flexible cable decouples the connector and terminal – facilitating routing in flat enclosures, racks, or densely populated test setups.
Versatile industrial use: For temporary network connections, diagnostics, control technology, embedded systems, and prototyping – particularly suitable for frequent wire changes.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even in continuous industrial operation.

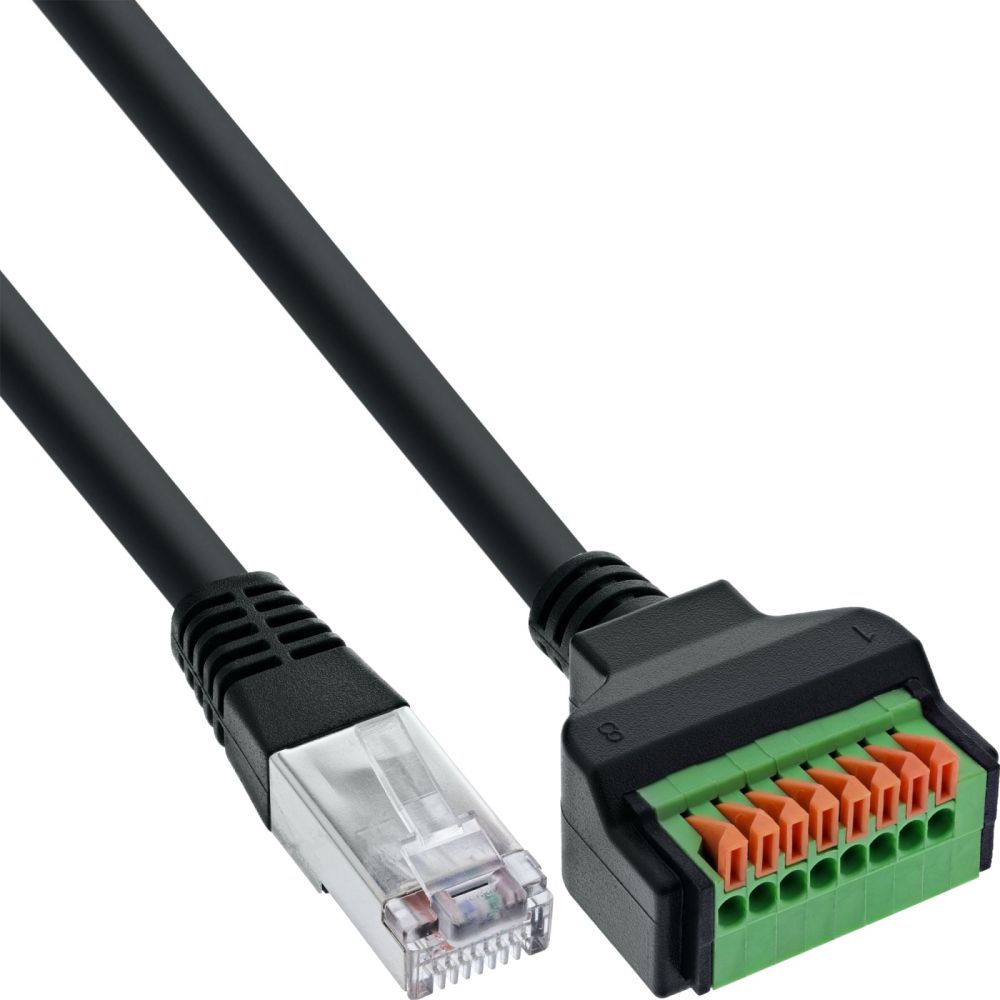

The InLine® RJ45 terminal block adapter with permanently integrated 15 cm cable and 8-pin push-in terminal connects structured Ethernet signals (Cat.5e) with open wire ends – without soldering or screws. The shielded RJ45 connector (8P8C) is connected directly to the push-in terminal via a robust cable.
The push-in technology allows tool-free connection of wires in the 18–26 AWG range. If necessary, the connection can be loosened using the color-coded buttons with a flat-head screwdriver ≤ 2.5 mm – ideal for frequent rewiring in test or prototype environments.
With a cable length of approx. 15 cm and an outer diameter of approx. 6 mm (shielded round cable), the adapter is ideal for compact installations in test equipment, control cabinets, or mobile test systems. Its shielded design and tested quality (short-circuit and wiring test) make it a robust solution for industrial networks and embedded applications.
RJ45 interface: Cat.5e, 8P8C connector (shielded)
Cable length: 15 cm (Cat.5e, shielded, 4×2 wires, 24 AWG, flexible)
Terminal system: Push-in terminal (spring force technology)
Number of poles: 8 signals (1:1 connected)
Connection range: 18–26 AWG (solid or stranded conductor with ferrule)
Actuation: Release with flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Dimensions without cable: approx. 43 × 33 × 20 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	RJ45 Cat.5e 8P8C / Terminal block, 8-pin
Connector gender	Male/Female
Connector form factor	Straight
Product colour	Black
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	15 mm
Package weight	29 g
Package volume	100 cm³

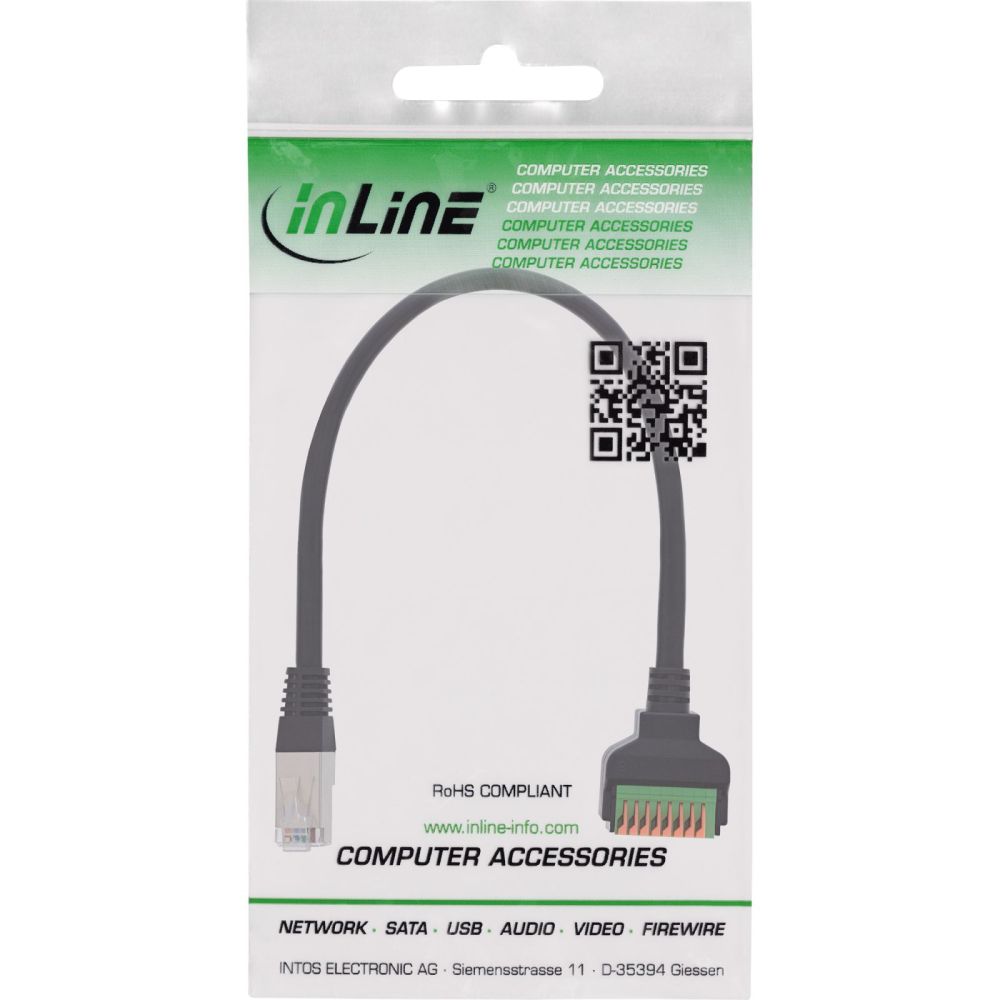

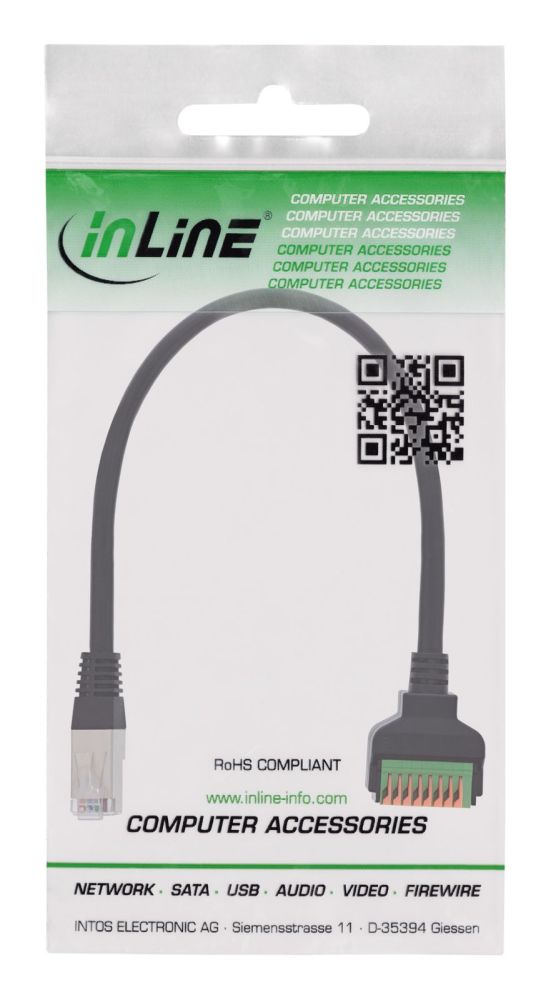

Package type	Polybag
Technical data
Height packaging	0.015m
Net weight	0.026kg
Side A	RJ45 plug
Width packaging	0.100m
Article height	2.00cm
Packaging volume	0.0001m³
Variant	With cabel
Weight	0.029kg
Length packaging	0.165m
Article width	2.80cm
Article length	28.40cm
Weight & dimensions
Dimensions (WxDxH)	28 x 284 x 20 mm
Weight	26 g
Cable length	0.15 m
Width	28 mm
Depth	284 mm
Height	20 mm

---
