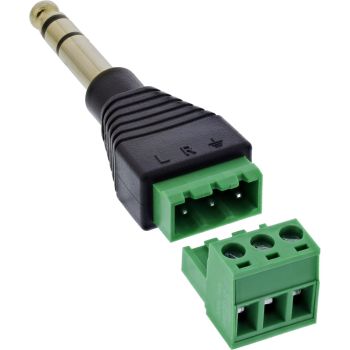

InLine® 6.35mm jack plug to terminal block, stereo, 3-pin content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Precise contacting of audio signals: 3-pin 6.35 mm jack plug (TRS) with clearly assigned terminals (L, R, +) – ideal for professional audio or control cables in prototyping, measurements, or control engineering.
Side terminal strip for space-saving installation: Adjacent terminals in a 5.0 mm grid allow for compact integration – e.g., in audio distributors, test boxes, or signal converters.
Versatile use in industry: For analog signal wiring in laboratories, control modules, audio interfaces, or multimedia applications with 6.35 mm interfaces.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of up to 1 A per pin ensure reliable signal transmission – even in continuous operation.
The InLine® 6.35 mm TRS jack plug (stereo, 3-pin) on terminal block offers a solderless solution for connecting analog audio signals – e.g. in control lines, test setups, or prototypes. The screw terminals with pressure plate are aligned laterally and enable fast, tool-assisted wiring in the 18–26 AWG range.
The terminal assignment is clearly marked: L (left), R (right), + (common ground/shielding). The compact design is also suitable for applications with limited space, such as in rack systems, distributors, or mobile test fields. The EVA insulation layer on the underside provides protection when mounted on a conductive surface.
Jack connection: 6.35 mm TRS jack plug (3-pin, stereo)
Number of poles / terminal assignment: 3 terminals / L, R, +
Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1.0 A per pin
Max. operating voltage: 70 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Max. conductor resistance: 5 ohms
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	6.35 mm 3-pin jack TRS / Terminal block 3 terminals
Connector gender	Male/Female
Connector form factor	Straight
Product colour	Black, Green
AWG wire size	26/16
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	70 V
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	135 mm
Package height	20 mm
Package weight	18 g
Package volume	100 cm³
Package type	Polybag
Technical data
Weight	0.018kg
Length packaging	0.135m
Article width	2.10cm
Width packaging	0.070m
Variant	Stereo
Article length	8.00cm
Height packaging	0.020m
Packaging volume	0.0001m³
Side A	6.3mm 3-pin jack plug
Net weight	0.016kg
Article height	1.60cm
Weight & dimensions
Dimensions (WxDxH)	21 x 80 x 16 mm
Weight	16 g
Width	21 mm
Depth	80 mm
Height	16 mm

---
