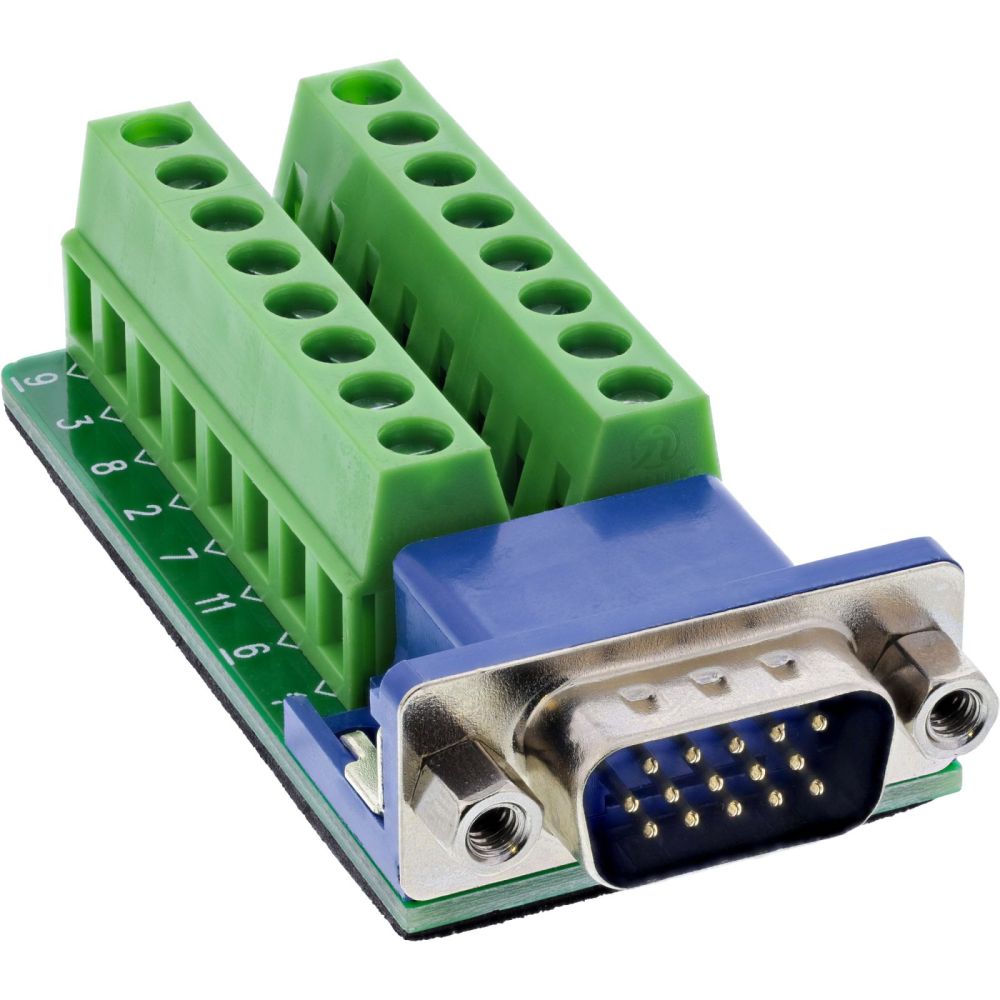

InLine® Terminal block, VGA (HD15), plug, 2-row, screw terminal content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The VGA connector (HD15) is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets – vibration-proof and durable.
Versatile industrial applications: Ideal for analog video signals, control lines, or prototyping in test setups, machines, or visualization systems.
Compact design: With a width of only 63.8 mm, the terminal block can be integrated into existing systems in a space-saving manner – even where space is limited.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

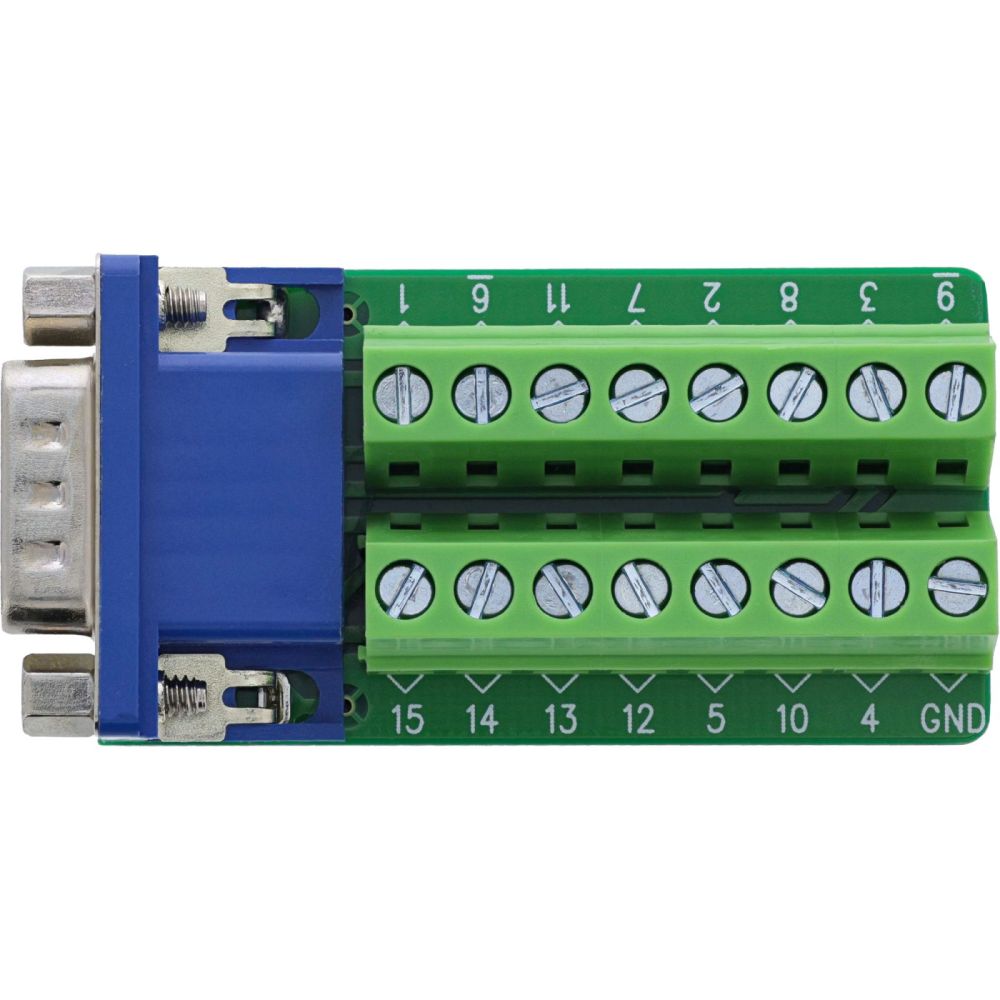

The InLine® VGA (HD15) terminal block with connector in a 2-row design is ideal for wiring analog signals, e.g., for visualization, control, or service applications. Individual wires in the 18–26 AWG range can be securely connected using screw terminals with pressure plates – without any soldering. Wiring is tool-assisted with a flat-blade screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a reliable mechanical connection to the opposite end – even with frequent actuation or vibration. The compact design allows space-saving integration into housings, test environments, or control systems. An EVA insulating layer provides additional protection when mounting on conductive surfaces.
VGA interface: HD15, connector, 2-row
Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 63.8 × 31 × 18 mm (L × W × H)

Certificates
Compliance certificates	TÜV mark, RoHS
Features
Connector(s)	Terminal block, VGA (HD15)
Connector gender	Male
Connector form factor	Straight/Angled
Product colour	Blue, Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	16 mm
Package weight	36 g
Package volume	100 cm³

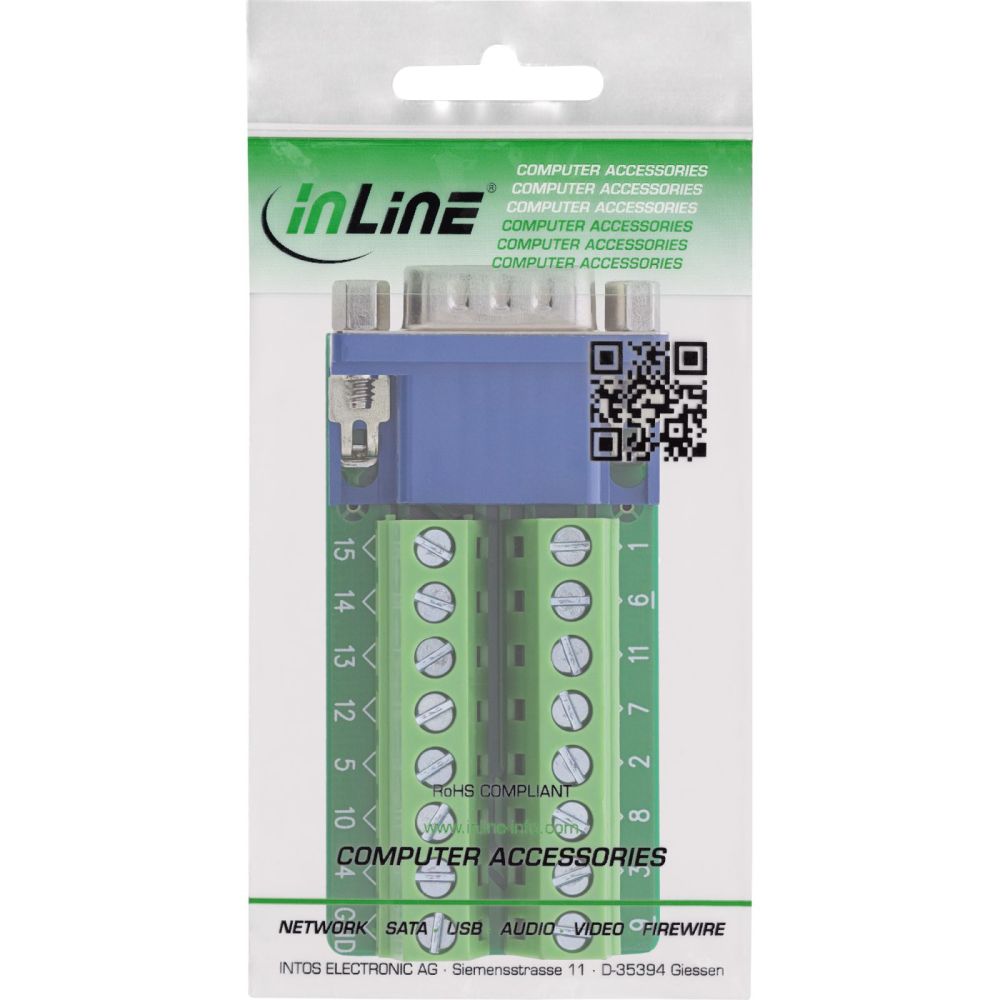

Package type	Polybag
Technical data
Width packaging	0.100m
Article height	1.80cm
Article length	6.40cm
Net weight	0.033kg
Length packaging	0.165m
Article width	3.10cm
Weight	0.036kg
Height packaging	0.016m
Packaging volume	0.0001m³
Side A	VGA (HD15) - plug
Weight & dimensions
Dimensions (WxDxH)	31 x 64 x 18 mm
Weight	33 g
Width	31 mm
Depth	64 mm
Height	18 mm

---
