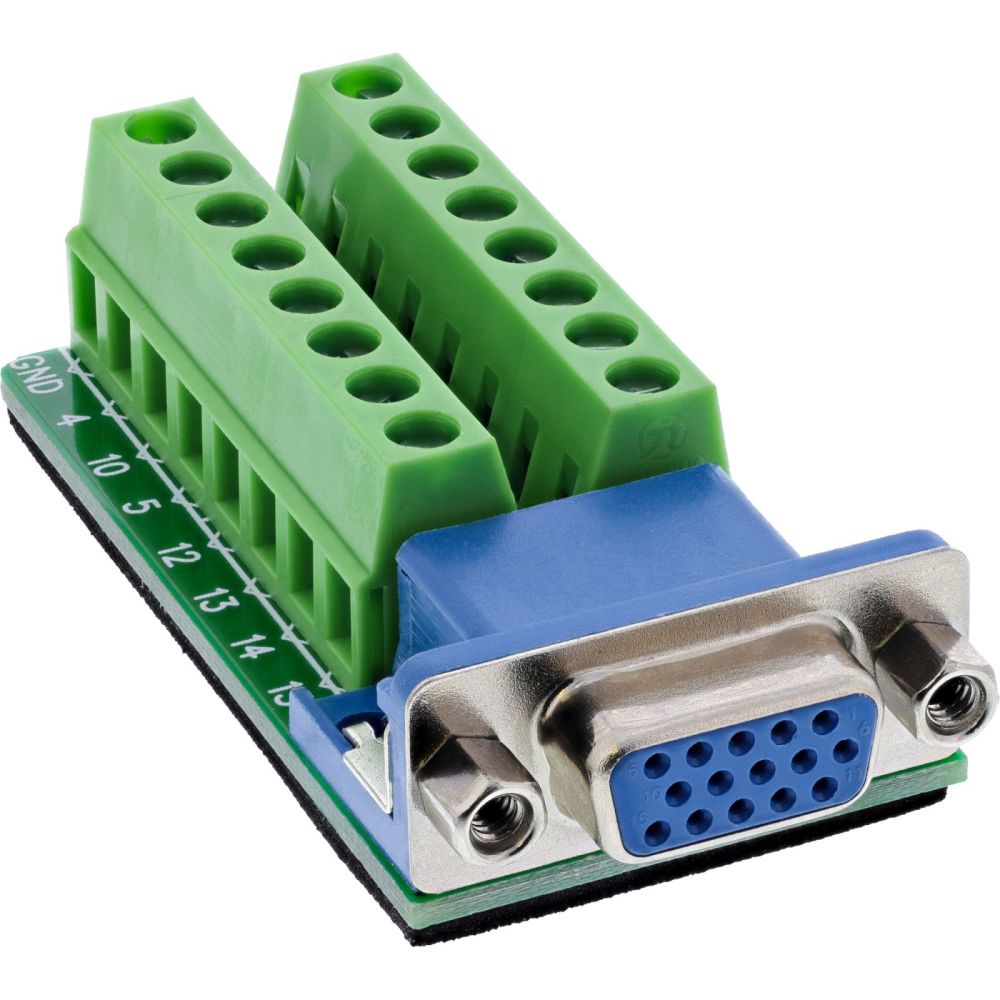

InLine® Terminal block, VGA (HD15), socket, 2-row, screw terminal content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The VGA socket (HD15) is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching connectors – vibration-proof and durable.
Versatile industrial applications: Ideal for signal transmission in visualization, test setups, laboratory applications, control systems, and prototyping.
Compact design: With a width of only 63.8 mm, the terminal block can be integrated into existing systems in a space-saving manner – even where space is limited.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

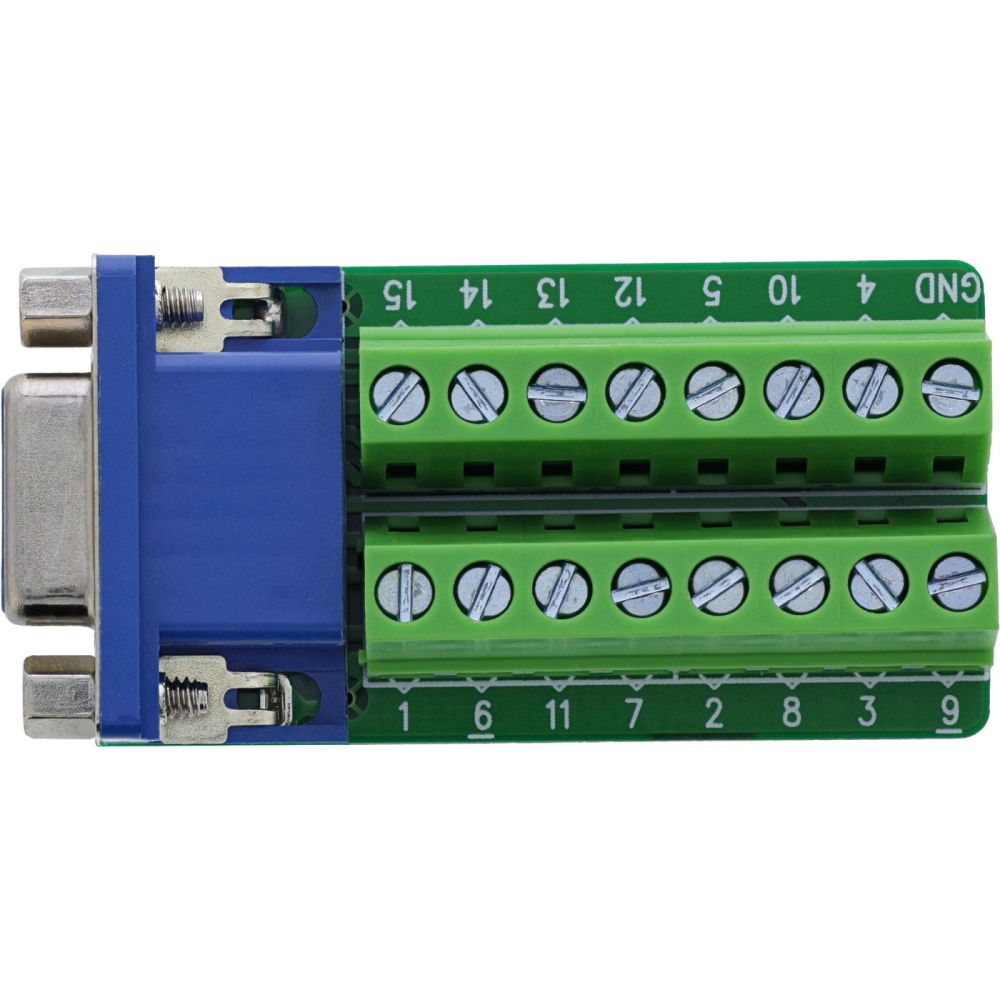

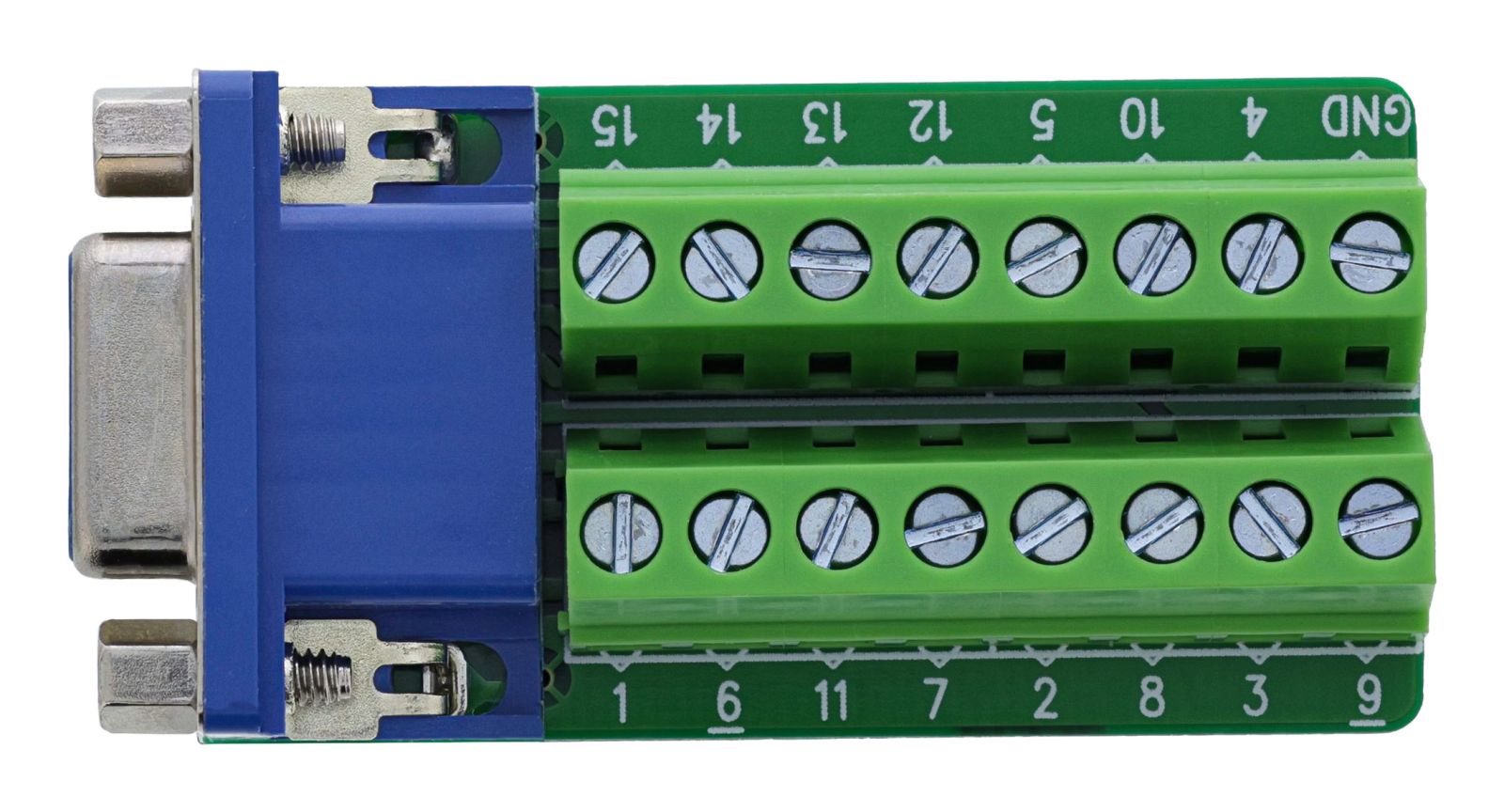

The InLine® VGA (HD15) terminal block with socket in a 2-row design offers a practical solution for open wiring of analog image or control signals – e.g., in test benches, laboratory applications, or prototyping. The screw terminals with pressure plate allow the connection of single wires in the range of 18–26 AWG without soldering or special tools. Actuation is tool-assisted with a flat-blade screwdriver ≤ 2.5 mm.
The VGA socket is equipped with an integrated mounting thread (UNC #4-40), which ensures a secure mechanical connection to matching connectors – even in the event of vibration or frequent movement. The compact design with a length of only 63.8 mm allows for space-saving integration, e.g., in housings or test setups. An EVA insulating layer provides additional protection when mounting on conductive surfaces.
VGA interface: HD15, female connector, 2 rows
Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 63.8 × 31 × 18 mm (L × W × H)

Certificates
Compliance certificates	TÜV mark, RoHS
Features
Connector(s)	Terminal block, VGA (HD15)
Connector gender	Female
Connector form factor	Straight/Angled
Product colour	Blue, Green
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.7 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	16 mm
Package weight	37 g
Package volume	100 cm³

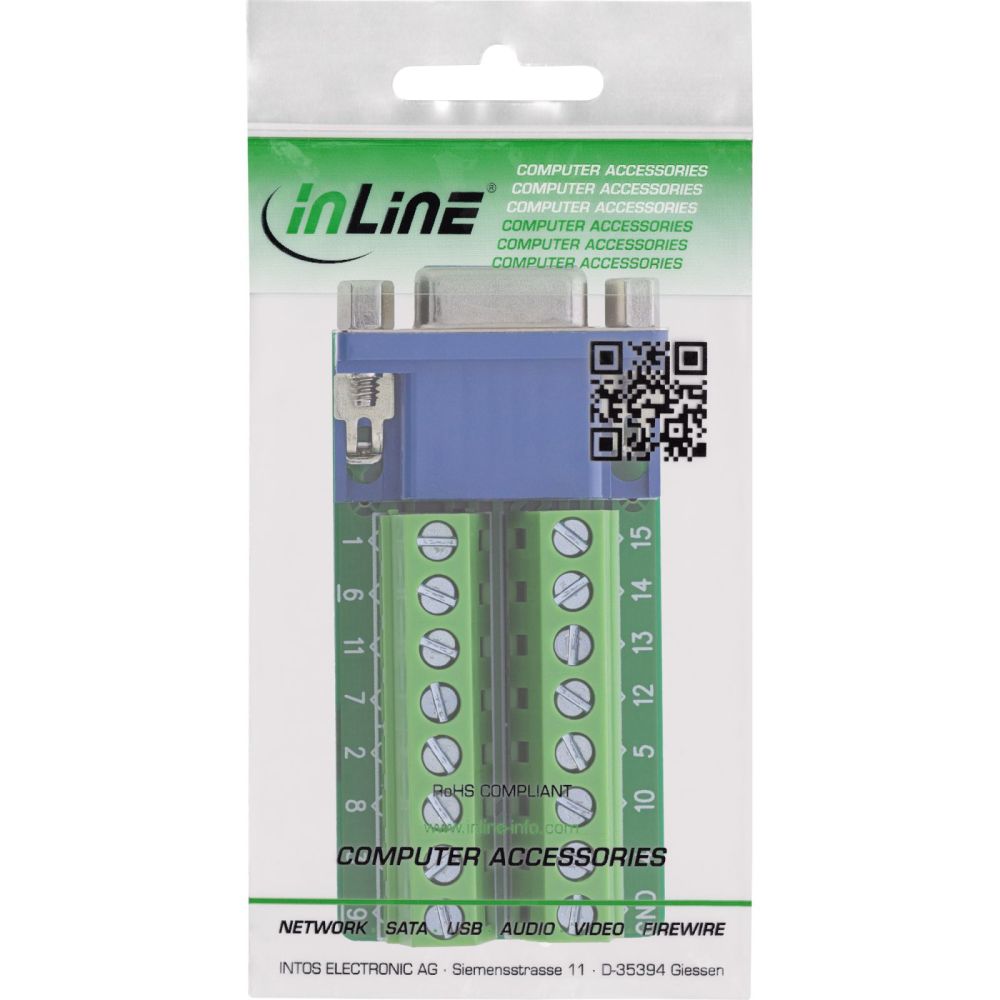

Package type	Polybag
Technical data
Net weight	0.034kg
Height packaging	0.016m
Packaging volume	0.0001m³
Side A	VGA (HD15) - socket
Article length	6.40cm
Weight	0.037kg
Width packaging	0.100m
Article height	1.80cm
Length packaging	0.165m
Article width	3.10cm
Weight & dimensions
Dimensions (WxDxH)	31 x 64 x 18 mm
Weight	34 g
Width	31 mm
Depth	64 mm
Height	18 mm

---
