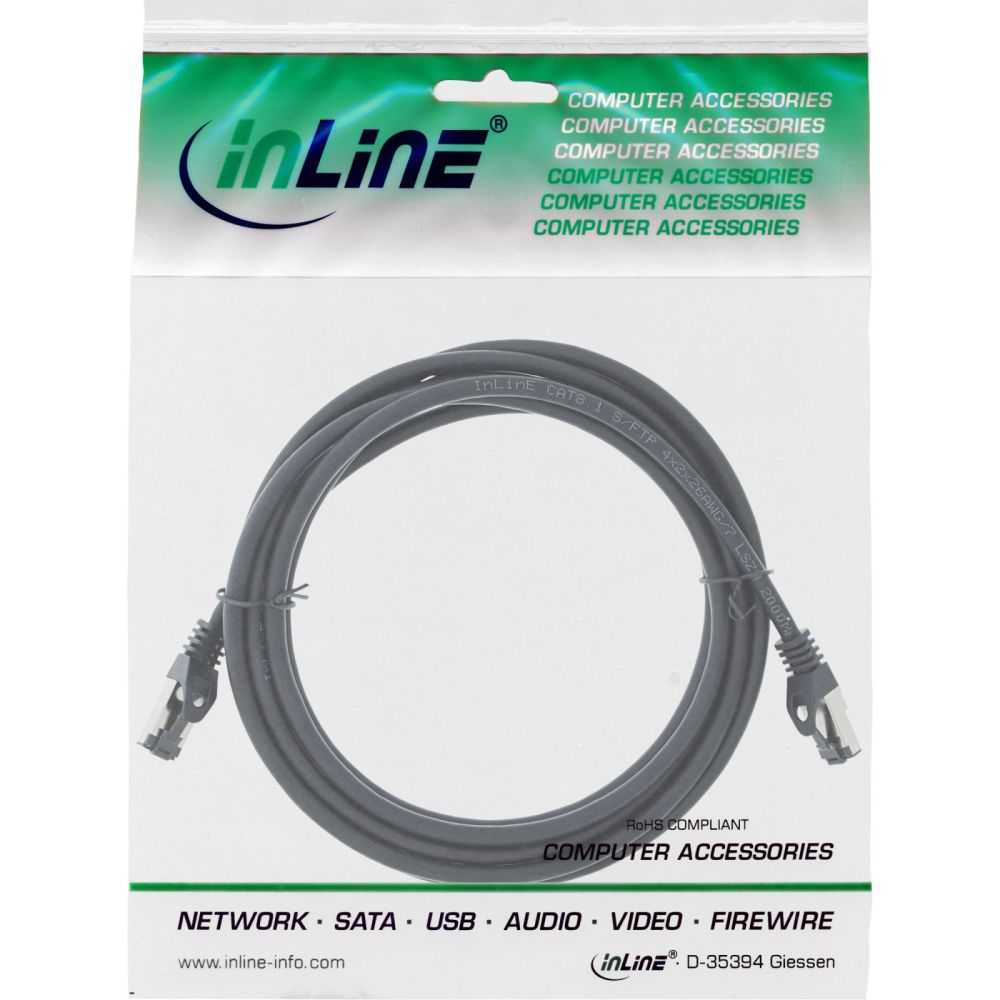

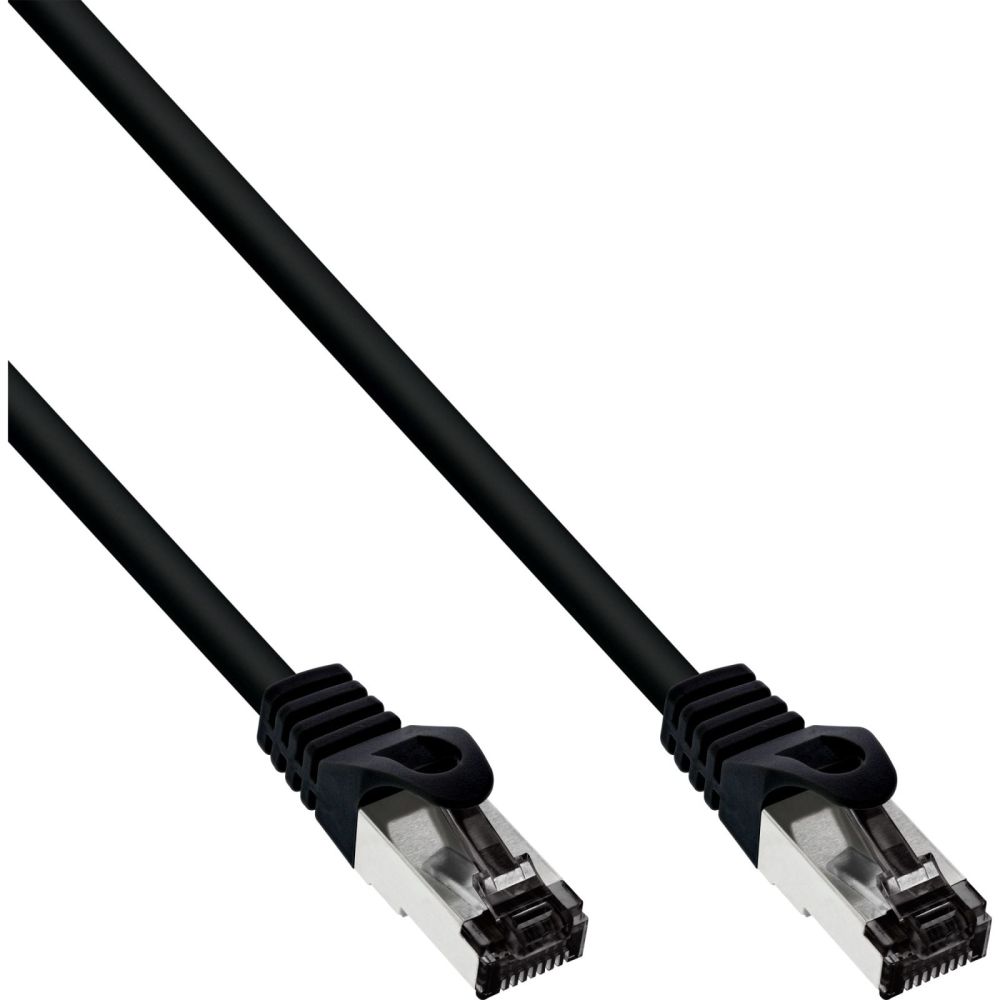

InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 2m
|
5,26 EUR |
|||||||||||
|
( 6,26 EUR incl. VAT ) ≈ £4.40 | ≈ $5.89 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| End-Of-Life: | 26. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1528000 | ||||||||||
| Mfg Part No: | 78802S | ||||||||||
| UPC/EAN: | 4043718285501 | ||||||||||
| Weight: | 0.085 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 78802S:
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: TIA/EIA568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
| Certificates | |
| Certification | EIA/TIA 568-C |
| Features | |
| Product colour | Black |
| Cable length | 2 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| AWG wire size | 26 |
| Data transfer rate | 40000 Mbit/s |
| Frequency | 2000 MHz |
| Plug and Play | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 13 x 2000 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 16 mm |
| Package weight | 85 g |
| Package volume | 500 cm³ |
| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Type | Cat.8.1 |
| Length packaging | 0.160m |
| Max. supported power | 90W |
| Diameter | AWG 26 |
| Conductor material | CU (copper) |
| Width packaging | 0.160m |
| Article width | 1.30cm |
| Storage temperature | -20 to +70°C |
| Patch cable category | Cat.8.1 |
| Data transmission rate | 40Gb/s |
| Assignment | 1:1 |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 40Gb/s |
| Design | Round cable |
| Height packaging | 0.016m |
| Side B | RJ45 plug straight |
| Net weight | 0.077kg |
| Packaging volume | 0.0005m³ |
| Article length | 200.00cm |
| Weight | 0.085kg |
| Article height | 1.50cm |
| Shielding | S/FTP (PiMf) |
| Side A | RJ45 plug straight |
| Colour | Black |
| Sheath | Halogen-free (LSZH) |
| Wire pairs used for power transmission | All |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Signal | Network |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 2000 mm |
| Height | 15 mm |
| Weight | 77 g |
