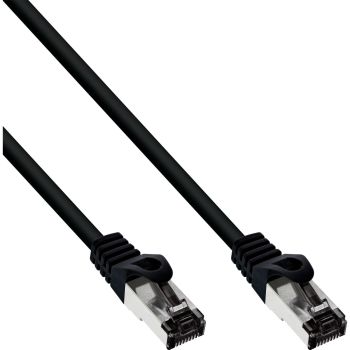

InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 1m
|
3,33 EUR |
|||||||||||
|
( 3,96 EUR incl. VAT ) ≈ £2.79 | ≈ $3.73 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| End-Of-Life: | 26. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1527998 | ||||||||||
| Mfg Part No: | 78801S | ||||||||||
| UPC/EAN: | 4043718285488 | ||||||||||
| Weight: | 0.048 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 78801S:
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: TIA/EIA568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
| Certificates | |
| Certification | EIA/TIA 568-C |
| Features | |
| Product colour | Black |
| Cable length | 1 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| AWG wire size | 26 |
| Data transfer rate | 40000 Mbit/s |
| Frequency | 2000 MHz |
| Plug and Play | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 13 x 1000 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 135 mm |
| Package depth | 135 mm |
| Package height | 14 mm |
| Package weight | 48 g |
| Package volume | 300 cm³ |
| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Sheath | Halogen-free (LSZH) |
| Wire pairs used for power transmission | All |
| Design | Round cable |
| Type | Cat.8.1 |
| Length packaging | 0.135m |
| Max. supported power | 90W |
| Patch cable category | Cat.8.1 |
| Data transmission rate | 40Gb/s |
| Article height | 1.50cm |
| Conductor material | CU (copper) |
| Operation temperature | -10 to +60°C |
| Article width | 1.30cm |
| Shielding | S/FTP (PiMf) |
| Packaging volume | 0.0003m³ |
| Article length | 100.00cm |
| Weight | 0.048kg |
| Assignment | 1:1 |
| Width packaging | 0.135m |
| Max. supported data transfer rate | 40Gb/s |
| Storage temperature | -20 to +70°C |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Side A | RJ45 plug straight |
| Colour | Black |
| Height packaging | 0.014m |
| Side B | RJ45 plug straight |
| Net weight | 0.043kg |
| Signal | Network |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 1000 mm |
| Height | 15 mm |
| Weight | 43 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 1m?
The article InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 1m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 78801S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 1m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 1m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 1m we can offer you a price of 3,31 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
