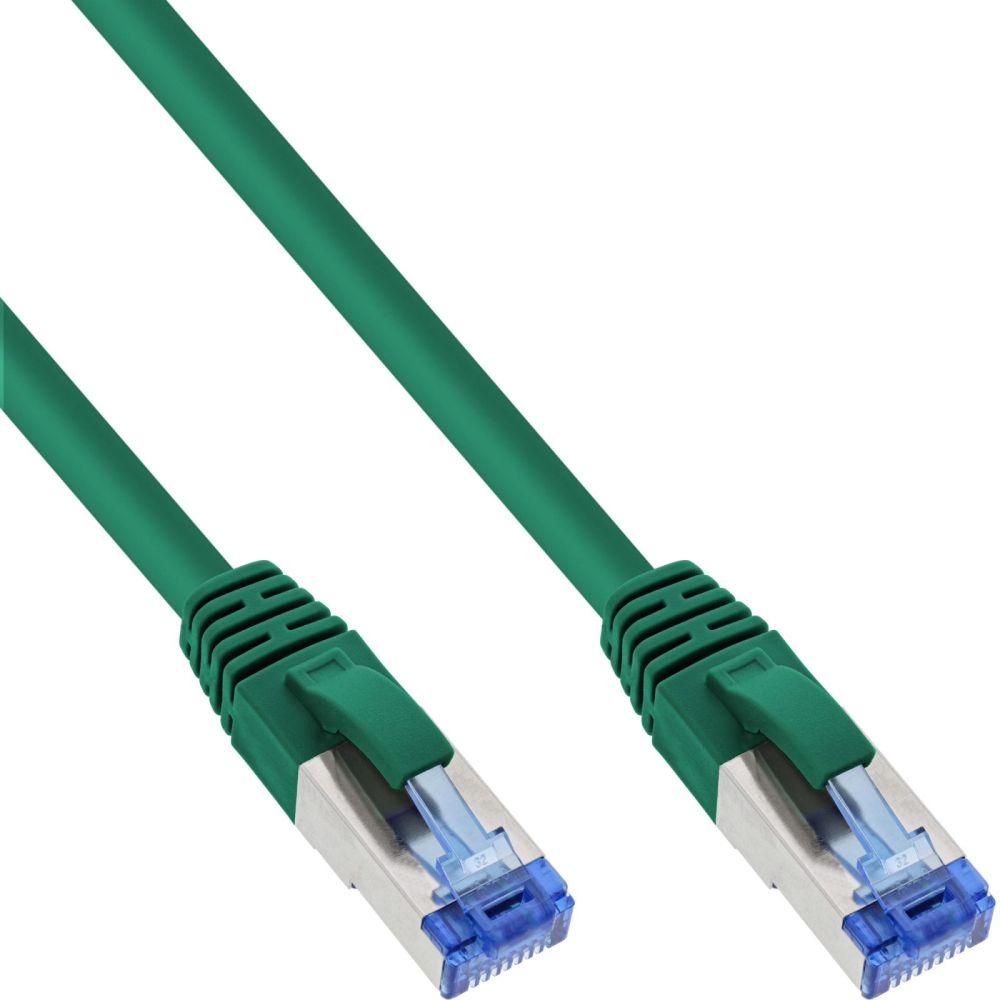

InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 10m
|
9,25 EUR |
|
|
( 11,01 EUR incl. VAT ) ≈ £7.74 | ≈ $10.35 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196488 |
| Mfg Part No: | 76800G |
| UPC/EAN: | 4043718088706 |
| Weight: | 0.356 kg |
Product information for Inline 76800G:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications

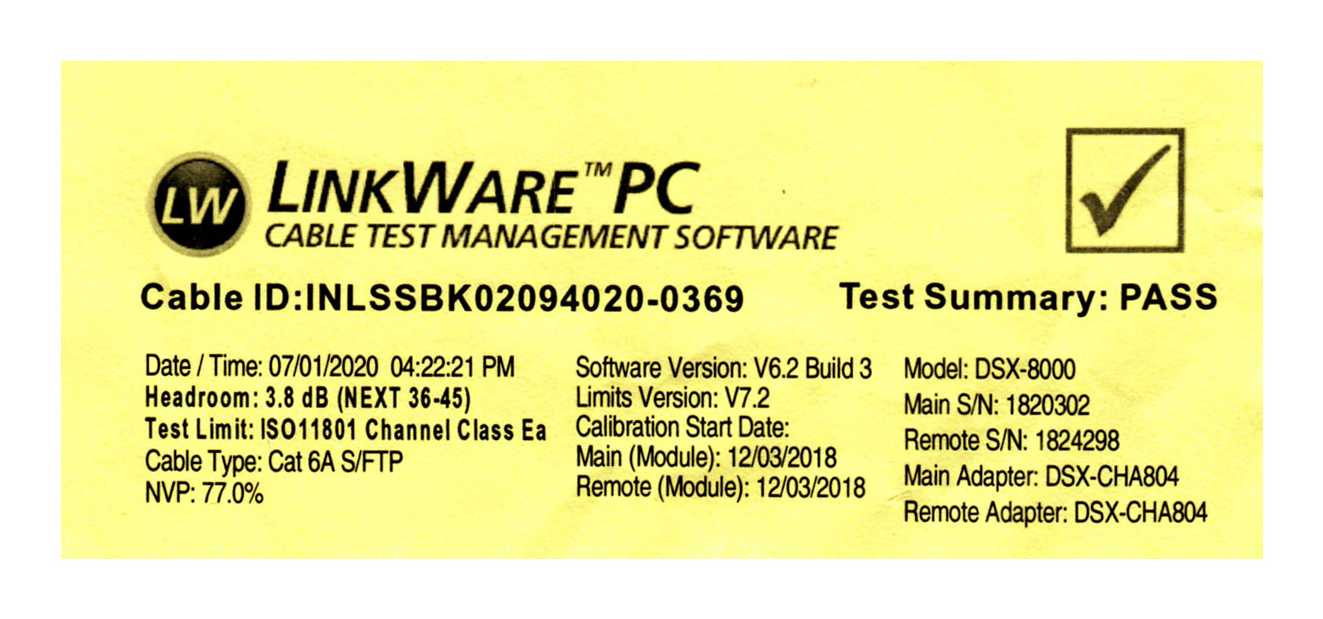

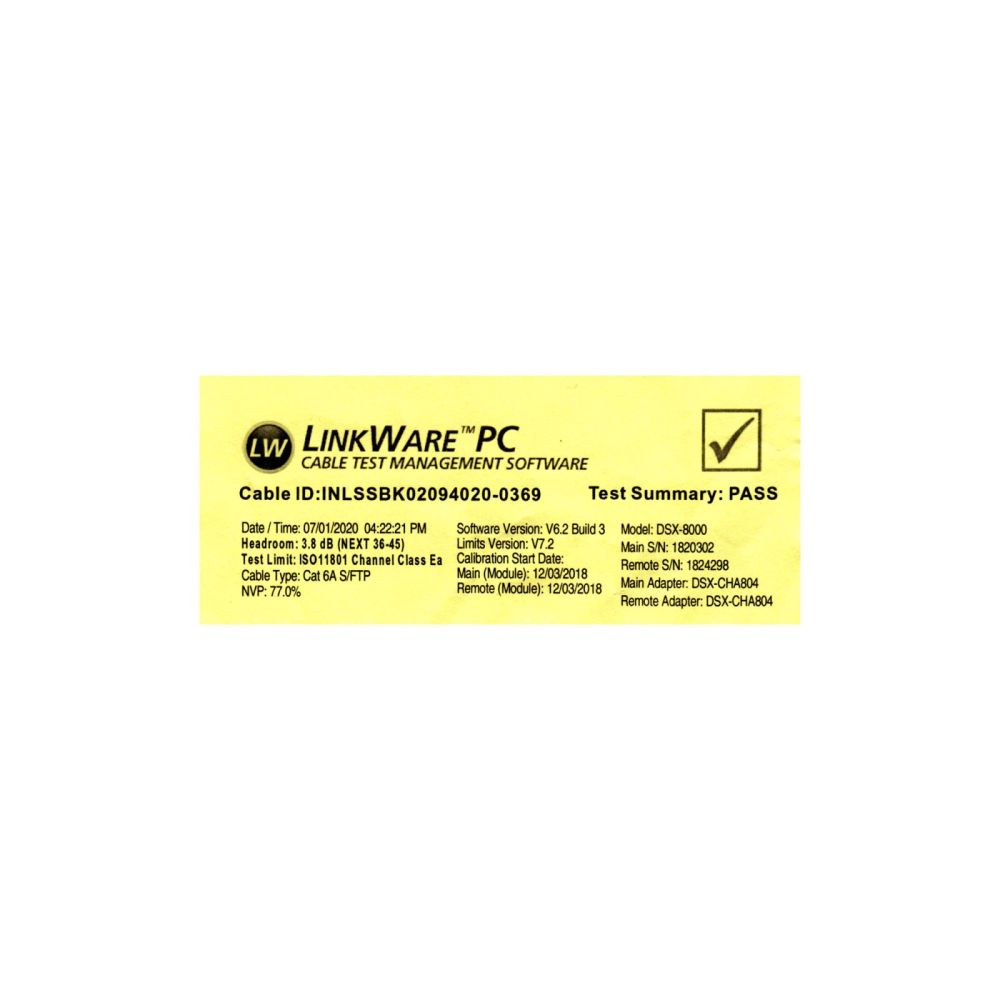

to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number

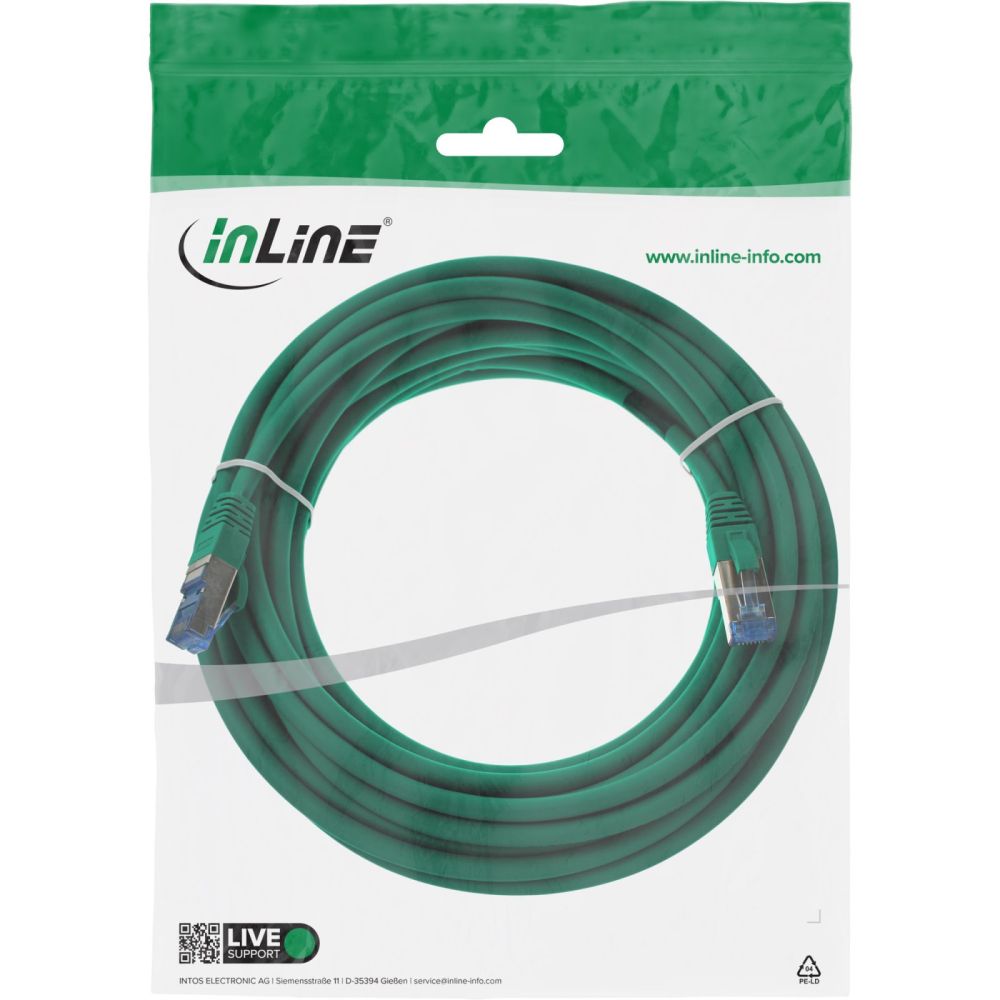

in reclosable PE bag with EAN code
| Features | |
| Product colour | Green |
| Cable length | 10 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| AWG wire size | 26 |
| Frequency | 500 MHz |
| Other features | |
| Dimensions (WxDxH) | 12 x 10000 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 245 mm |
| Package height | 48 mm |
| Package weight | 356 g |
| Package volume | 2400 cm³ |
| Technical data | |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 10Gb/s |
| Design | Round cable |
| Packaging volume | 0.0024m³ |
| Article length | 1000.00cm |
| Type | Cat.6A |
| Length packaging | 0.245m |
| Max. supported power | 90W |
| Colour | Green |
| Side B | RJ45 plug straight |
| Net weight | 0.353kg |
| Weight | 0.356kg |
| Conductor material | CU (copper) |
| Article height | 1.50cm |
| Shielding | S/FTP (PiMf) |
| Assignment | 1:1 |
| Article width | 1.20cm |
| Storage temperature | -20 to +70°C |
| Patch cable category | Cat.6A |
| Height packaging | 0.048m |
| Sheath | Halogen-free (LSZH) |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Side A | RJ45 plug straight |
| Width packaging | 0.200m |
| Length | 10m |
| Data transmission rate | 10Gb/s |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Signal | Network |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 10000 mm |
| Height | 15 mm |
| Weight | 353 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 10m?
The article InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 10m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76800G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 10m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 10m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
