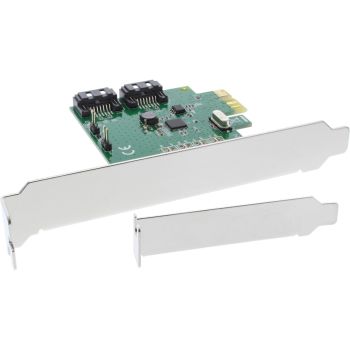

INLINE Interface card SATA 6Gb/s controller card 2-channel x1 PCIe 2.0 RAID 0/1/SPAN content_copy

Quickly add SATA ports with RAID via PCIe x1Two additional SATA ports: Easily connect SSDs and hard drives at 6 Gb/s.
RAID 0/1/SPAN with auto-rebuild: Increase performance, achieve mirroring, or use capacity flexibly.
Trouble-free integration: Uses Windows-integrated drivers and AHCI.
Also fits compact cases: Low-profile slot bracket included.
Stable connectivity via PCIe 2.0 x1: For reliable data transfer without additional hardware.
The PCIe expansion card adds two SATA 6 Gb/s ports and connects SSDs or hard drives directly. Via the selectable modes RAID 0, RAID 1 or SPAN, performance can be increased, data security achieved through mirroring, or existing storage consolidated. Features such as NCQ, Port Multiplier (Windows only) and boot capability support efficient setups.
In professional IT environments and during on-site deployments, the card facilitates expansions without major modifications. It integrates into existing infrastructures of companies and public institutions and enables quick service operations, for example when retrofitting additional drives or building small RAID volumes.
Connection: 2x SATA 6 Gb/s ports
Interface: PCIe 2.0 x1
RAID modes: 0/1/SPAN
Standard: SATA Revision 3.2
AHCI: Rev. 1.3
Speeds: 6 Gb/s, 3 Gb/s, 1.5 Gb/s
Drivers: Windows-integrated
Operating systems: Windows 10/8.1/8/7/Vista
Port Multiplier: supported (Windows only)
NCQ: supported
Bootable: Yes
Form factor: Low-profile slot bracket included
System requirements: 1x free PCIe x1 slot
Compatibility: SATA III/SATA II hard drives and SSDs
Package contents: Interface card, manual, low-profile slot bracket

Design
Internal
Features
Data transfer rate (max)	6 Gbit/s
RAID levels	0, 1, SPAN
Native Command Queuing (NCQ)
Other features
Data transfer rate	6000 Mbit/s
Packaging data
Package width	145 mm
Package depth	180 mm
Package height	40 mm
Package weight	57 g
Package volume	1000 cm³
Manual
Ports & interfaces
Host interface	PCIe
Output interface	SATA
Expansion card form factor	Low-profile
Expansion card standard	PCI 2.0
Internal SATA ports quantity	2
Technical data
Height packaging	0.040m
Chipset	ASMedia ASM1061R
Interface	SATA
Net weight	0.057kg
Transmission rate	6Gb/s
Weight	0.117kg
Connections internal	2x SATA 6Gb/s
Width packaging	0.145m
RAID	0/1/SPAN
Connections external	None
Type	Interface card
Length packaging	0.180m
Slot	PCIe
Packaging volume	0.0010m³
Low Profile
Weight & dimensions
Depth	1.17 mm
Weight	57 g

---
