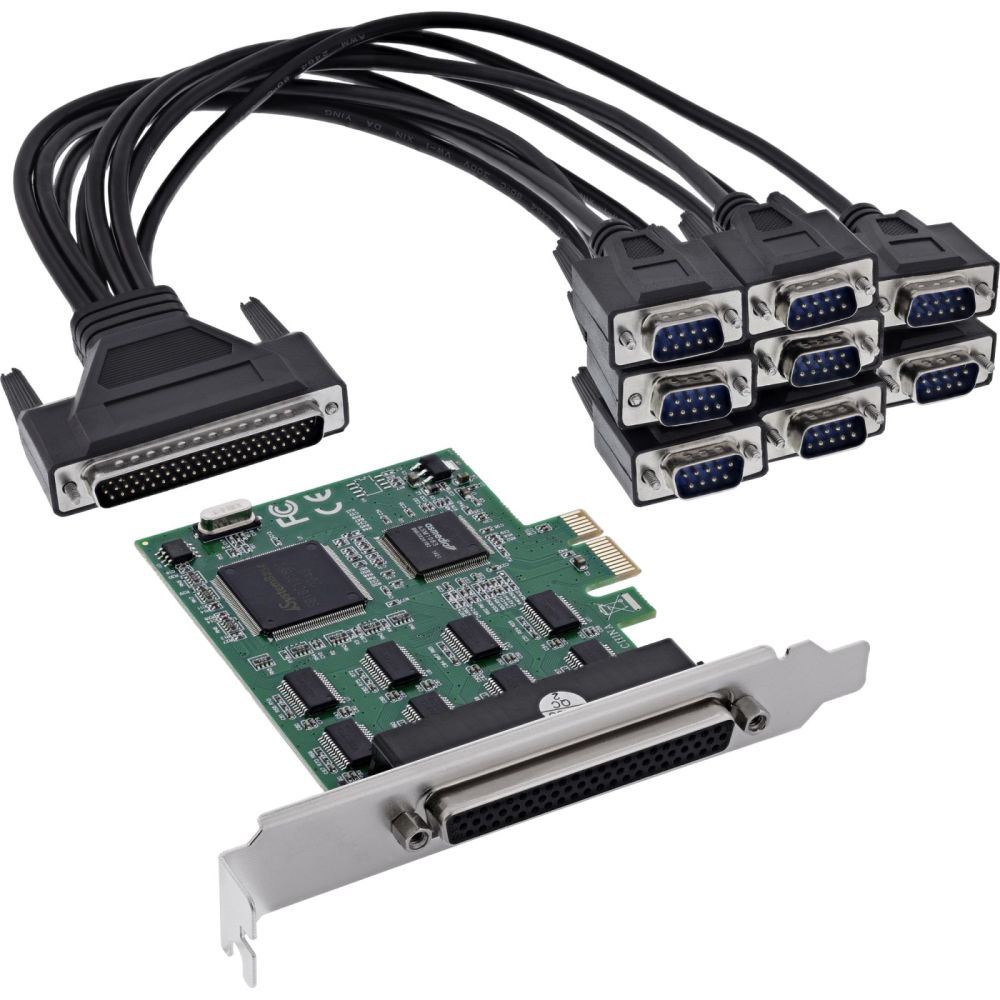

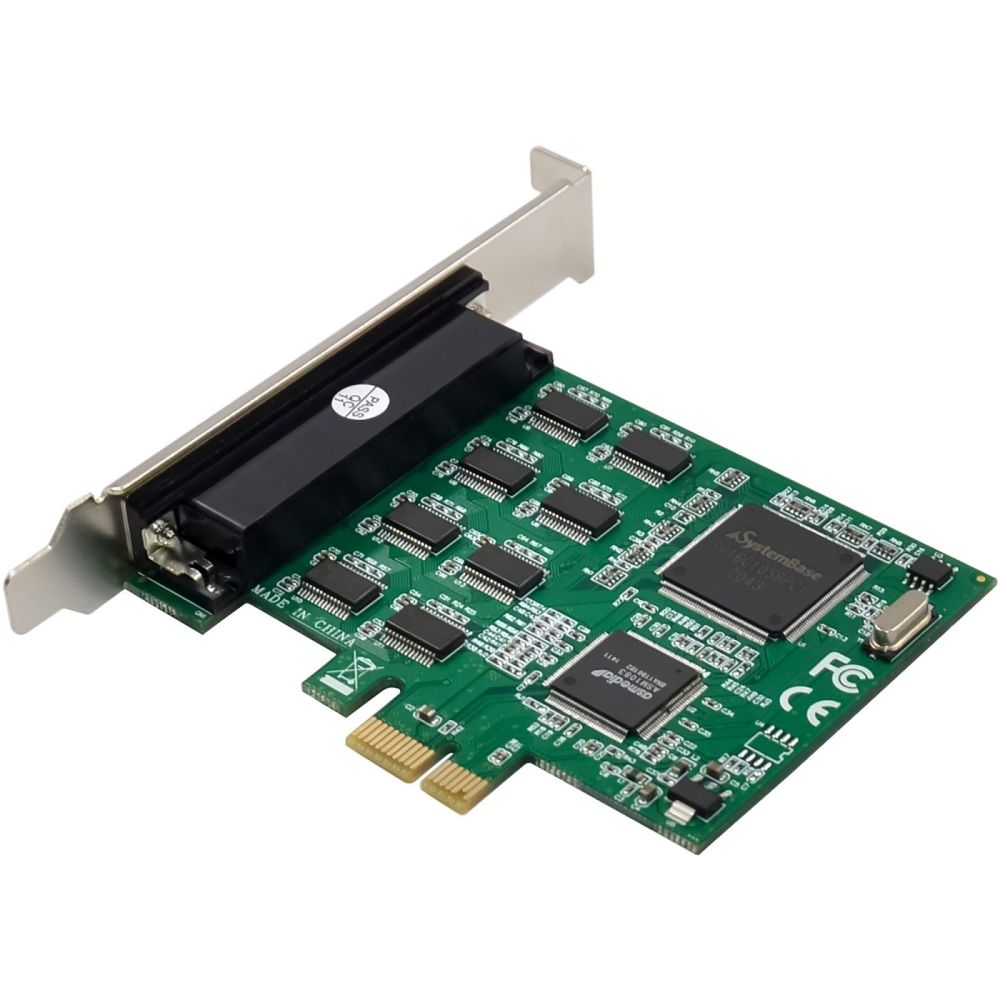

InLine® Interface card, PCIe x1 to 8x RS-232, D-Sub 9 connector content_copy

Extended connectivity for serial devices: Eight independent RS-232 ports enable parallel operation of a wide variety of end devices with D-Sub 9 connectors.
Reliable data transmission: 256-byte FIFO transmit and receive buffers per port ensure stable communication even under high loads.
Versatile and compatible: Supports a wide range of operating systems from Windows 98 to Windows Server 2008 as well as Linux from kernel 2.6.14.
Industrial-grade flexibility: Hardware and software flow control, IRQ sharing, and multi-card operation allow for use in complex systems.
Easy integration via PCIe x1: The modern PCI Express 1.1 interface is compatible with current PC architectures and industrial setups.
The InLine® PCIe x1 8-port RS-232 interface card is the ideal solution for expanding systems with serial interfaces. Equipped with the SB16C1058 controller, it offers eight independent D-Sub 9 ports for connecting multiple devices simultaneously. Each port has its own 256-byte FIFO buffer for sending and receiving, which enables reliable communication even with high data loads.
The PCIe x1 connection complies with the PCI Express 1.1 standard and is backward and forward compatible with PCIe 2.0 and higher. This makes the card universally applicable in modern PCs, industrial PCs, and embedded systems. It supports various data and stop bit settings, parity checking, and hardware and software flow control. Functions such as IRQ sharing and multi-card operation make the card particularly flexible in complex IT environments.
Thanks to broad driver support for Windows and Linux systems and its robust design, the card is suitable for numerous professional applications – from POS systems and industrial controls to laboratory environments. It is ready for immediate use and comes with a driver CD and instructions.
PCIe standard: PCIe v1.1 x1 lane (compatible with PCIe 2.0 and higher)

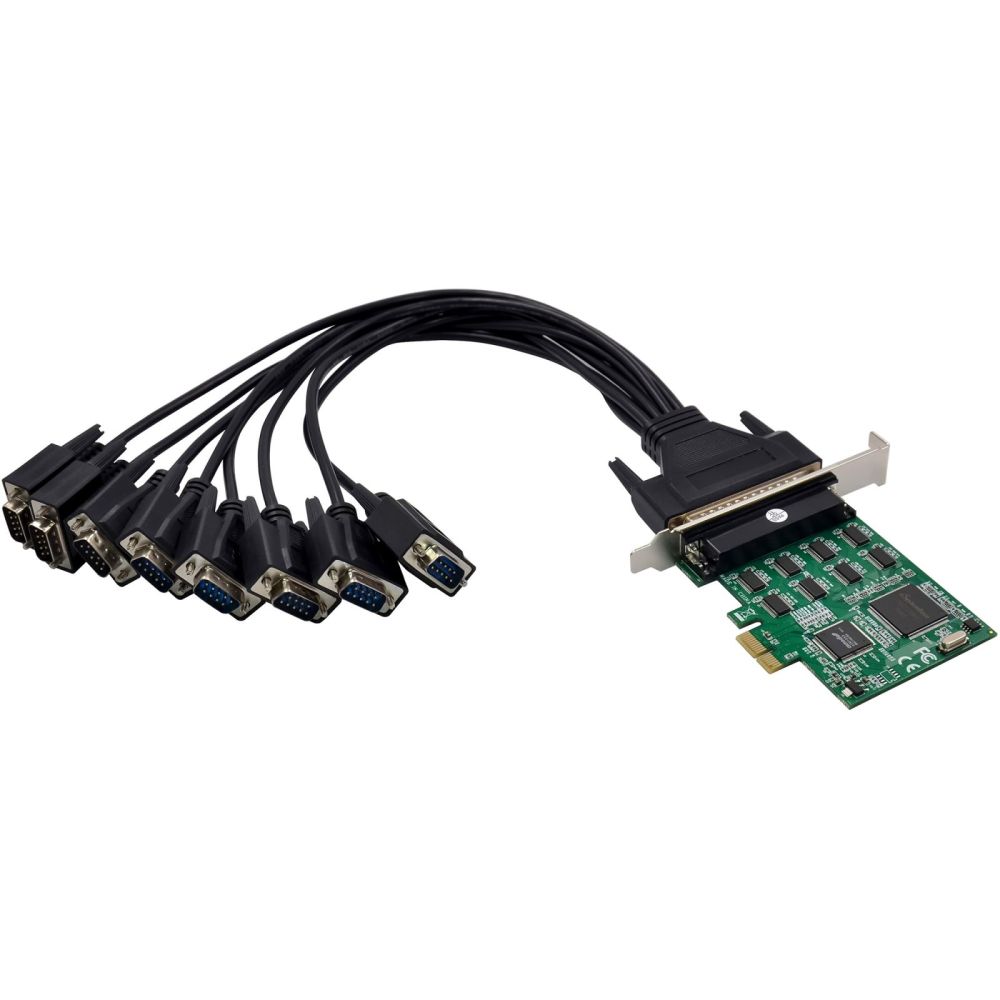

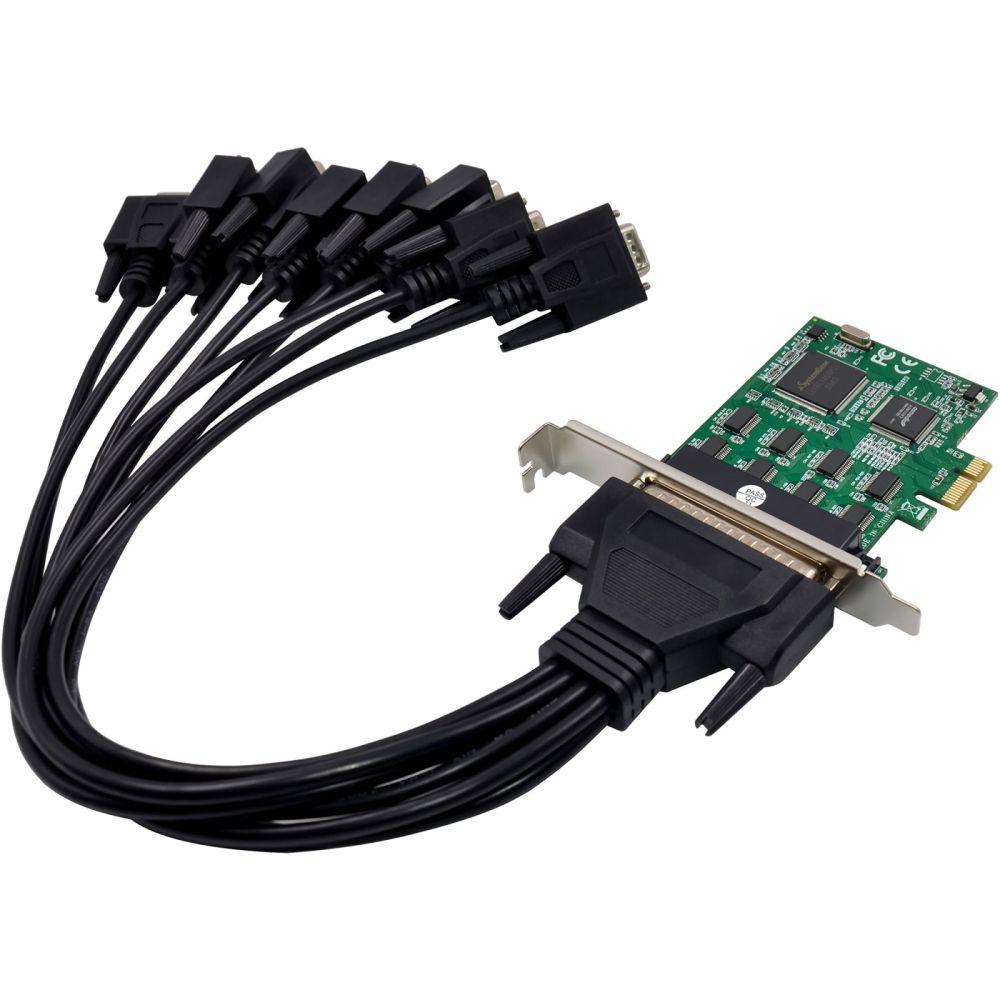

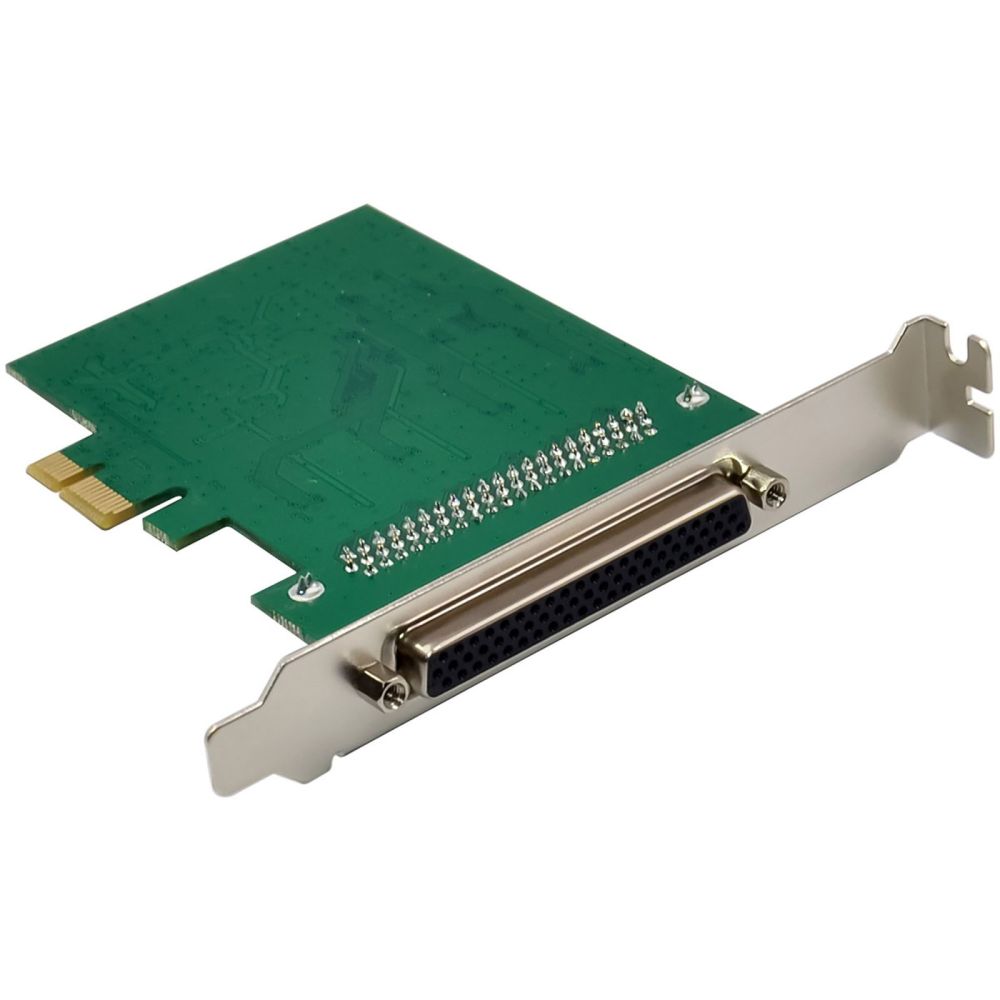

Interfaces: 8× RS-232, D-Sub 9 connector (male)

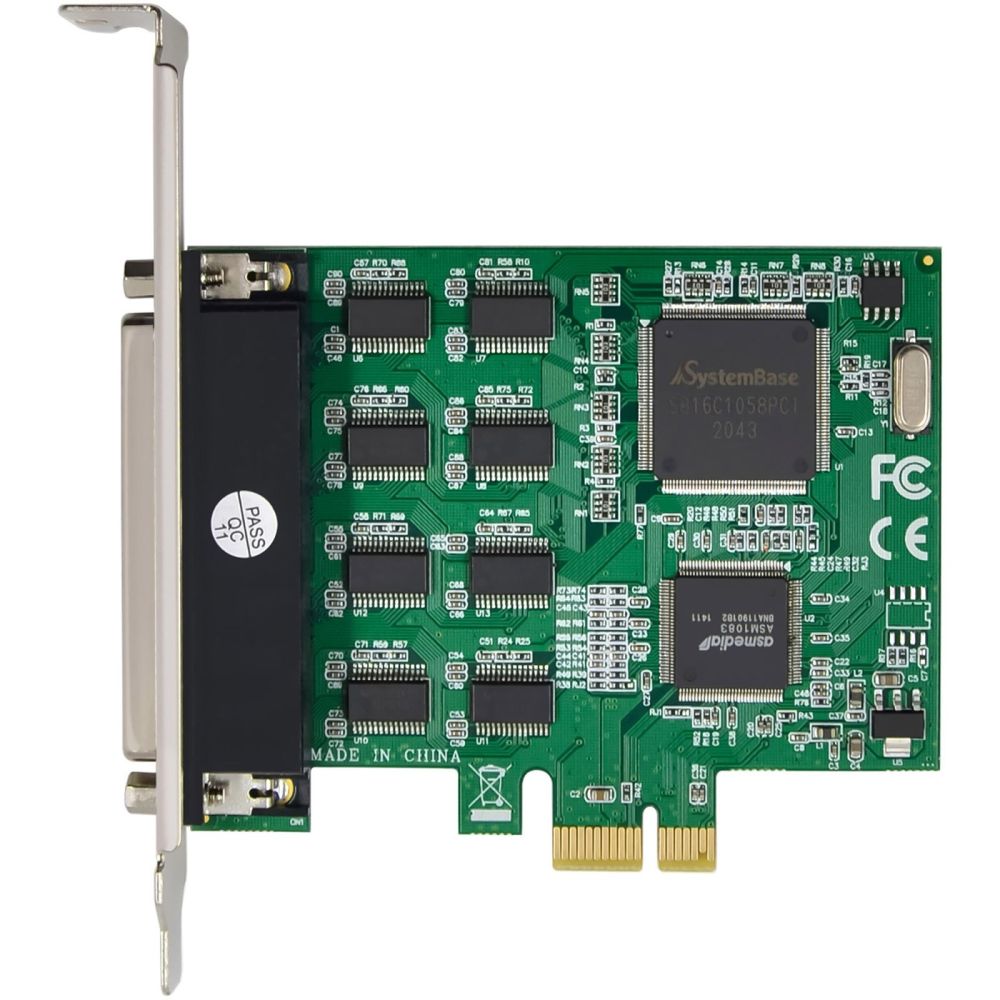

Chipset: SB16C1058
Baud rates: up to 230.4 kb/s (maximum transfer speed per port)
FIFO buffer: 256 bytes transmit / 256 bytes receive per port (stable transmission)
Data bits: 5, 6, 7, or 8 bits (user data bits per character)
Stop bits: 1, 1.5, or 2 (marking the end of the character)
Parity: None, even, odd (error detection via check bit)
Flow control: Hardware (RTS/CTS) and software (XON/XOFF)
IRQ sharing: supported
Multi-card operation: supported
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90%, non-condensing
Windows 98 / ME / 2000 / XP / Server 2003 / Vista / 7 / Server 2008
Linux kernel 2.6.14 or newer
1x InLine PCIe x1 8-port RS-232 interface card (with slot bracket installed)
1x driver CD
1x user manual in German/English

Design
Country of origin	Taiwan
Internal
Features
Chipset	SB16C1058
Baud rate	230.4 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Flow Control type	RTS/CTS, XON/XOFF
Flow control support
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Other features
Dimensions (WxDxH)	105 x 5.61 x 19 mm
Packaging data
Package width	140 mm
Package depth	160 mm
Package height	75 mm
Package weight	62 g
Package volume	1700 cm³
Package type	Box
Mounting brackets included
Drivers included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	RS-232
Expansion card standard	PCIe 1.1
System requirements
Windows operating systems supported	Windows 2000, Windows 7, Windows 98, Windows ME, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2003, Windows Server 2008
Technical data
Packaging volume	0.0017m³
Length packaging	0.160m
Weight	0.561kg
Width packaging	0.140m
Article width	1.90cm
Connections internal	PCI
Article length	10.50cm
Article height	12.00cm
Interface	Serial
Transmission rate	230.4Kb/s
Height packaging	0.075m
Net weight	0.062kg
Slot	PCIe
Type	Interface card
Chipset	SystemBase 16C1058PCI
Low Profile
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), TÜV mark
Weight & dimensions
Width	105 mm
Depth	5.61 mm
Height	19 mm
Weight	12 kg

---
