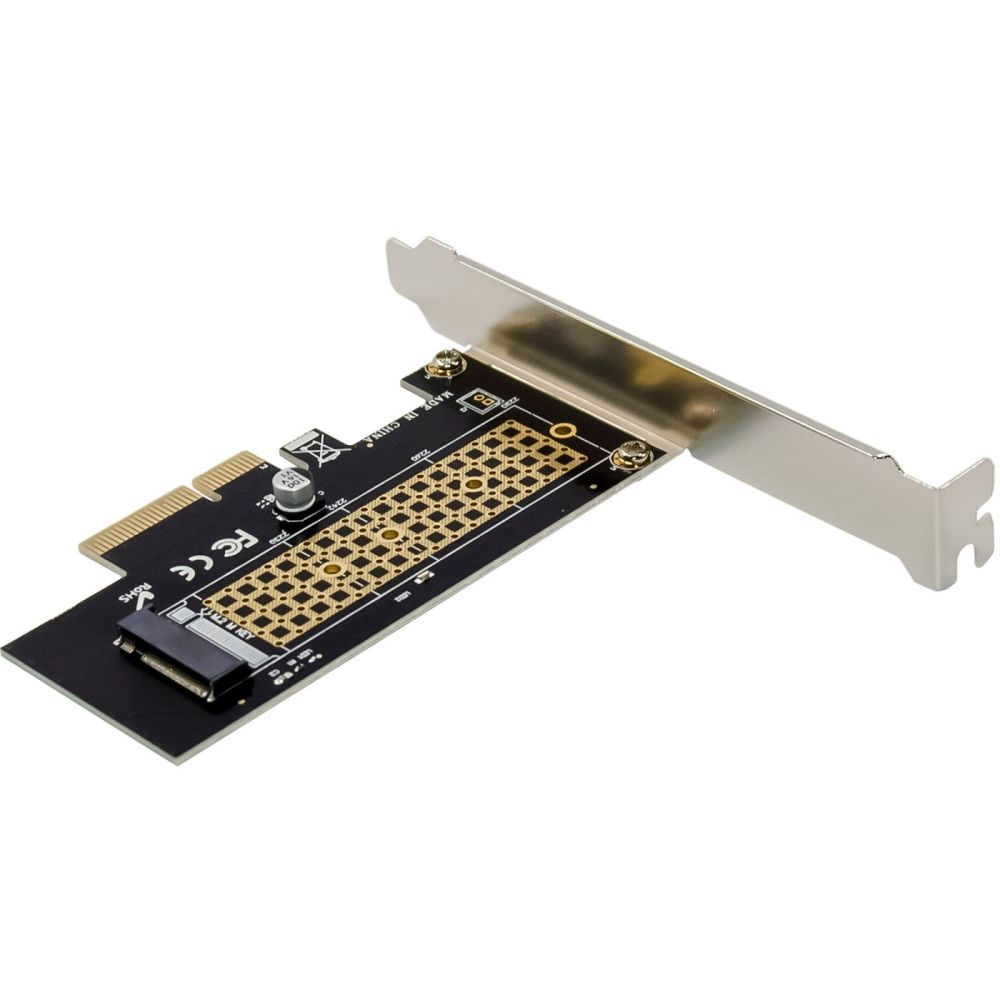

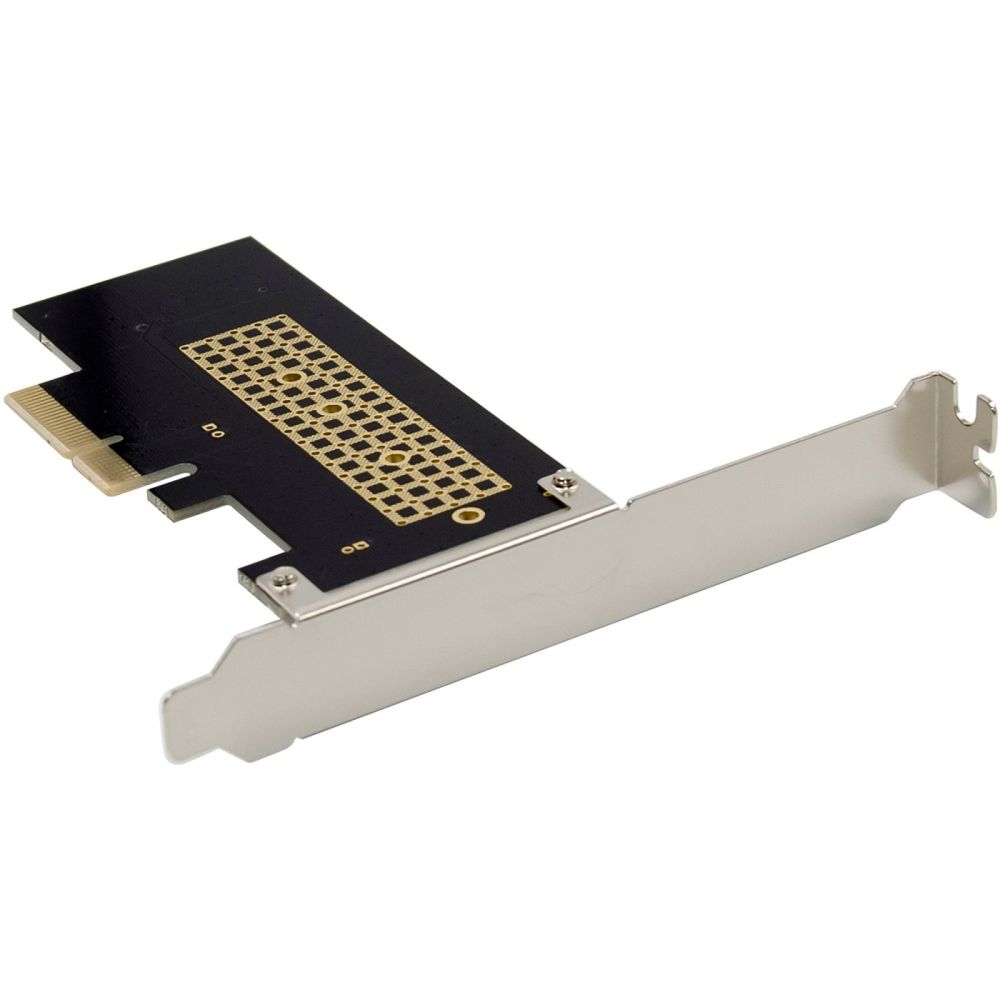

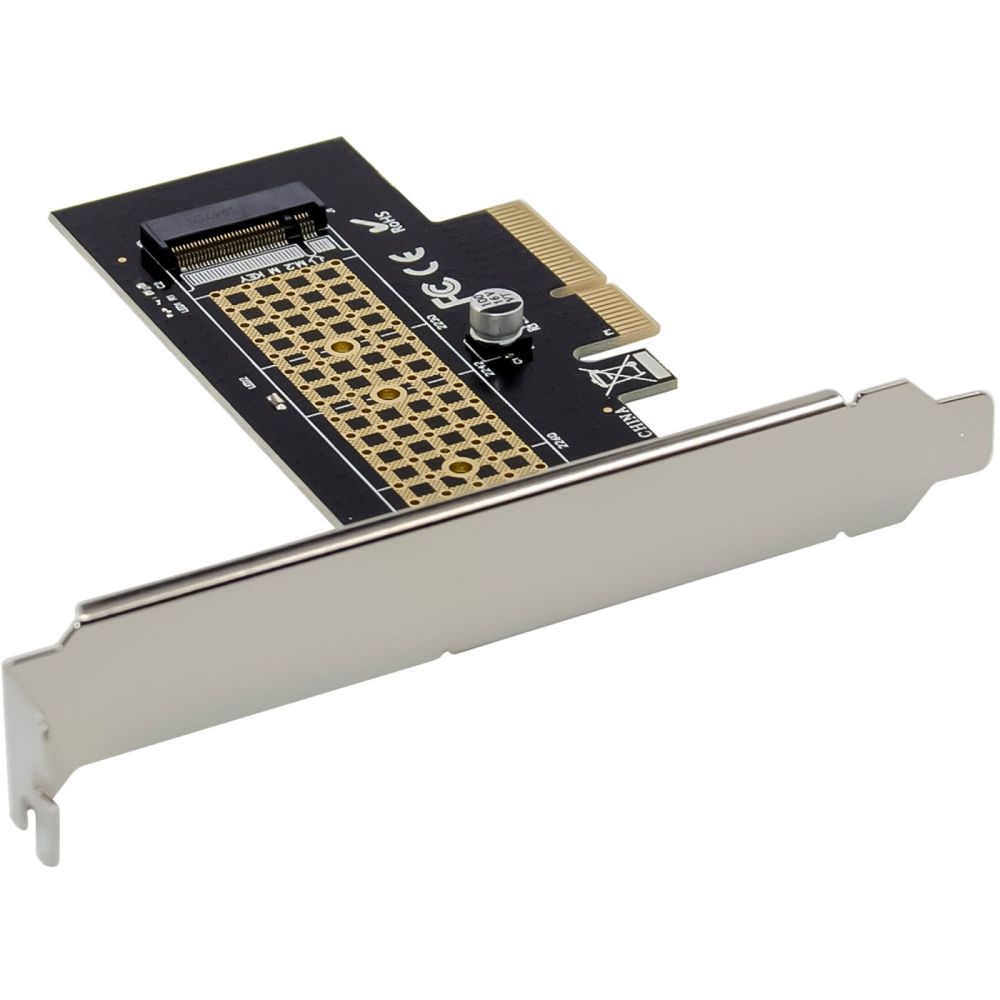

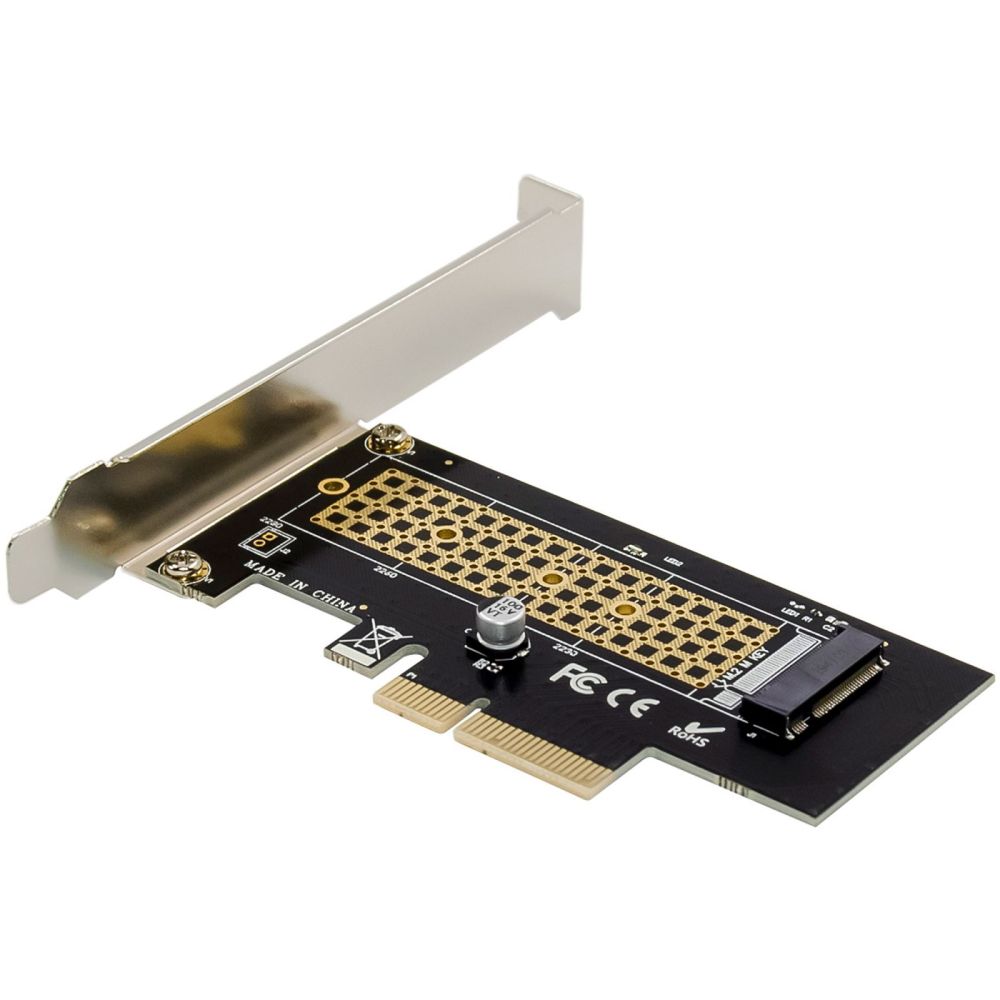

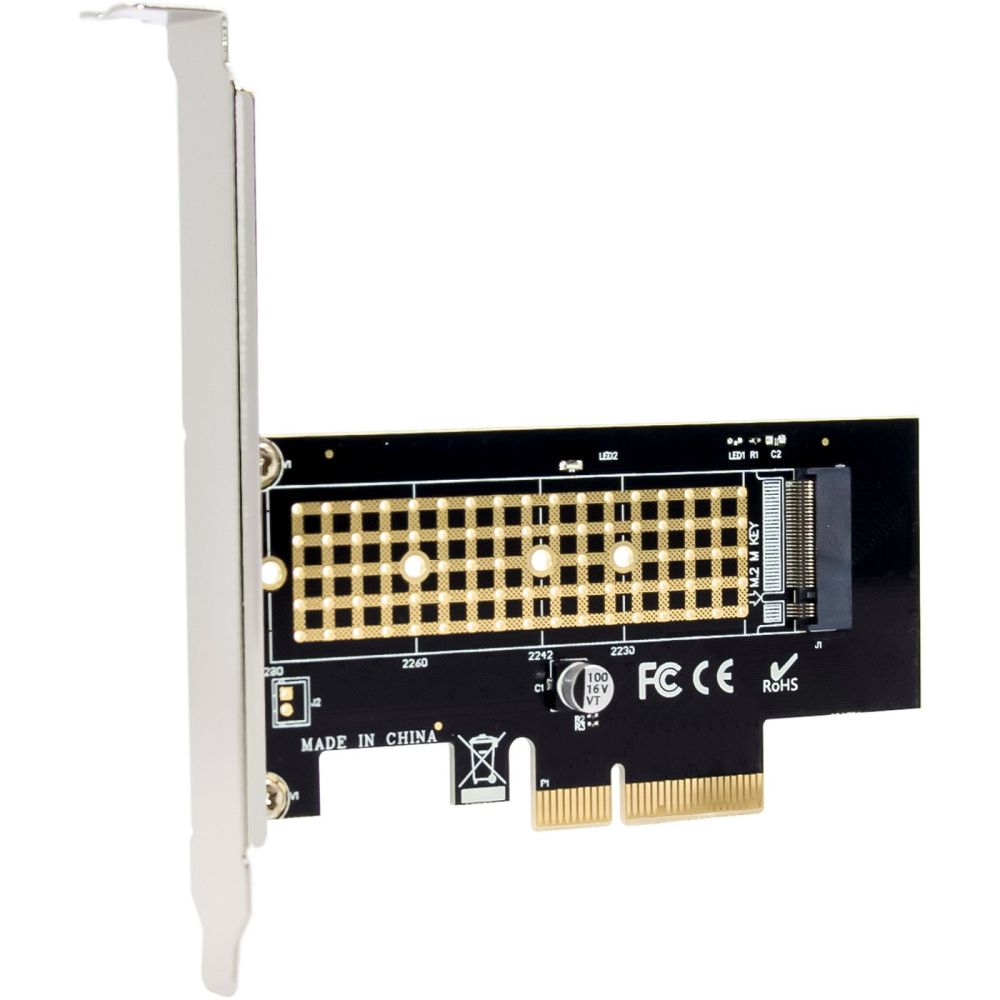

InLine® PCI Express card to 1x internal NVMe M.2 Key M, PCIe x4 content_copy

Supports an NVMe SSD (M.2 Key M) for fast memory expansion
PCIe 3.0 x4 interface with a maximum bandwidth of up to 32 Gb/s
Automatic lane detection on boot for easy system integration
Onboard LED indicator for displaying read and write activities
No additional drivers required – ready for immediate use
The InLine® PCI Express card enables the operation of a NVMe SSD (M.2 Key M) via a PCIe 3.0 x4 interface with up to 32 Gb/s bandwidth, enabling fast boot times and optimized data transfers.
Thanks to automatic lane detection during booting, the card is easily integrated into the system. The power supply of the NVMe SSD is provided directly via the PCIe bus (3.3 V). In addition, an LED indicator facilitates error diagnosis and shows the operating status of the SSD.
Technical data:
Bus type & PCIe: PCIe 3.0 x4 lane (maximum bandwidth up to 32 Gb/s)
Connection – interfaces:1 x M.2 slot (Key M) for NVMe SSDs

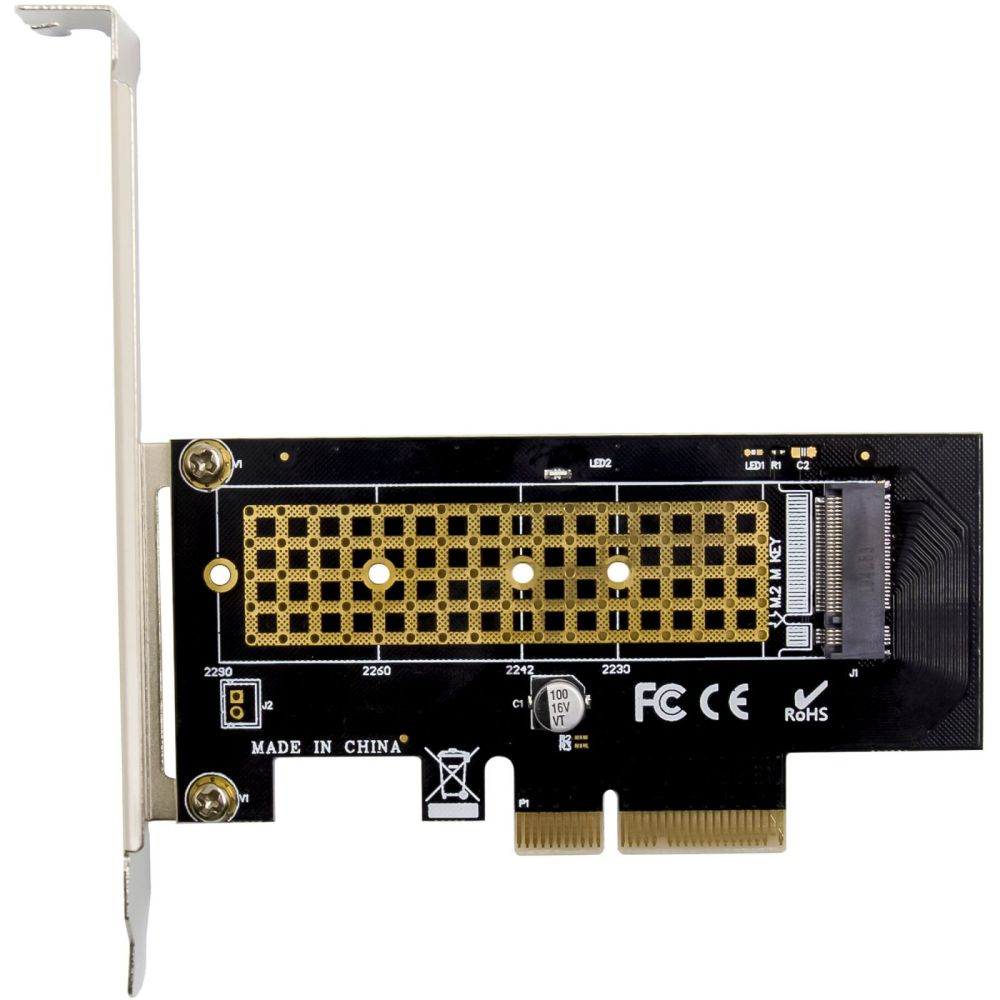

Compatible module sizes: 2230, 2242, 2260, 2280
Data rate: Each port supports transfer rates of up to 4 Gb/s
Dimensions: 95 mm x 52 mm (PCIe board)
Operating conditions:
Operating temperature: -40 °C to +85 °C
Functions:
Automatic detection of the lane configuration at boot
Onboard LED indicator to display the read/write activity
NVMe SSD receives its power supply directly via the PCIe bus (3.3 V)
No additional driver required
System requirements: Hardware:
PC with a free PCIe slot (x4, x8 or x16 – the card is compatible)
Motherboard with support for PCIe 3.0 or higher
Operating system support:
Windows: 11, 10, 8.1, 8, 7
Windows Server: 2012 R2
Linux: from kernel 2.6
Scope of delivery:
1 x InLine® PCI Express card to 1x internal NVMe M.2

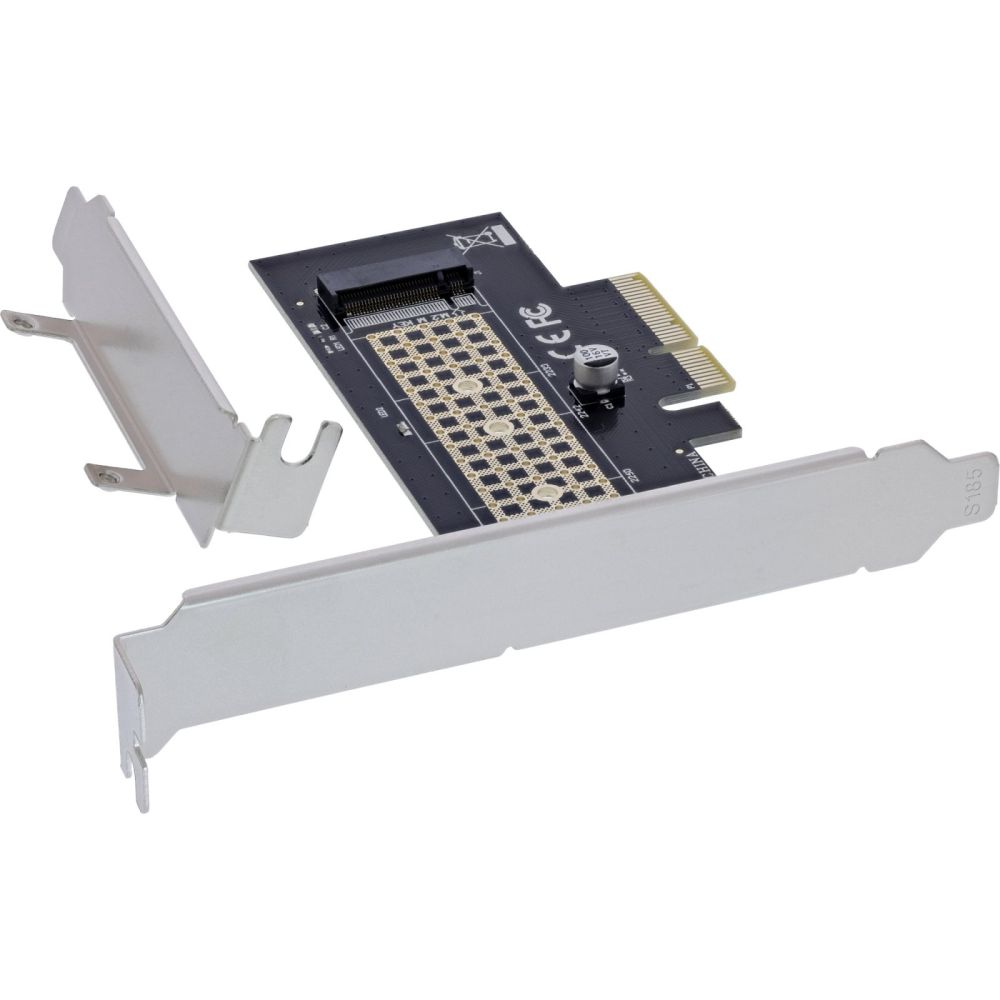

1 x low-profile slot bracket

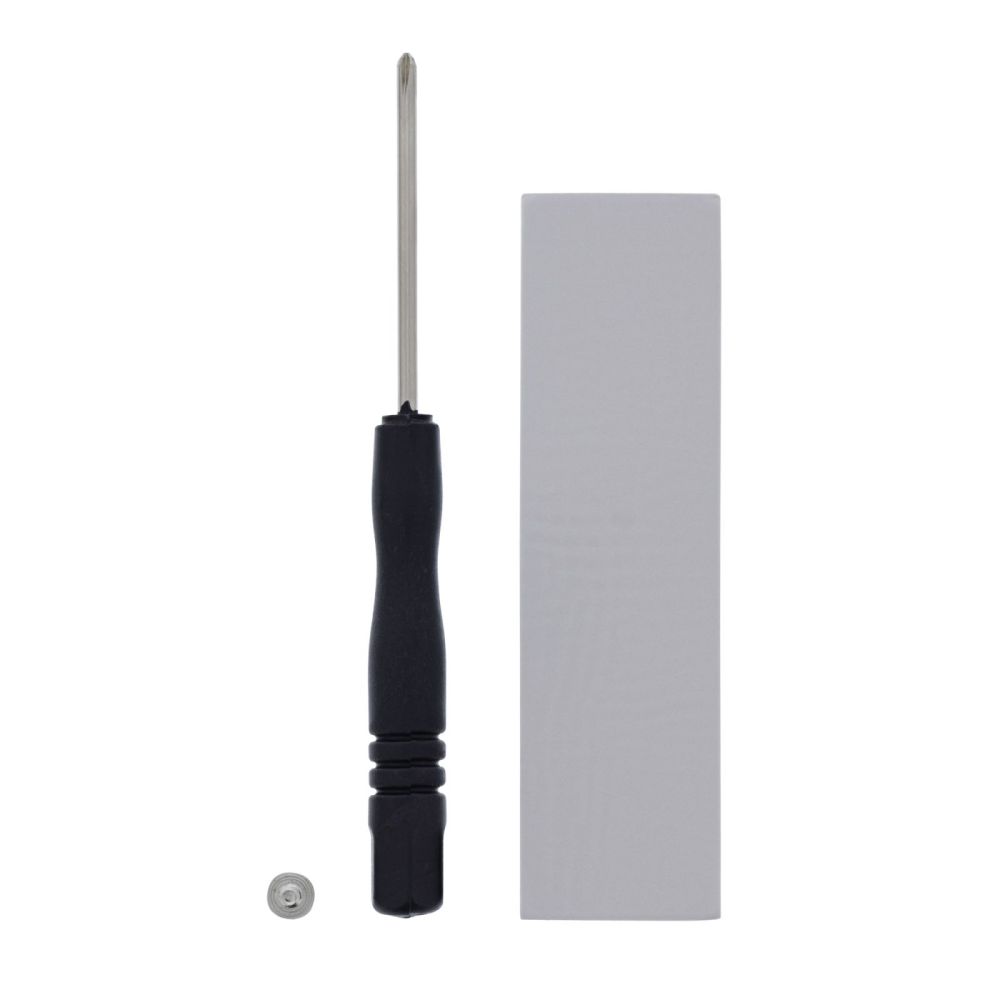

1 x hand screwdriver
2 x screws
1 x heat conduction pad
1 x instruction manual (German/English

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Data transfer rate (max)	4 Gbit/s
Bandwidth	32 Gbit/s
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	120 x 1 x 120 mm
Packaging data
Package width	14 mm
Package depth	3 mm
Package height	155 mm
Package weight	33 g
Package type	Hanging box
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	M.2
Expansion card standard	PCIe 3.0
Number of M.2 (M) slots	1
NVMe
Power
Power supply input voltage	3.3 V
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 8, Windows 8.1
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2012 R2
Technical data
Width packaging	0.014m
Transmission rate	4Gb/s
Height packaging	0.155m
Length packaging	0.003m
Weight	0.100kg
Interface	NVMe
Connections external	None
Article height	2.30cm
Type	Controller
Slot	PCIe
Article width	12.00cm
Connections internal	M.2-NVMe-SSD
Article length	12.00cm
Net weight	0.033kg
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	120 mm
Depth	1 mm
Height	120 mm
Weight	2.3 kg

---
