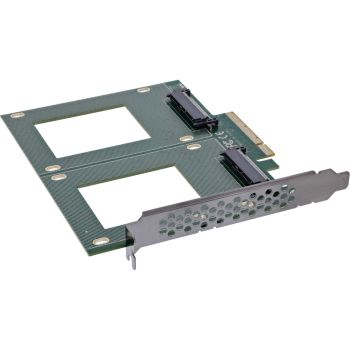

InLine® PCIe card to 2x internal U.2 NVMe SFF-8639 - Bifurcation, PCIe x8, broad content_copy

Supports two 2.5-inch NVMe SSDs for maximum performance and flexibility
PCIe 3.0 x8 connection with up to 64 Gb/s bandwidth
Automatic lane detection (bifurcation) for optimum system integration
LED indicators for easy fault diagnosis and operating status
No additional driver required - native Windows and Linux support
The InLine® PCI Express card expands your system with two internal U.2 NVMe SSD slots and enables the parallel operation of two SSDs with full PCIe bandwidth. Thanks to automatic lane detection, configuration is carried out for optimum system integration.
With a PCIe 3.0 x8 interface, the card offers a maximum bandwidth of up to 64 Gb/s, with each U.2 port supporting a data rate of up to 4 GB/s. LED indicators for read and write activity make it easy to monitor the operating status.
Note on dimensions:
The card has a length of 143 mm and a width of 122 mm. Please check that your housing offers sufficient space for installation and that adequate ventilation is ensured.
Technical data:
Bus type & PCIe: PCIe 3.0 (8 GT/s) x8 lanes (offers up to 64 Gb/s bandwidth)
Connector interfaces: 2 x SFF-8639 connectors (for the installation of 2.5-inch NVMe SSDs)
Chipset: PI6C20400BLE
Compatible U.2 devices: Supports 2.5-inch NVMe SSDs according to SFF-8639 standard
Data rate: Each port supports transfer rates of up to 4 GB/s
Dimensions: 143 mm x 122 mm (PCIe board)
Operating conditions:
Operating temperature: -40 °C to +85 °C
Functions:
Automatic detection of the lane configuration during boot
Onboard LED indicators (2x read/write activity LEDs)
The U.2 SSDs obtain their power supply directly via the PCIe bus (3.3 V)
No additional driver required
System requirements: Hardware:
PC with one free PCIe 3.0 x8 (or x16 slot)
Motherboard that supports PCIe bifurcation
BIOS/UEFI settings for PCIe bifurcation:
In order for both U.2 NVMe SSDs to be operated simultaneously, the PCIe slot used must often be set to Bifurcation mode in the BIOS/UEFI. This splits the available PCIe lanes into several channels (e.g. one x8 slot into two x4 channels).
The exact designation varies depending on the motherboard manufacturer and BIOS/UEFI version. Terms such as PCIe Bifurcation", "Lane Splitting" or "PCIe Slot Configuration may be used. Please consult your mainboard manual for the correct setting and then check whether both NVMe SSDs are recognized.
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)
Scope of delivery:
1 x InLine® PCI Express card to 2x internal U.2 NVMe SFF-8639
1 x hand screwdriver
8 x screws
1 x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Data transfer rate (max)	4 Gbit/s
Bandwidth	64 Gbit/s
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	160 x 1.25 x 138 mm
Packaging data
Package width	182 mm
Package depth	30 mm
Package height	155 mm
Package weight	62 g
Package type	Box
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	U.2
Expansion card standard	PCIe 3.0
NVMe
Power
Power supply input voltage	3.3 V
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Server operating systems supported	Windows Server 2012 R2
Linux operating systems supported
Technical data
Article length	16.00cm
Height packaging	0.155m
Connections external	None
Special feature	Simultaneous reading and copying of 2 cards
Net weight	0.062kg
Chipset	PI6C20400BLE
Transmission rate	64Gb/s
Length packaging	0.030m
Connections internal	2x U.2 NVMe SFF-8639 wide
Weight	0.125kg
Width packaging	0.182m
Article width	13.80cm
Interface	NVMe
Type	Controller
Slot	PCIe
Article height	2.20cm
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	160 mm
Depth	1.25 mm
Height	138 mm
Weight	2.2 kg

---
