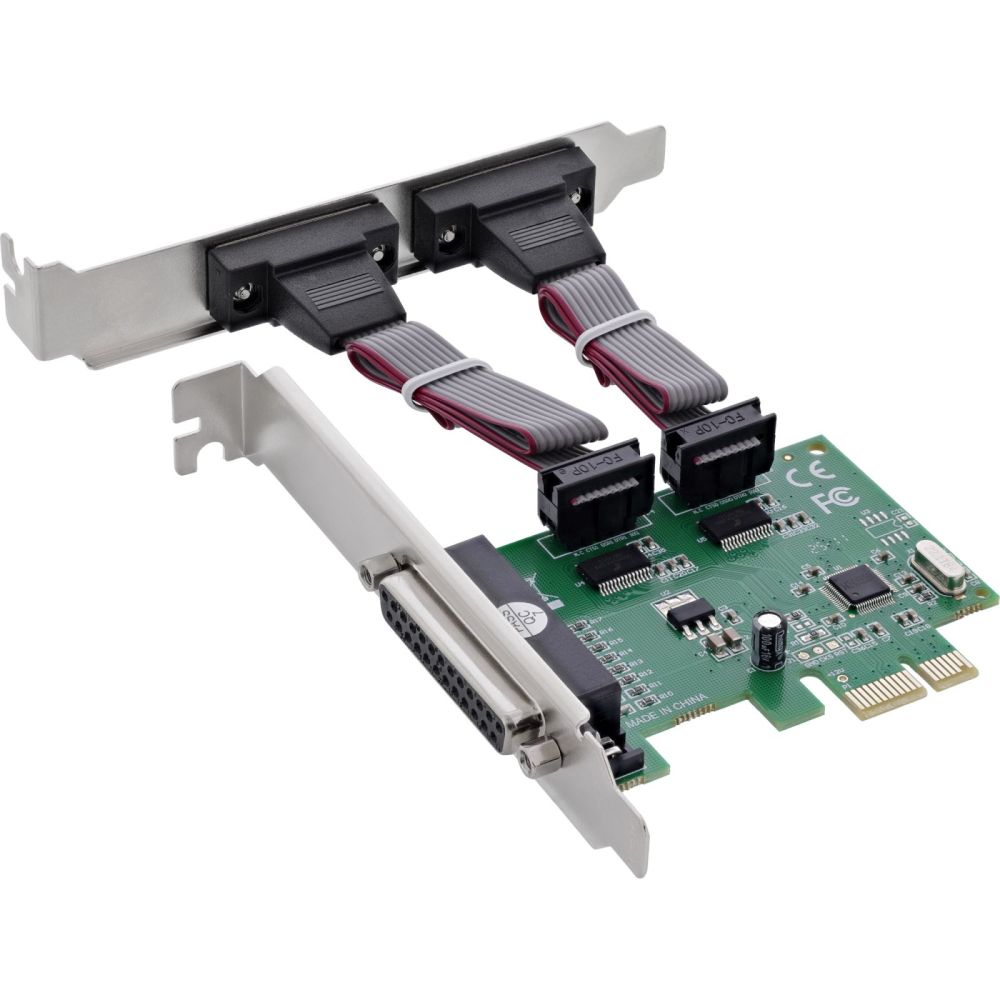

InLine® PCIe interface card, 2x RS-232 + 1x parallel port content_copy

PCIe interface card for RS-232 and parallel port devicesContinue using legacy devices: The PCIe interface card adds 2 RS-232 serial ports and 1 parallel port to modern PCs, enabling the use of existing hardware and peripherals.
High compatibility for many applications: Supports RS232 devices such as controllers, measurement systems, modems, POS systems, barcode scanners and printers with a parallel connection.
Flexible serial configuration: Supports various data bits, parity, stop bits as well as hardware and software flow control for stable and customisable data transfers.
Parallel interface according to IEEE 1284: Supports SPP, PS/2, EPP and ECP modes for compatible parallel devices and reliable communication on modern PCIe systems.
Ideal for compact systems: Thanks to PCI Express x1 and the included low-profile slot brackets, the card is also suitable for space-saving desktop and industrial PCs.
The InLine PCIe interface card adds two serial RS232 interfaces and one parallel port to modern computer systems, thereby enabling existing devices to continue operating on current PCI Express systems. The card is suitable for applications involving controllers, measurement systems, embedded hardware, modems, barcode devices or parallel-port printers.

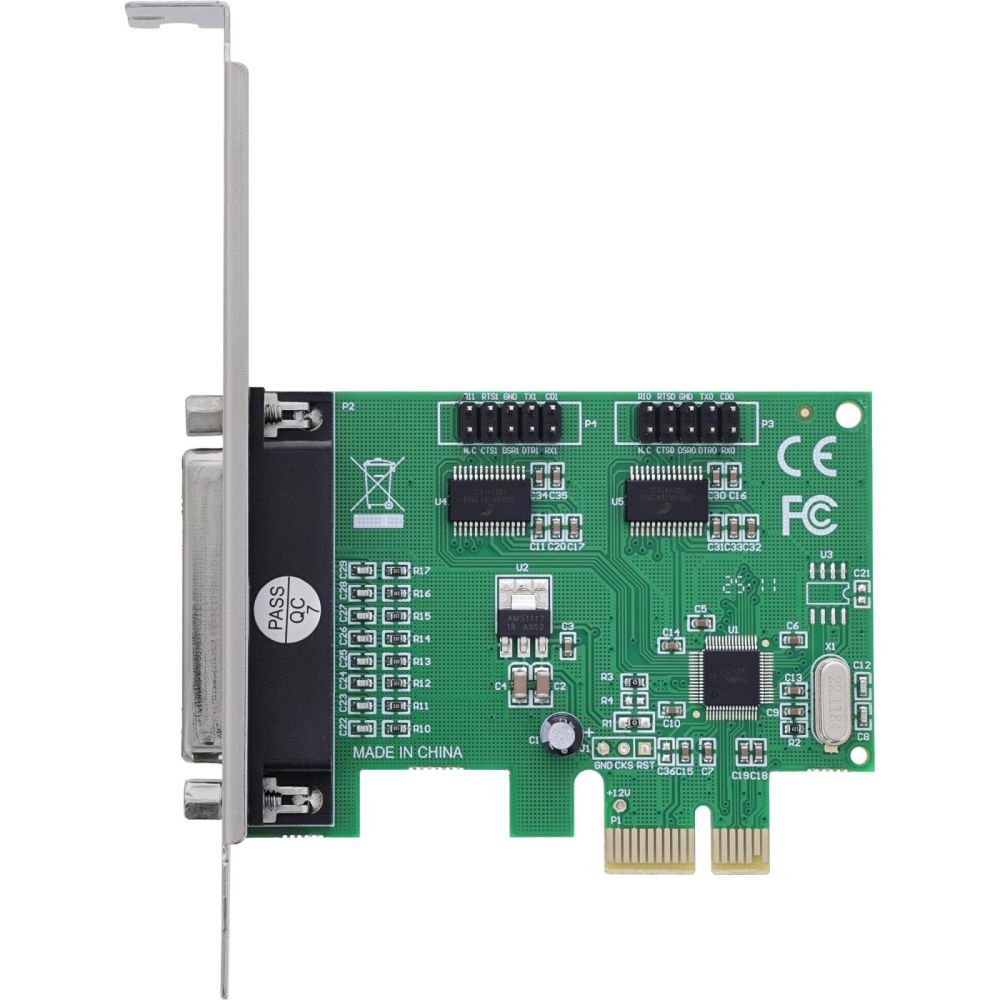

The integrated WCH CH382L controller supports 16C550, 16C552, 16C554 and 16C750-compatible UART functions as well as hardware and software flow control. In addition, the integrated FIFO buffer ensures stable data transfers during serial communication.
The parallel interface is IEEE 1284-compliant and supports SPP, PS/2, EPP and ECP modes. This allows compatible parallel devices to continue to operate reliably on modern PCIe systems.

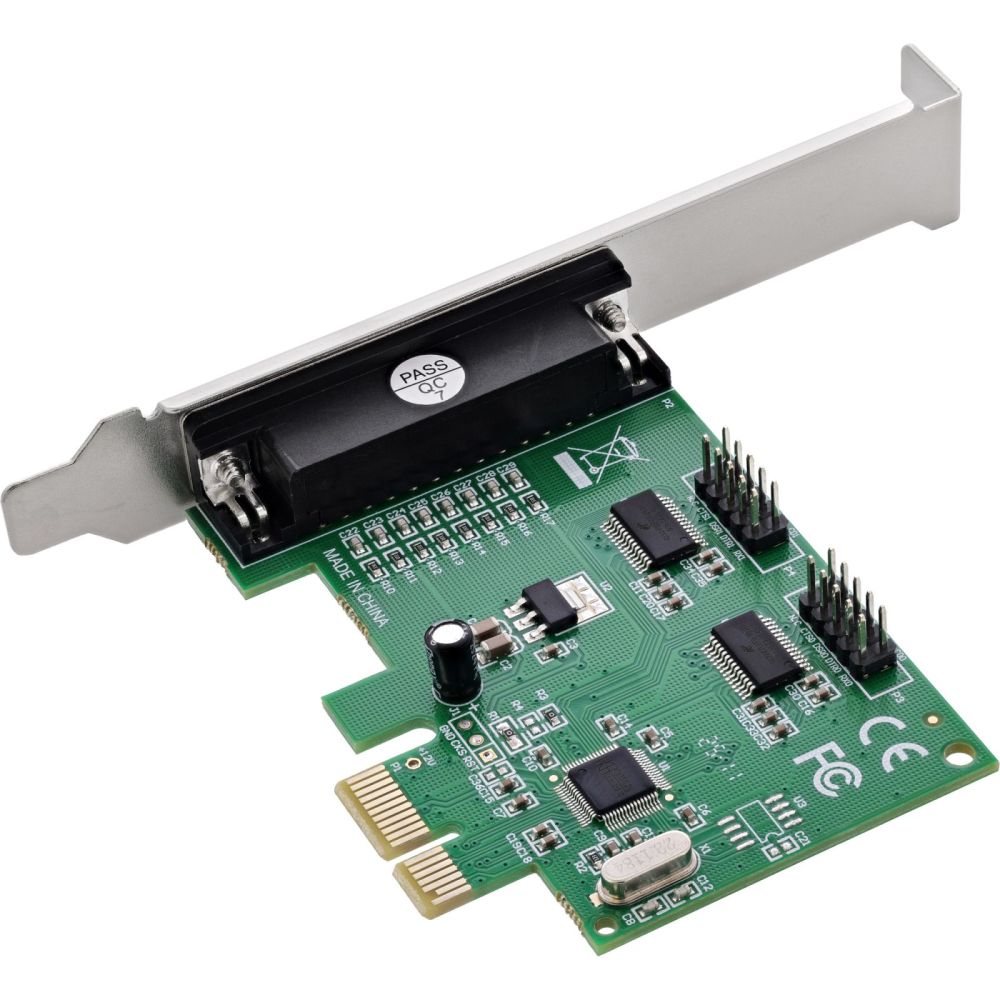

Thanks to the PCIe x1 connection, the interface card can be easily integrated into compatible desktop PCs or industrial systems. The included low-profile slot brackets also allow installation in compact enclosures.
Technical Specifications
PCIe standard: PCIe v1.1 x1 lane (compatible with PCIe 2.0 and higher)

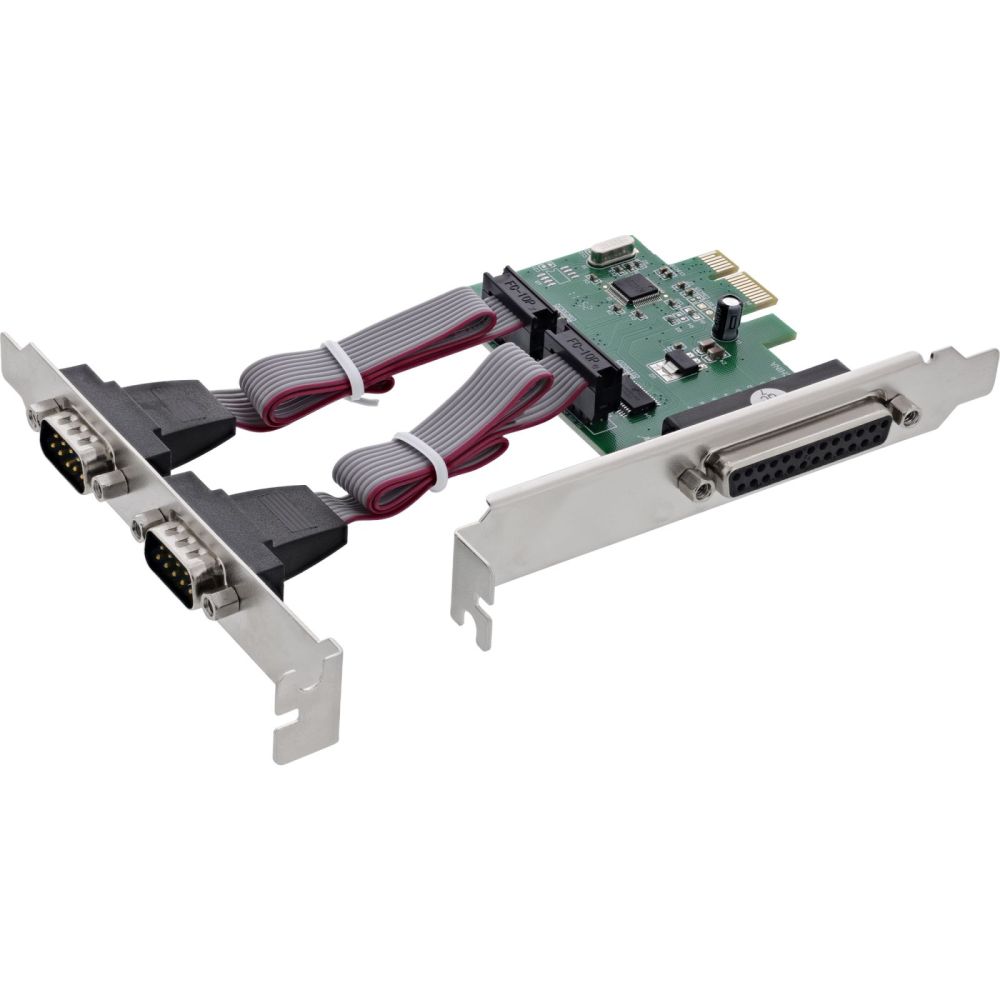

Connections: 2x RS-232, D-Sub 9-pin connector (male) + 1x D-Sub 25-pin socket (female)
Chipset: WCH CH382L
Bus interface: PCI Express
UART compatibility: 16C550, 16C552, 16C554 and 16C750
Serial data rate: up to 115 kbps per port
FIFO buffer: 256 bytes for transmit and receive data per serial port
Flow control: Hardware and software flow control
Data bits: 5, 6, 7 or 8 bits
Stop bits: 1 or 2
Parity: None, Even, Odd, Mark, Space
Parallel interface: IEEE 1284-compliant
Parallel port modes: SPP, PS/2, EPP and ECP
Parallel data rate: up to 1 MB/s
Supported operating systems
Windows 2000 / XP / Vista / 7 / 8 / 8.1
Windows Server 2003 / 2008
Windows 10 / 11 32/64-bit
Linux
DOS
Contents

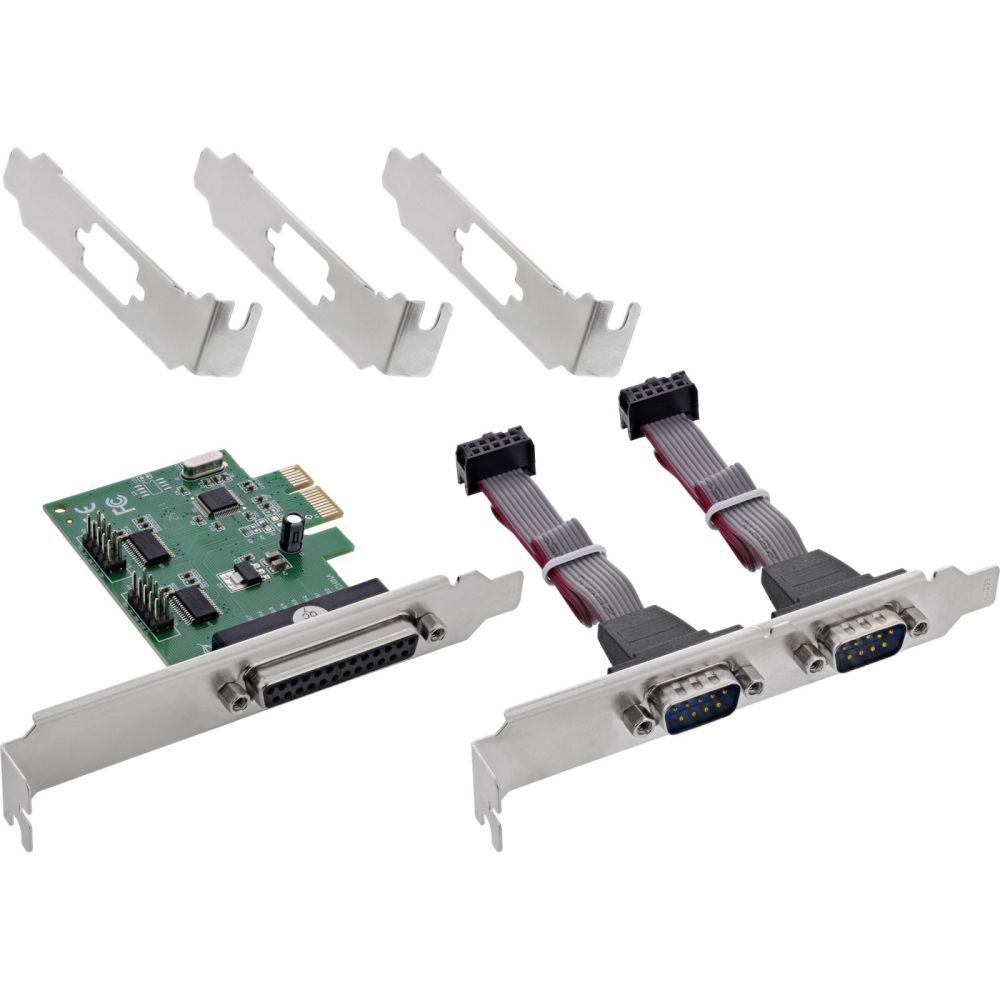

1x InLine® interface card, 2x 9-pin serial + 1x parallel
3x low-profile slot brackets
1x driver CD
1x user manual (German/English)

Design
Product colour	Green
Internal
Features
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8
Stop bits	2
Parity bit	Even, Odd, No, Mark, Space
Flow control support
Plug and Play
Other features
Dimensions (WxDxH)	120 x 1.57 x 95 mm
Quantity per box	1 pc(s)
Packaging data
Quantity per pack	1 pc(s)
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	81 g
Package volume	600 cm³
Drivers included
Manual
Ports & interfaces
Host interface	PCI
Host interface gender	Male
Output interface	RS-232, IEEE 1284
Expansion card standard	PCIe 1.1
Parallel ports quantity	1
System requirements
Windows operating systems supported	Windows 2000, Windows XP, Windows Vista, Windows 8, Windows 8.1, Windows 7, Windows 10
Server operating systems supported	Windows Server 2003, Windows Server 2008
Other operating systems supported	DOS
Linux operating systems supported
Technical data
Connections external	1x 25pin Parallel / 2x 9pin Serial
Net weight	0.081kg
Packaging volume	0.0006m³
Article width	9.50cm
Weight	0.157kg
Length packaging	0.150m
Article height	2.00cm
Connections internal	None
Type	Interface card
Article length	12.00cm
Width packaging	0.140m
Interface	Parallel / Serial
Slot	PCIe
Height packaging	0.030m
Chipset	WCH CH382L
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.57 mm
Height	95 mm
Weight	2 kg

---
