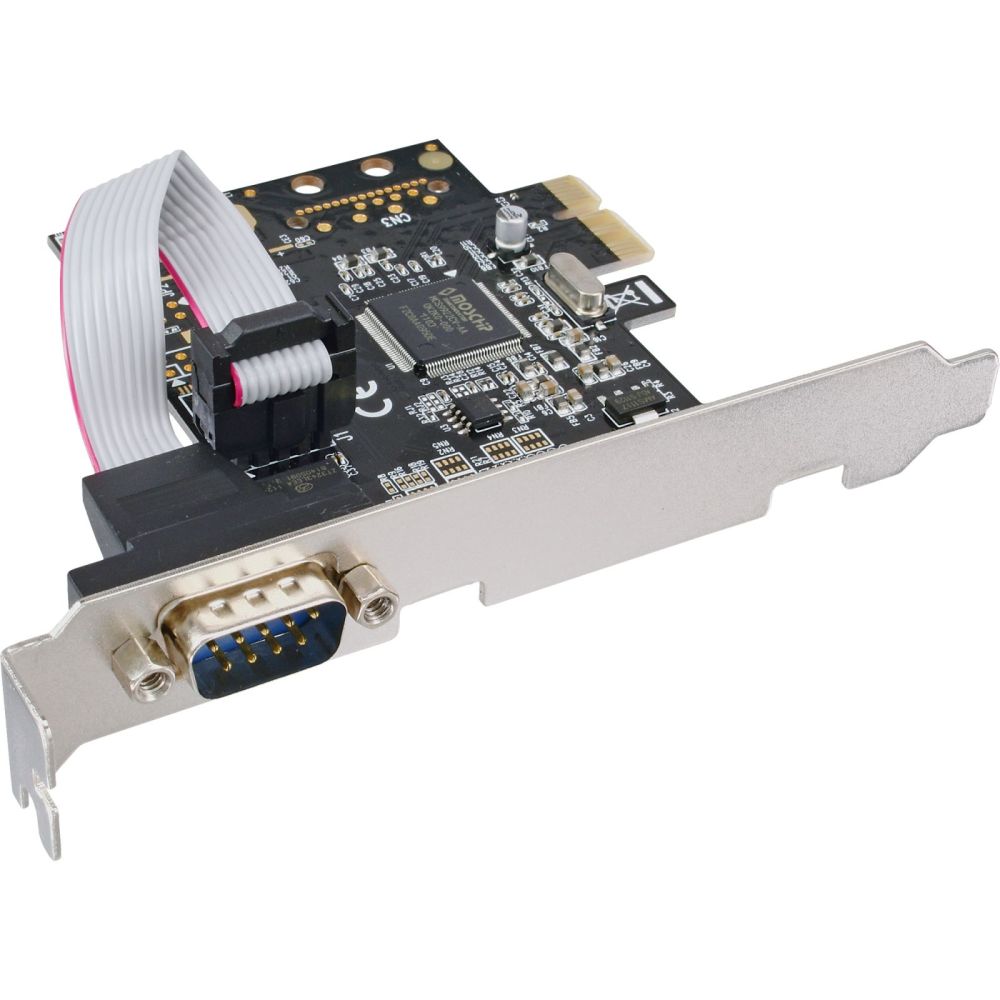

InLine® Interface Card 1 Port Serial 9 Pin PCIe
|
16,10 EUR |
|
|
( 19,16 EUR incl. VAT ) ≈ £13.48 | ≈ $18.02 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22197023 |
| Mfg Part No: | 76618D |
| UPC/EAN: | 4043718169986 |
| Weight: | 0.129 kg |
Product information for Inline 76618D:
Retrofit a serial RS-232 interface via PCIeRetrofit RS-232 port via PCIe: Provide a 9-pin serial interface via PCI Express x1.
Stable transmission even under high load: 256 byte FIFO and hardware/software flow control support smooth data exchange.
Wide operating system support: Usable with Windows, Linux, Mac OS, and DOS.
Flexible expansion: Multiple cards per PC can be integrated.
With this PCIe interface card, you add a 9-pin RS-232 port to your system. The card is compatible with the PCI Express specification 1.1 in single-lane operation and, with 256 byte deep FIFO buffers, provides reliable, low-latency communication. Supported data formats such as 5-8 data bits, various parities, and 1 or 2 stop bits make it easy to connect existing serial peripherals.
In professional IT environments, in on-site installations, and in service deployments, the card supports the continued operation of established serial devices within existing infrastructures of companies and public institutions.
Connector: 1x RS-232, 9-pin
Bus type: PCI Express x1
Standard: PCI Express 1.1
PCIe link rate: up to 2.5 Gb/s
UART compatibility: 16C450/16C550
FIFO: 256 byte transmit/receive buffers per port
RS-232 data rate: up to 250 kb/s per port
Flow control: hardware and software
Data bits: 5, 6, 7, 8
Parity: even, odd, none, space, mark
Stop bits: 1 or 2
Chipset: Moschip MCS9922
Operating systems: Windows 2000, XP 32/64 bit, Server 2003, Vista 32/64 bit, Windows 7, Linux, Mac OS, DOS
Expandability: Multiple cards per PC possible
Stable transmission even under high load: 256 byte FIFO and hardware/software flow control support smooth data exchange.
Wide operating system support: Usable with Windows, Linux, Mac OS, and DOS.
Flexible expansion: Multiple cards per PC can be integrated.
With this PCIe interface card, you add a 9-pin RS-232 port to your system. The card is compatible with the PCI Express specification 1.1 in single-lane operation and, with 256 byte deep FIFO buffers, provides reliable, low-latency communication. Supported data formats such as 5-8 data bits, various parities, and 1 or 2 stop bits make it easy to connect existing serial peripherals.
In professional IT environments, in on-site installations, and in service deployments, the card supports the continued operation of established serial devices within existing infrastructures of companies and public institutions.
Connector: 1x RS-232, 9-pin
Bus type: PCI Express x1
Standard: PCI Express 1.1
PCIe link rate: up to 2.5 Gb/s
UART compatibility: 16C450/16C550
FIFO: 256 byte transmit/receive buffers per port
RS-232 data rate: up to 250 kb/s per port
Flow control: hardware and software
Data bits: 5, 6, 7, 8
Parity: even, odd, none, space, mark
Stop bits: 1 or 2
Chipset: Moschip MCS9922
Operating systems: Windows 2000, XP 32/64 bit, Server 2003, Vista 32/64 bit, Windows 7, Linux, Mac OS, DOS
Expandability: Multiple cards per PC possible
| Design | |
| Internal | |
| Features | |
| Chipset | MosChip MCS9901 |
| Other features | |
| Data transfer rate | 2500 Mbit/s |
| Compatible operating systems | Windows 2000, XP 32/64 Bit, Server 2003, Vista 32/64 Bit, Linux, Mac OS, DOS |
| Mac compatibility | |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 178 mm |
| Package height | 40 mm |
| Package weight | 59 g |
| Package volume | 1000 cm³ |
| Ports & interfaces | |
| Host interface | PCIe |
| Output interface | Serial |
| Serial ports quantity | 1 |
| Technical data | |
| Length packaging | 0.178m |
| Type | Interface card |
| Packaging volume | 0.0010m³ |
| Chipset | Moschip MCS9922 |
| Height packaging | 0.040m |
| Net weight | 0.059kg |
| Transmission rate | 2.5Gb/s |
| Slot | PCIe |
| Connections external | 1x serial 9pin |
| Connections internal | None |
| Interface | Serial |
| Weight | 0.129kg |
| Width packaging | 0.145m |
| Low Profile | |
| Weight & dimensions | |
| Depth | 1.29 mm |
| Weight | 59 g |
