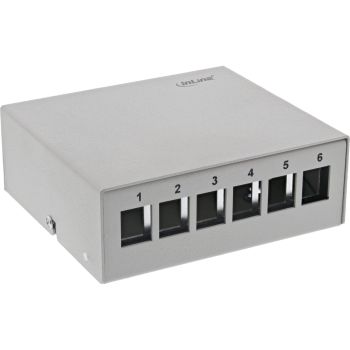

InLine® Surface patch box, 6x Keystone RJ45, metal, light grey RAL7035 content_copy

Surface-mounted patch panel for RJ45 keystone modules for DIN rail mountingFlexible Keystone configuration: The surface-mounted box accommodates 6 RJ45 keystone modules and can be configured to provide a clear overview of the connections.
Easy DIN rail mounting: The included bracket allows mounting on a DIN rail. The patch panel box does not need to be removed for installation of the mounting bracket.
Organized cable routing: Rear cable clamps and cable tie fastening support structured routing and fixing of the connected network cables in the housing.
Robust steel housing: The housing, made of SPCC steel with plastic powder coating, is designed for permanent installations and combines a stable construction with a clear layout.
Flush module positioning: The two-stage array aligns the installed modules flush with the front panel. The standard front cutout supports the installation of RJ45 keystone modules.
The InLine patch panel is designed for the structured consolidation of multiple network connections at a single point. It can be mounted directly or integrated into electrical distribution systems. This allows for the clear and organized consolidation of connections at a central point of connection. The required RJ45 keystone modules are not included and must be purchased separately.
Protection rating: IP20
Operating/storage temperature: -40 to +70 °C
Operating/storage humidity: 10-85%
Reserved grounding wire connection screw

Design
Product colour	Grey
Material	Plastic, Steel
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 85%
Packaging data
Package width	120 mm
Package depth	140 mm
Package height	54 mm
Package weight	499 g
Package volume	1000 cm³
Technical data
Weight	0.499kg
Length packaging	0.140m
Article length	12.50cm
Height packaging	0.054m
Article width	4.50cm
Packaging volume	0.0010m³
Article height	11.30cm
Number of ports	6
Colour	Grey (RAL7035)
Net weight	0.447kg
Network category	Module dependent
Mounting	Surface-mounted / top-hat rail
Width packaging	0.120m
Type	Surface box
Version	Surface-mounted / top-hat rail
Shielding
Keystone SNAP-In compatible
Weight & dimensions
Dimensions (WxDxH)	45 x 125 x 113 mm
Width	45 mm
Height	113 mm
Depth	125 mm
Weight	447 g

---
