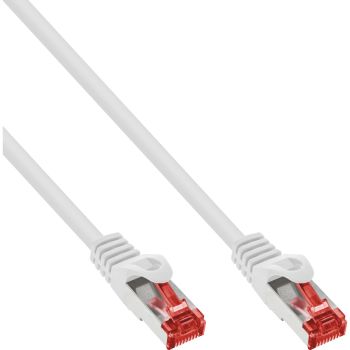

InLine® Patch cable, S/FTP (PiMf), Cat.6, 250MHz, PVC, CCA, white, 0.25m content_copy

Stable Gigabit performance: Supports 1 Gb/s connections at frequencies up to 250 MHz for fast and stable networks.
Optimal interference immunity: S/FTP shielding provides effective protection against electromagnetic interference in demanding environments.
Robust RJ45 connectors: Molded connectors with bend and snap protection ensure a durable and resilient connection.
Practical handling: Color coding and printed length information facilitate the installation and management of complex networks.
Universal compatibility: Standard-compliant 1:1 assignment according to EIA/TIA 568B ensures maximum compatibility with network components.
The InLine® Cat.6 patch cables with S/FTP shielding offer a reliable solution for modern Gigabit networks. Data rates of up to 1 Gb/s at a frequency of 250 MHz are supported. The combination of pair-wise metal foil shielding (PiMf) and additional overall braiding provides the cables with optimum protection against external interference.
The molded RJ45 connectors with molded bend and snap protection ensure a durable and secure connection. Thanks to the printed length information and color coding, the cables can be quickly and easily identified—ideal for structured installations in home networks, offices, or server rooms.
The flexible PVC jacket and AWG27 CCA strands allow for easy installation even in confined spaces. The 1:1 assignment according to EIA/TIA 568B ensures a reliable connection to routers, switches, patch panels, and network sockets.
2x RJ45 plugs, molded
S/FTP shielding (PiMf + braid)
PVC jacket, flexible
Supports 1 Gb/s up to 250 MHz
AWG27 wire cross-section, CCA material
Standard 1:1 assignment according to EIA/TIA 568B
With length specification and color coding

Certificates
Compliance certificates	RoHS
Features
Product colour	White
Cable length	0.25 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
AWG wire size	27
Data transfer rate	1000 Mbit/s
Frequency	250 MHz
Other features
Dimensions (WxDxH)	12 x 250 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	85 mm
Package depth	125 mm
Package height	17 mm
Package weight	19 g
Package volume	200 cm³
Package type	Polybag
Technical data
Assignment	1:1
Operation temperature	-10 to +60°C
Signal	Network
Colour	White
Packaging volume	0.0002m³
Design	Round cable
Width packaging	0.085m
Height packaging	0.017m
Side B	RJ45 plug straight
Diameter	AWG 27
Conductor material	CCA (copper/aluminium)
Net weight	0.016kg
Type	Cat.6
Length packaging	0.125m
Article height	1.50cm
Data transmission rate	1Gb/s
Article length	25.00cm
Weight	0.019kg
Packing	Retail
Outer diameter	5.9mm
Article width	1.20cm
Sheath	PVC
Patch cable category	Cat.6
Storage temperature	-20 to +70°C
Side A	RJ45 plug straight
Shielding	S/FTP (PiMf)
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	12 mm
Depth	250 mm
Height	15 mm
Weight	16 g

---
