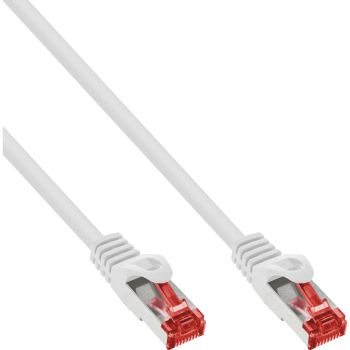

InLine® Patch cable, S/FTP (PiMf), Cat.6, 250MHz, PVC, CCA, white, 7.5m content_copy

Stable Gigabit performance: Supports 1 Gb/s connections at frequencies up to 250 MHz for fast and stable networks.
Optimal interference immunity: S/FTP shielding provides effective protection against electromagnetic interference in demanding environments.
Robust RJ45 connectors: Molded connectors with bend and snap protection ensure a durable and resilient connection.
Practical handling: Color coding and printed length information facilitate the installation and management of complex networks.
Universal compatibility: Standard-compliant 1:1 assignment according to EIA/TIA 568B ensures maximum compatibility with network components.
The InLine® Cat.6 patch cables with S/FTP shielding offer a reliable solution for modern Gigabit networks. Data rates of up to 1 Gb/s at a frequency of 250 MHz are supported. The combination of pair-wise metal foil shielding (PiMf) and additional overall braiding provides the cables with optimum protection against external interference.
The molded RJ45 connectors with molded bend and snap protection ensure a durable and secure connection. Thanks to the printed length information and color coding, the cables can be quickly and easily identified—ideal for structured installations in home networks, offices, or server rooms.
The flexible PVC jacket and AWG27 CCA strands allow for easy installation even in confined spaces. The 1:1 assignment according to EIA/TIA 568B ensures a reliable connection to routers, switches, patch panels, and network sockets.
2x RJ45 plugs, molded
S/FTP shielding (PiMf + braid)
PVC jacket, flexible
Supports 1 Gb/s up to 250 MHz
AWG27 wire cross-section, CCA material
Standard 1:1 assignment according to EIA/TIA 568B
With length specification and color coding

Certificates
Certification	EIA / TIA 568B
Features
Product colour	White
Cable length	7.5 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Conductor material	Copper-Clad Aluminium (CCA)
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
AWG wire size	27
Data transfer rate	1000 Mbit/s
Frequency	250 MHz
Other features
Dimensions (WxDxH)	12 x 7500 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	145 mm
Package depth	155 mm
Package height	30 mm
Package weight	216 g
Package volume	700 cm³
Package type	Polybag
Technical data
Data transmission rate	1Gb/s
Article length	750.00cm
Weight	0.216kg
Design	Round cable
Assignment	1:1
Operation temperature	-10 to +60°C
Length packaging	0.155m
Article height	1.50cm
Type	Cat.6
Length	7.50m
Signal	Network
Conductor material	CCA (copper/aluminium)
Width packaging	0.145m
Height packaging	0.030m
Side B	RJ45 plug straight
Net weight	0.213kg
Diameter	AWG 27
Side A	RJ45 plug straight
Shielding	S/FTP (PiMf)
Patch cable category	Cat.6
Storage temperature	-20 to +70°C
Packing	Retail
Outer diameter	5.9mm
Article width	1.20cm
Sheath	PVC
Colour	White
Packaging volume	0.0007m³
UL
PoE/PoE+/PoE++
Weight & dimensions
Width	12 mm
Depth	7500 mm
Height	15 mm
Weight	213 g

---
