InLine® patch cable, Cat.6A, S/FTP, TPE (LSZH), CCA, grey, 1m
|
1,55 EUR |
|||||||||||
|
( 1,84 EUR incl. VAT ) ≈ £1.30 | ≈ $1.73 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196584 | ||||||||||
| Mfg Part No: | 72601 | ||||||||||
| UPC/EAN: | 4043718336913 | ||||||||||
| Weight: | 0.044 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 72601:

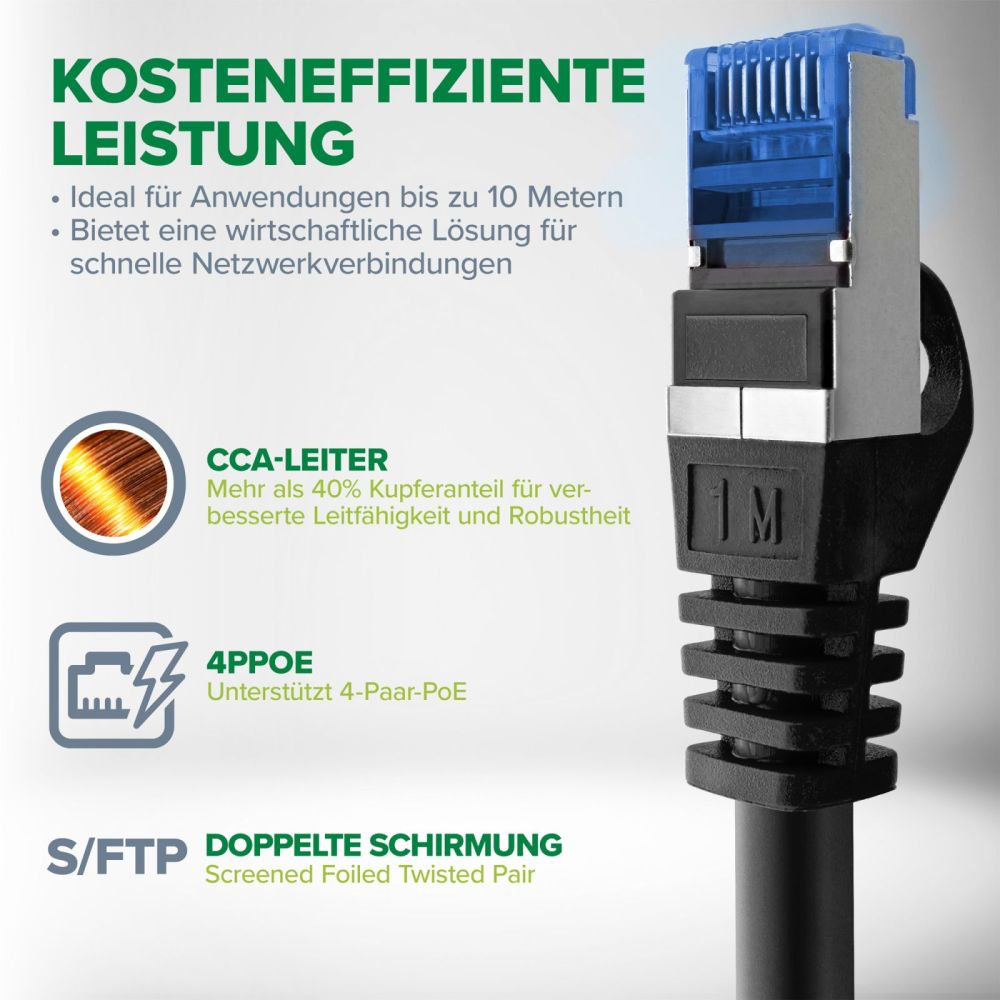

Cost-efficient network solution with high-quality CCA alloy: 40% copper content for improved conductivity and reduced signal loss.

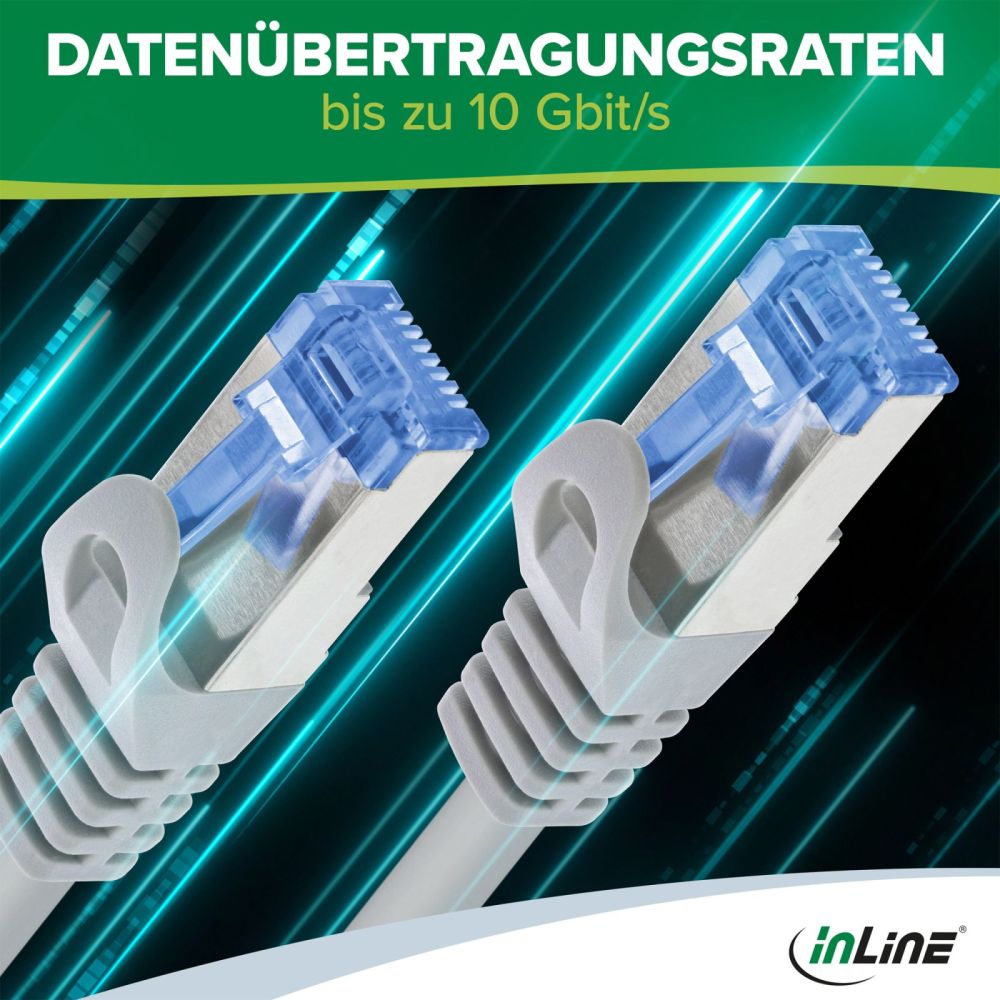

Powerful for modern networks: Supports up to 10 Gbit/s and a bandwidth of 500 MHz for stable connections.
4PPOE support for maximum efficiency: PoE, PoE+ and PoE++ with up to 90 watts of power for network devices such as cameras, access points or VoIP telephones.

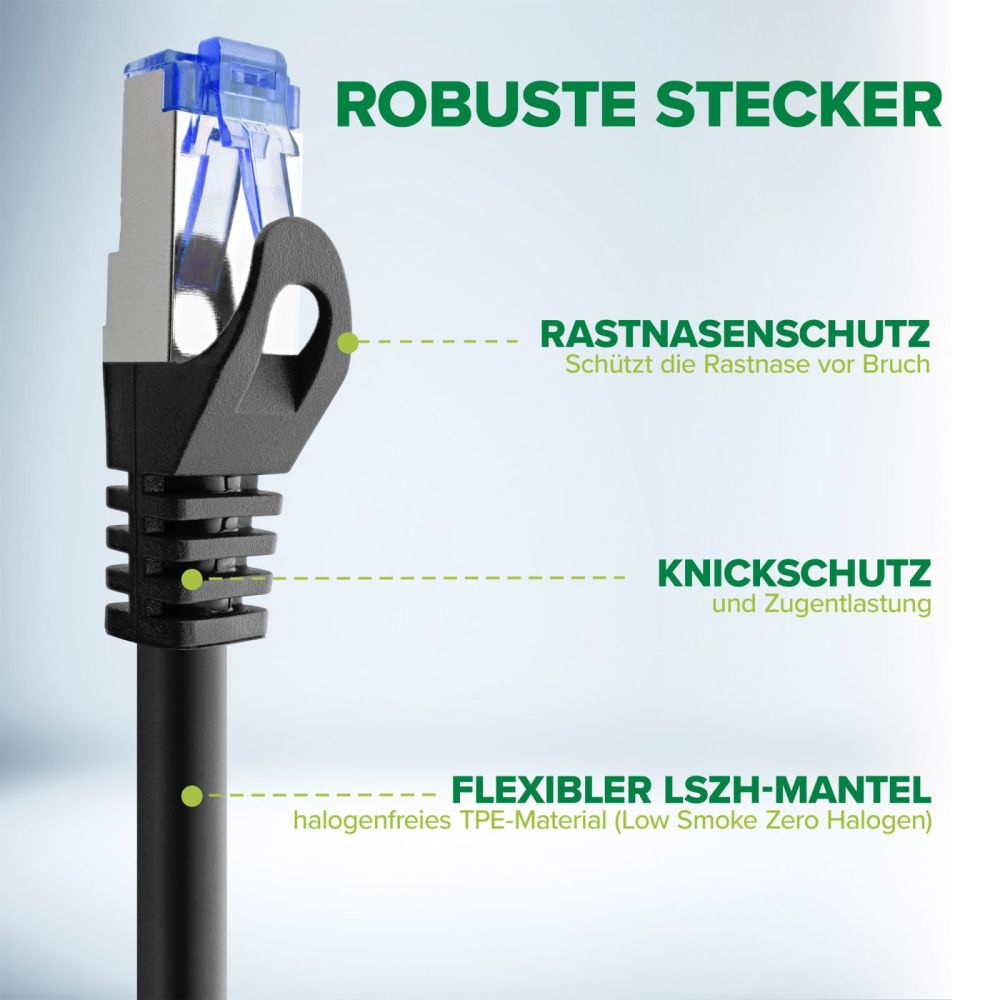

Flexible, flame-retardant cable sheath: The TPE sheath (LSZH) offers high flexibility for tight installation conditions and reduces smoke development in the event of fire.
Safe & interference-free connection: S/FTP shielding (pair and overall shielding) reliably protects against electromagnetic interference.
The InLine® Cat.6A S/FTP patch cable is the perfect choice for network infrastructures that require high performance at an economical price. Thanks to a high-quality CCA alloy of copper-clad aluminum conductors with 40% copper content, it offers improved conductivity compared to conventional CCA cables. This reduces electrical resistance and enables stable transmission at up to 10 Gbit/s over distances of up to 10 meters.
Another advantage: the cable is 4PPOE-capable and supports PoE, PoE+ and PoE++ with up to 90 watts of power. This means that IP cameras, VoIP telephones and access points can be efficiently supplied with power via the network cable - a cost-effective solution for professional applications.The double shielding (S/FTP) minimizes interference and ensures a stable connection even in demanding environments such as data centers, industrial halls or office buildings. The halogen-free TPE jacket (LSZH) is not only flame-retardant, but also particularly flexible – ideal for installations with limited space.
Please note: Due to the material properties of CCA, this cable is limited to lengths of up to 10 meters. For longer distances, we recommend our copper patch cables, which guarantee consistent signal quality.
Additional technical specifications:
Conductor material: High-quality CCA alloy made from copper-clad aluminum conductors (40% copper)
Sheath material: TPE (LSZH – flame retardant, halogen-free, flexible)
Operating temperature: -20 to +75 °C
Outlet diameter: 6.0 mm
Population: 1:1 according to T568B
PoE support: 4PPOE, compatible with PoE/PoE+/PoE++ (up to 90 W)
Powerful for modern networks: Supports up to 10 Gbit/s and a bandwidth of 500 MHz for stable connections.
4PPOE support for maximum efficiency: PoE, PoE+ and PoE++ with up to 90 watts of power for network devices such as cameras, access points or VoIP telephones.
Flexible, flame-retardant cable sheath: The TPE sheath (LSZH) offers high flexibility for tight installation conditions and reduces smoke development in the event of fire.
Safe & interference-free connection: S/FTP shielding (pair and overall shielding) reliably protects against electromagnetic interference.
The InLine® Cat.6A S/FTP patch cable is the perfect choice for network infrastructures that require high performance at an economical price. Thanks to a high-quality CCA alloy of copper-clad aluminum conductors with 40% copper content, it offers improved conductivity compared to conventional CCA cables. This reduces electrical resistance and enables stable transmission at up to 10 Gbit/s over distances of up to 10 meters.
Another advantage: the cable is 4PPOE-capable and supports PoE, PoE+ and PoE++ with up to 90 watts of power. This means that IP cameras, VoIP telephones and access points can be efficiently supplied with power via the network cable - a cost-effective solution for professional applications.The double shielding (S/FTP) minimizes interference and ensures a stable connection even in demanding environments such as data centers, industrial halls or office buildings. The halogen-free TPE jacket (LSZH) is not only flame-retardant, but also particularly flexible – ideal for installations with limited space.
Please note: Due to the material properties of CCA, this cable is limited to lengths of up to 10 meters. For longer distances, we recommend our copper patch cables, which guarantee consistent signal quality.
Additional technical specifications:
Conductor material: High-quality CCA alloy made from copper-clad aluminum conductors (40% copper)
Sheath material: TPE (LSZH – flame retardant, halogen-free, flexible)
Operating temperature: -20 to +75 °C
Outlet diameter: 6.0 mm
Population: 1:1 according to T568B
PoE support: 4PPOE, compatible with PoE/PoE+/PoE++ (up to 90 W)
| Certificates | |
| Compliance certificates | CE, REACH, RoHS |
| Features | |
| Product colour | Grey |
| Cable length | 1 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper-Clad Aluminium (CCA) |
| AWG wire size | 26 |
| Data transfer rate | 10000 Mbit/s |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) | |
| Molded cable boot | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 75 °C |
| Other features | |
| Dimensions (WxDxH) | 12 x 1000 x 16 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 1200 mm |
| Package depth | 145 mm |
| Package height | 15 mm |
| Package weight | 44 g |
| Package volume | 300 cm³ |
| Package type | Polybag |
| Technical data | |
| Height packaging | 0.015m |
| Outer diameter | 6.0mm |
| Sheath | TPE (LSZH) |
| Max. supported power | 90W |
| Packaging volume | 0.0003m³ |
| Article width | 1.20cm |
| Packing | Retail |
| Length packaging | 0.145m |
| Signal | Network |
| Colour | Grey |
| Side B | RJ45 plug straight |
| Net weight | 0.037kg |
| Data transmission rate | 10Gb/s |
| Assignment | 1:1 |
| Wire pairs used for power transmission | All |
| Type | Cat.6A |
| Operation temperature | -20 to +75°C |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Side A | RJ45 plug straight |
| Width packaging | 1.200m |
| Article length | 100.00cm |
| Weight | 0.044kg |
| Conductor material | CCA (copper/aluminium) |
| Max. supported data transfer rate | 10Gb/s |
| Design | Round cable |
| Patch cable category | Cat.6A |
| Article height | 1.60cm |
| Shielding | S/FTP (PiMf) |
| UL | |
| PoE/PoE+/PoE++ | |
| Gold plated contacts | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 1000 mm |
| Height | 16 mm |
| Outer diameter | 5 mm |
| Weight | 37 g |
