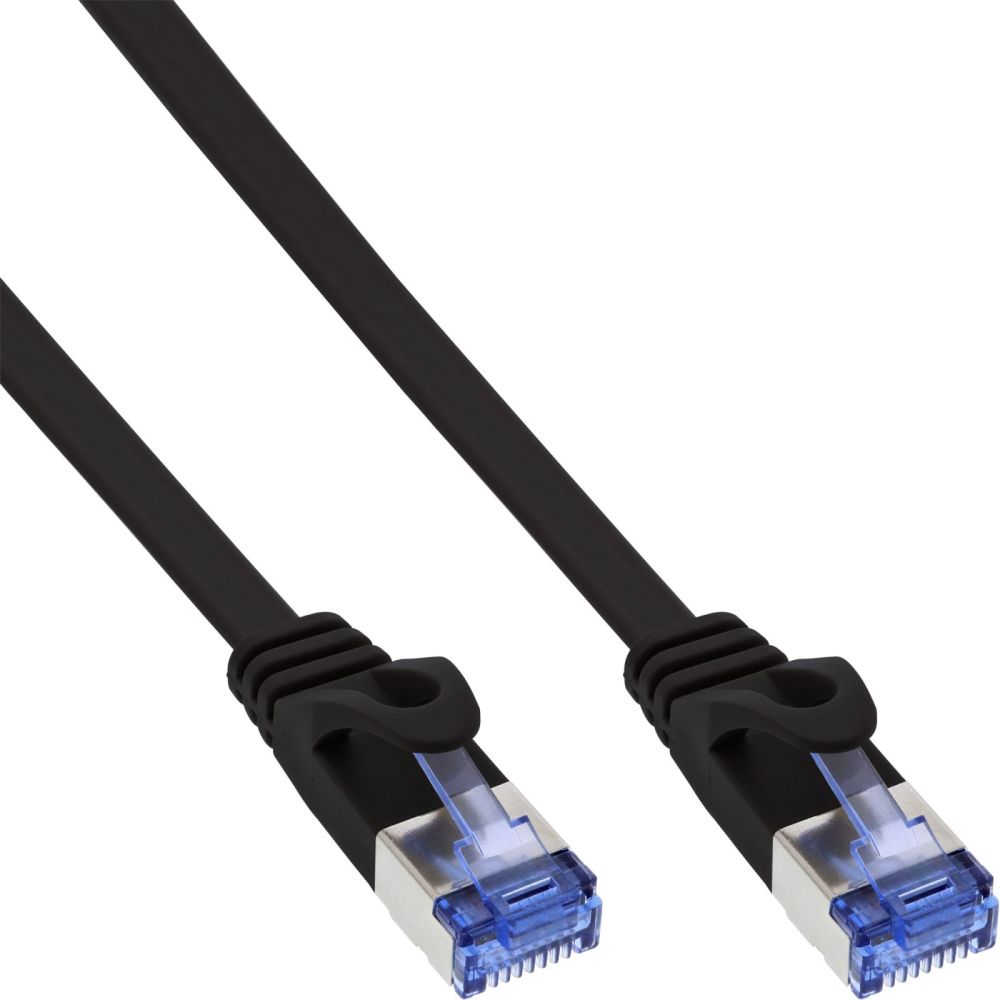

InLine® Patch cable flat, U/FTP, Cat.6A, black, 3 m content_copy

Extra flat installation and reliable connection with speeds up to 10 Gb/sSpace-saving installation: The extra-flat and flexible design makes it easier to route cables in tight spaces, behind furniture or along walls and baseboards.
Powerful connection: Cat.6A supports data transfer rates up to 10 Gb/s and requirements up to 500 MHz. This allows you to use a fast wired network connection for compatible devices.
Reduced interference: The U/FTP shielding covers each of the four twisted pairs of wires with metal foil. This ensures protected signal transmission even in demanding network cabling environments.
Securely plugged in: Two straight, molded RJ45 connectors with locking tab protection support a stable connection and protect the locking tabs during installation, use and repeated plugging and unplugging.
Clearly assigned: The blue-colored connector facilitates visual differentiation during wiring. The 1:1 pinout according to EIA/TIA-568B supports a standardized connection layout.
The flat Cat.6A patch cable combines a high-performance network connection with exceptionally space-saving cable management. Its flat and flexible design allows for easy routing behind furniture, along walls, or in tight spaces.
Two straight RJ45 connectors allow for direct connection of compatible network ports. The molded connectors feature a locking tab guard and ensure secure handling during installation. The 1:1 pinout is color-coded according to EIA/TIA-568B.
In the U/FTP version, four twisted pairs of wires are each shielded with metal foil. This ensures protected signal transmission. Cat.6A meets requirements up to 500 MHz and enables data transfer rates up to 10 Gb/s.
The PVC sheath and solid copper strands complement the technical design. This makes the network cable suitable for direct wired connections where flexible and space-saving installation is required.
Construction: Flat cable
Pin assignment: 1:1
Data transfer rate: up to 10 Gb/s
Conductor material: CU (copper)
Sheath: PVC
Patch cable category: Cat.6A
Frequency: up to 500 MHz
Shielding: U/FTP
Side A: RJ45 straight connector
Side B: RJ45 straight connector
Signal: Network
Four pairs of wires, twisted together
Color coding according to EIA/TIA-568B
Potted connectors
Latch guard

Certificates
Certification	EIA / TIA-568B
Features
Product colour	Black
Cable length	3 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
Twisted pair coupling type	4x2
AWG wire size	32
Frequency	500 MHz
Other features
Dimensions (WxDxH)	12 x 3000 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	138 mm
Package depth	115 mm
Package height	17 mm
Package weight	66 g
Package volume	300 cm³
Package type	Polybag
Technical data
Assignment	1:1
Article length	300.00cm
Colour	Black
Height packaging	0.017m
Outer diameter	1.75x6.6mm
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Sheath	PVC
Side A	RJ45 plug straight
Max. supported PoE standard	802.3af
Type	Cat.6A
Net weight	0.061kg
Article width	1.20cm
Data transmission rate	10Gb/s
Conductor material	CU (copper)
Design	Flat cable
Width packaging	0.138m
Article height	1.50cm
Weight	0.066kg
Packaging volume	0.0003m³
Packing	Retail
Length packaging	0.115m
Max. supported data transfer rate	10Gb/s
Side B	RJ45 plug straight
Max. supported power	15.4W
Shielding	U/FTP
Diameter	AWG 32
Patch cable category	Cat.6A
Signal	Network
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	12 mm
Depth	3000 mm
Height	15 mm
Weight	61 g

---
