InLine® 8-port gigabit switch, 1 Gb/s, desktop, metal housing, fanless content_copy

Fast and stable network connection: The 8-port Gigabit switch enables the reliable connection of multiple Ethernet devices with up to 1 Gb/s per port and supports consistent data transmission in the local network.
Easy to use without configuration: The switch is unmanaged and completely plug-and-play. All connected devices are automatically recognized, so no settings or software are required.
Quiet operation for flexible locations: Thanks to its fanless design, the network switch operates silently. It is ideal for living rooms, offices or other noise-sensitive environments.
Rugged and compact metal housing: The sturdy metal housing supports efficient heat dissipation and ensures reliable continuous operation in a compact design on the desk or on the wall.
High LAN compatibility: Eight RJ45 ports with auto-negotiation and auto MDI/MDIX support 10Base-T, 100Base-TX and 1000Base-T and enable flexible integration into existing Ethernet networks.
The InLine 8-Port Gigabit Switch is a practical solution for expanding wired networks. It enables the reliable connection of multiple LAN devices such as PCs, notebooks, NAS or smart TVs via eight Ethernet ports with 10/100/1000 Mb/s. The switch is unmanaged and ready for immediate use. No configuration is required. Thanks to the fanless design, the network switch operates completely silently. The robust metal housing supports efficient heat dissipation and ensures stable operation even during prolonged use. The compact design is suitable for desktop use. In addition, pre-punched mounting holes on the underside enable wall mounting. The switch uses the store-and-forward method and supports flow control for stable data transmission. Auto-negotiation and Auto MDI/MDIX ensure that connected devices are automatically connected at the optimum speed. This makes the switch ideal for setting up or expanding a reliable Ethernet network.

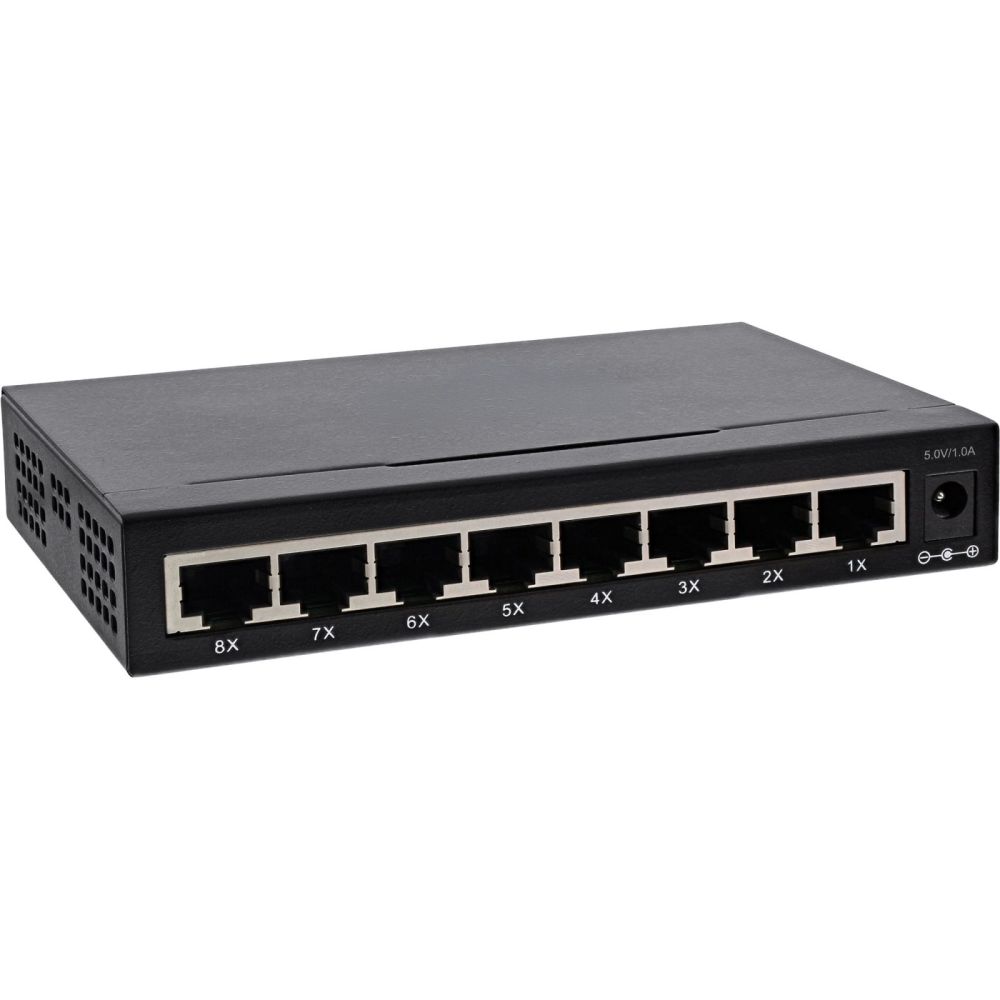

8x RJ45 10/100/1000 Mb/s ports
Store-and-forward switching
MAC address table with 8K entries
Backbone bandwidth 1 Gb/s
IEEE802.3x flow control
Auto MDI/MDIX
External power supply 5.0 V / 1.0 A
Wall mounting possible

Data transmission
Forwarding rate	0.1488 Mpps
MAC address table	1000 entries
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Design
Product colour	Black

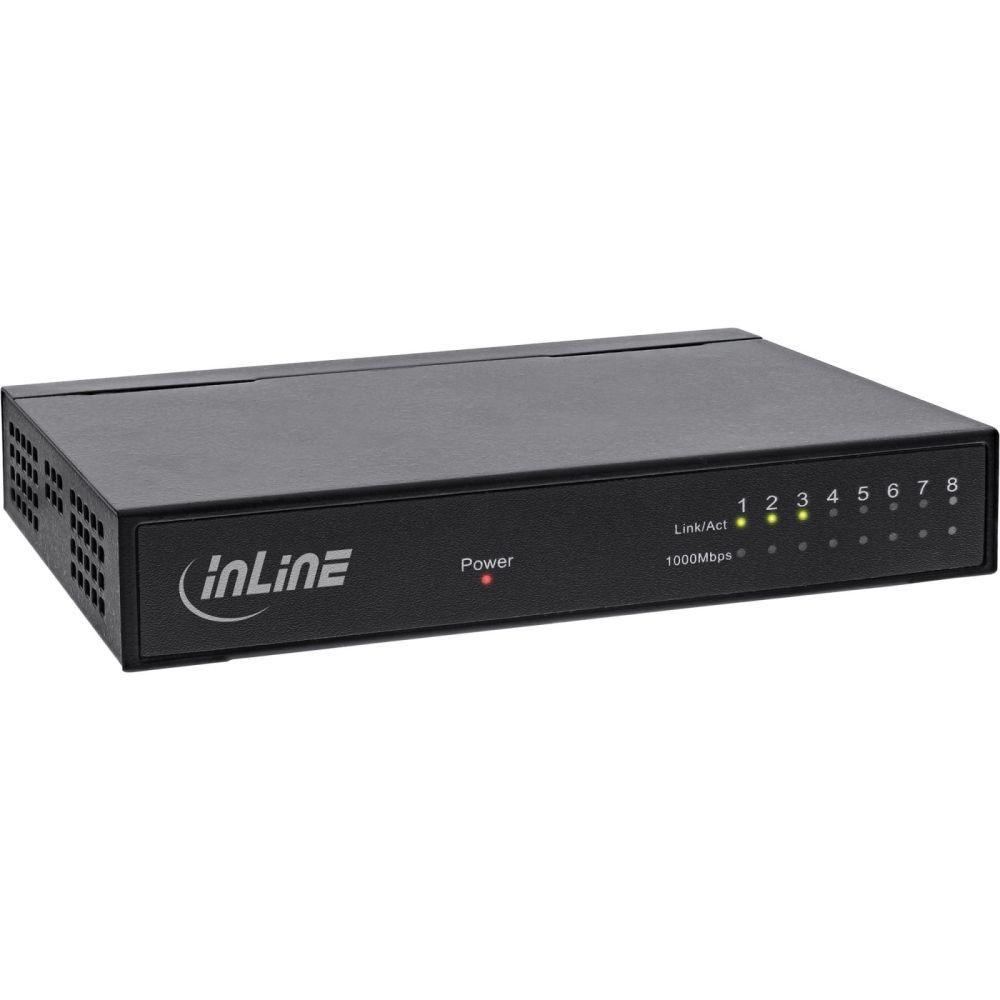

LED indicators	LAN, Power
Wall mountable
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support
Full duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address auto-learning supported
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Other features
Dimensions (WxDxH)	145 x 4.09 x 75 mm
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports	8
Packaging data
Package width	60 mm
Package depth	190 mm
Package height	140 mm
Package volume	1600 cm³
Package weight	303 g
Performance
Maximum data transfer rate	1000 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power
Input current	0.5 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Technical data
Weight	0.409kg
Type	Desktop switch
Width packaging	0.060m
Article length	14.50cm
Design	Desktop (wall mounting possible)
Article width	7.50cm
Transmission speed	10/100/1000Mb/s
Packaging volume	0.0016m³
Net weight	0.303kg
Length packaging	0.190m
Number of ports	8
Height packaging	0.140m
Article height	2.80cm
Fans
PoE
Managed
Fibre optics
Weight & dimensions
Width	145 mm
Depth	4.09 mm
Height	75 mm
Weight	2.8 kg

---
