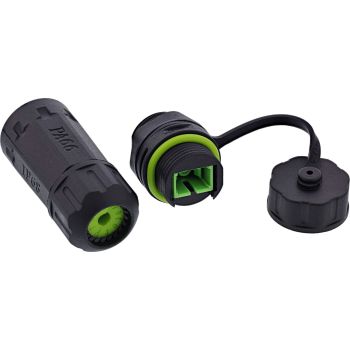

InLine® Fiber optic coupler SC, short, IP68, 2x SC socket, M20 content_copy

Compact fiber optic coupling: Only 74 mm long – ideal for installation in confined spaces in outdoor enclosures or network cabinets.
IP68-protected connection: Dustproof and waterproof – for a secure fiber optic connection in adverse environmental conditions.
Robust and durable: Housing made of PA66 plastic with silicone seal – for lasting protection and mechanical stability.
Easy integration: With pre-assembled SC simplex sockets – tool-free installation via screw connection and rubber seal.
M20 thread: Standardized size – easy to use in enclosures, distribution panels, or industrial installations.
The InLine® SC fiber optic cable coupling in a short design offers a robust, protected connection for fiber optic cables in demanding environments. With a compact length of only 74 mm, it is particularly suitable for installations with limited space – such as in network cabinets, outdoor distributors, or industrial applications.
The coupler is equipped with two SC simplex sockets and is suitable for single-mode connections with UPC or APC polish. Thanks to its
IP68 protection class, it is reliably protected against water, dust, and temperature fluctuations from -40 °C to +85 °C. The housing is made of durable nylon (PA66), complemented by a silicone gasket for reliable sealing.
No tools are required for installation: simply feed the cable through the gasket, screw it into the M20 housing, and seal it with the green sealing ring, as illustrated in the instructions. This creates a durable, vibration-proof connection for indoor and outdoor fiber optic networks.
This fiber optic coupler is the ideal choice for professional installations where reliability and compactness are required.
Material: Nylon (PA66)
Seal: Silicone
Module: SC Simplex female/female
Thread size: M20
Application: Single-mode UPC/APC
For cable diameters: 2.9 mm
Dimensions: 74 x 26 mm
IP protection class:
IP68
Temperature resistance: -40 °C to +85 °C

Certificates
Compliance certificates	TÜV mark
Features
Product colour	Black
Material	Polyamide, Silicone
Connector(s)	Fiber optic coupler SC, short, IP68, 2x SC socket, M20
Logistics data
Country of origin	China
Package volume	200 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	30 mm
Package weight	35 g
Technical data
Weight	0.035kg
Height packaging	0.030m
Variant	IP68
Width packaging	0.070m
Article height	2.50cm
Length packaging	0.140m
Article length	8.50cm
Packaging volume	0.0002m³
Article width	2.50cm
Side B	SC female
Net weight	0.029kg
Side A	SC female
Colour	Black
Weight & dimensions
Width	25 mm
Depth	85 mm
Height	25 mm
Weight	29 g

---
