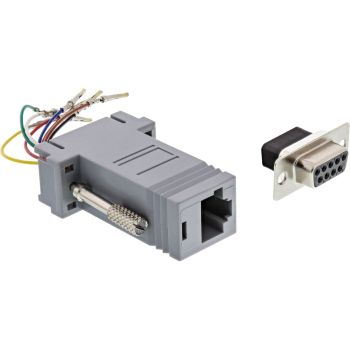

InLine® Adapter 9 Pin Sub-D female / RJ45 female content_copy

Flexibly adapt a serial connection to RJ45Custom pin assignment: Freely configurable pins on the Sub-D 9-pin socket for project-specific assignments.
Direct coupling to RJ45: Connects serial signals to an RJ45 socket, for example for programming routers or ISDN systems.
Fast adjustment in the field: The assignment can be changed as needed without having to purchase new hardware.
Practical handling: Lightweight plastic housing for everyday use in workshop and field service.
The adapter connects a Sub-D 9-pin socket to an RJ45 socket, enabling serial connections with custom pin assignment. The freely configurable pins on the Sub-D socket allow mapping different pinouts and thus, for example, implementing configuration access to routers or ISDN systems via the serial interface.
The solution is particularly helpful in professional IT environments, for on-site installations and in service deployments, when existing infrastructures require different pin assignments and a fast, adaptable implementation is needed.
Connector 1: Sub-D 9-pin socket
Connector 2: RJ45 socket
Housing: plastic
Pin assignment: freely configurable on the Sub-D socket

Logistics data
Package volume	100 cm³
Packaging data
Package width	85 mm
Package depth	80 mm
Package height	17 mm
Package weight	22 g
Ports & interfaces
Connector 2	RJ45
Connector 1 gender	Female
Connector 2 gender	Female
Technical data
Packaging volume	0.0001m³
Side B	RJ45 female
Type	Plastic
Signal	Data
Width packaging	0.085m
Weight	0.022kg
Length packaging	0.080m
Side A	9pin female
Height packaging	0.017m
Net weight	0.020kg
Weight & dimensions
Weight	20 g

---
