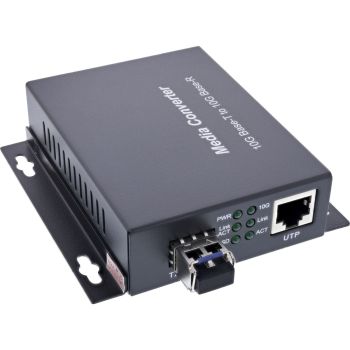

InLine® Network Media Converter 10Gb/s TP to SFP+ fiber optic (for LC Duplex) content_copy

Media converter for easy conversion from copper to fiber
Supports 10 Gb/s high-speed data transmission
LFP function for network monitoring and easy maintenance
Low power consumption and reliable operation
Plug-and-play ready for quick installation
The InLine® Network Media Converter is the perfect solution for the seamless integration of fiber optics into existing networks. It enables efficient signal conversion from twisted-pair copper connections to single-mode fiber optics with a maximum range of 10 km.
With support for 10 Gb/s data transfer rates, the converter ensures fast and stable connections. The LFP function facilitates maintenance and detects errors in the network immediately. Thanks to its energy-efficient design and low heat generation, the device ensures a long service life and trouble-free operation.
Thanks to the simple plug-and-play installation, the media converter is ready for immediate use and an ideal choice for corporate networks and data centers.
Technical specifications:
Supported transmission rates:Twisted Pair: 10/100/1000 Mb/s (10/100/1000Base-T), 2.5/5/10 Gb/s (2.5/5/10GBase-T)
Fiber: 10 Gb/s (10GBase-R)
Maximum transmission distance: 10 km (single-mode fiber)
Wavelength: 1310nm
UTP port: RJ45 socket
Fiber connection: SFP module port
Status LEDs for connection and activity indicator
Operating temperature: 0 °C to 5 5°C
Storage temperature: -40 °C to 70 °C
Humidity: 5% - 80%, non-condensing
Dimensions: 94 x 93.3 x 26 mm
External plug-in power supply: 12 V DC/1 A
Scope of delivery:
1x InLine® network media converter with mounting brackets
1x plug-in power supply 12 V DC / 1 A
1x 4-pack of screws & wall plugs
1x instruction manual (German / English)
Pre-installed SFP module

Certificates
Compliance certificates	TÜV mark
Features
LED indicators	Status
Product colour	Black
Internal
Logistics data
Country of origin	Taiwan
Network
Maximum data transfer rate	10000 Mbit/s
Converter input interface	10Base-T, 10GBase-T, 100Base-T, 1000Base-T
Converter output interface	10GBASE-R
Networking standards	IEEE 802.3x
Ethernet interface type	5 Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet LAN data rates	10,1000,2500,100,5000,10000 Mbit/s
Link Fault Pass-through (LFP)
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 80%
Other features
Dimensions (WxDxH)	94 x 110 x 26 mm
Packaging content
AC adapter included
Manual
Packaging data
Package width	124 mm
Package depth	230 mm
Package height	52 mm
Package volume	1400 cm³
Package weight	388 g
Package type	Box
Performance
Maximum transfer distance	10000 m
Wavelength	1310 nm
Fiber mode structure	Single-mode
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+, LCD
Power
Output voltage	12 V
Output current	1 A
Technical data
Type	Media converter
Fibre type	Single mode
Input	RJ45
Weight	0.388kg
Net weight	0.290kg
Article height	2.60cm
Length packaging	0.230m
Output	SFP+ (LC Duplex)
Packaging volume	0.0014m³
Operation temperature	0 to +55°C
Max. distance	10km
Wavelength	1310nm
Transmission speed	10Gb/s
Article length	11.00cm
Storage temperature	-40 to +70°C
Height packaging	0.052m
Width packaging	0.124m
Article width	9.40cm
Weight & dimensions
Width	94 mm
Depth	110 mm
Height	26 mm
Weight	290 g

---
