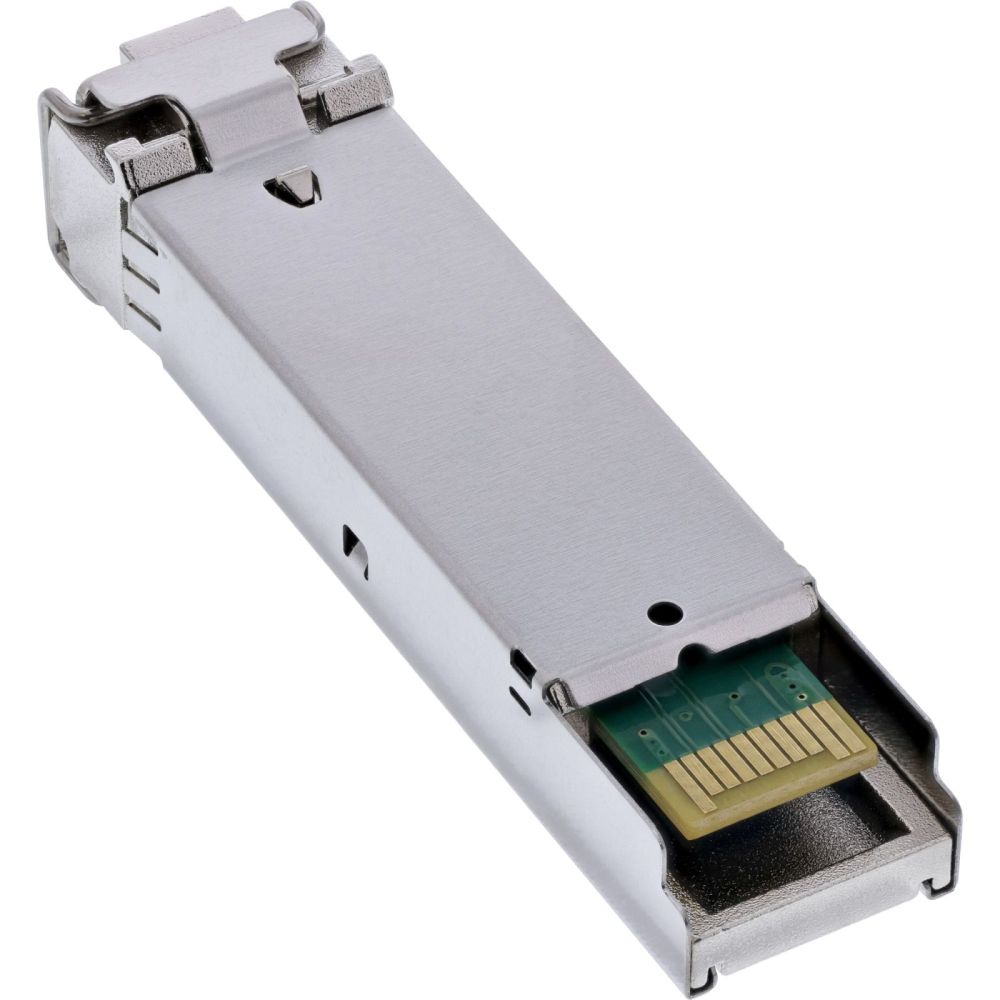

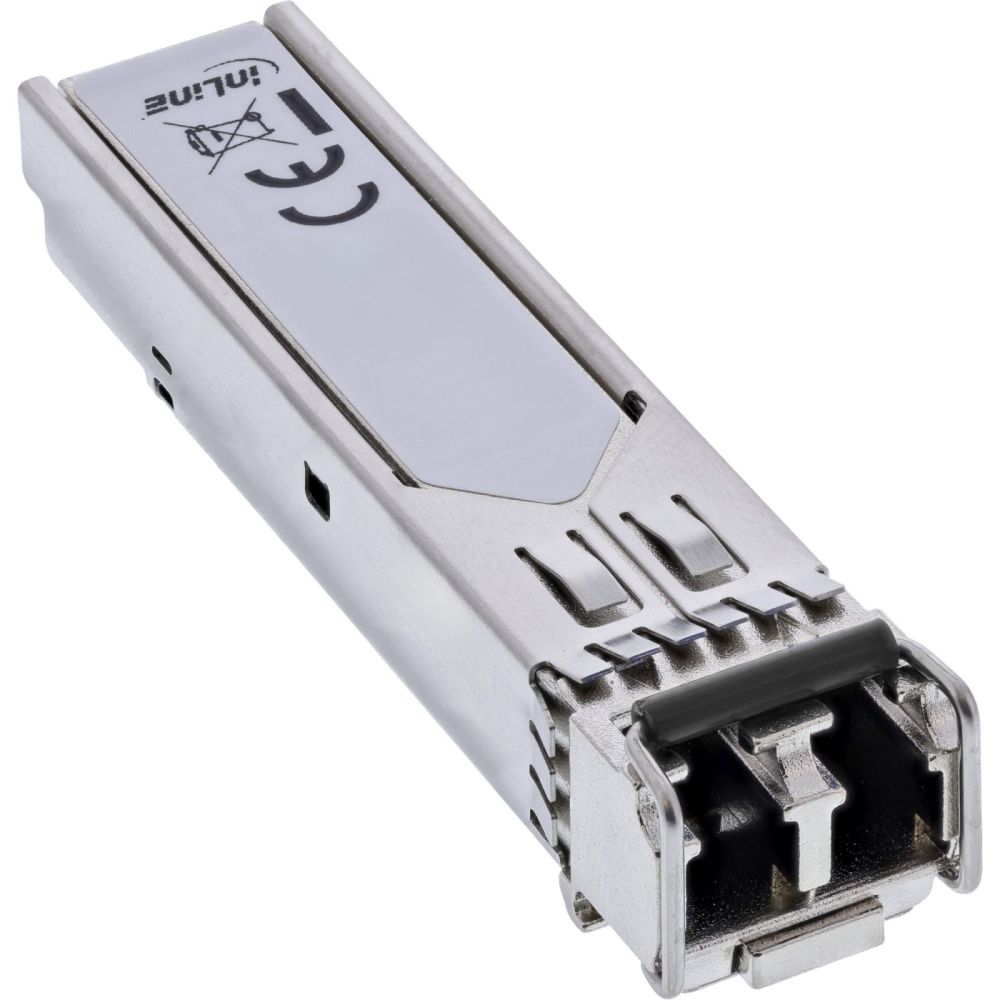

InLine® SFP+ module fiber optic 850nm multimode with LC sockets, 300m, 10Gb/s content_copy

SFP+ transceiver module for ultra-fast data connections up to 10.3 Gb/s
High compatibility with standard network devices and switches
LC duplex interface with multimode fiber (OM3) for a range of 300m
Digital diagnostic monitoring (DDM) for real-time performance analysis

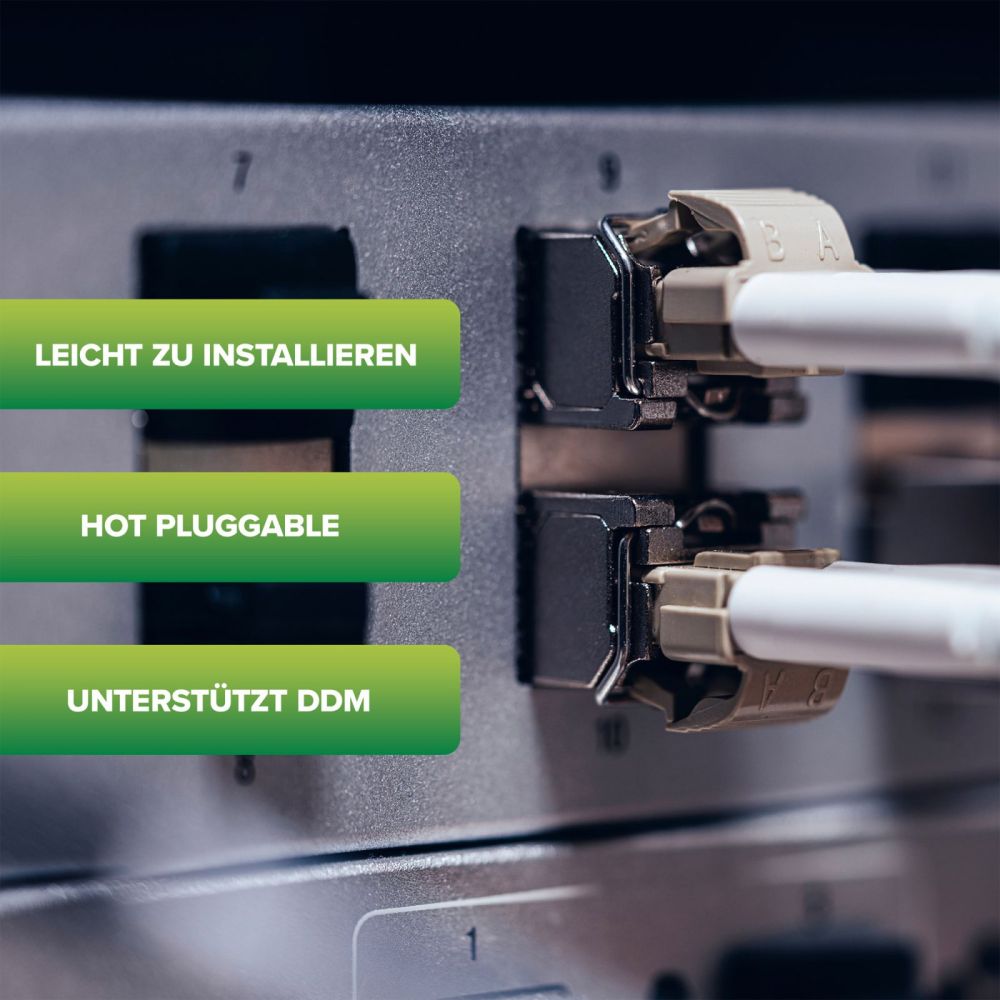

Hot-pluggable for quick and easy installation
Experience smooth and fast data transmission with the InLine® SFP+ module! This compact and powerful module supports a transfer rate of up to 10.3 Gb/s and is ideal for demanding network environments. Whether in the data center, in corporate networks or to expand your existing infrastructure, the module offers the highest performance and reliable connections.
Thanks to its multimode fiber optic technology with a range of up to 300 meters and the LC duplex interface, it is optimally designed for high-speed data connections. The integrated digital diagnostic monitoring (DDM) allows real-time control of performance parameters and ensures maximum security and efficiency.
The SFP+ module can be easily installed and replaced without interrupting network operation thanks to the hot-pluggable function. The robust design ensures stable operation in the temperature range from 0 °C to 70 °C.
Technical specifications:
Wavelength: 850nm
Optical performance: -6.5 dBm ~ -1 dBm
Multimode fiber (OM3), 300 m range
I2C interface with digital diagnostics & monitoring
Operating voltage: +3.3 V
Storage temperature: -40 °C to 85 °C

Features
Hot-Plug support
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	61 x 0.21 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	140 mm
Package height	10 mm
Package volume	100 cm³
Package weight	19 g
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Fiber optic connector	LC
Maximum transfer distance	300 m
Wavelength	850 nm
Networking standards	IEEE 802.3ae
Multi-mode fiber (MMF) supported
Digital Diagnostics Monitoring (DDM)
Power
Input voltage	3.3 V
Technical data
Length packaging	0.140m
Article height	1.30cm
Max. distance	300m
Weight	0.021kg
Packaging volume	0.0001m³
Coding	Intel
Type	SFP+ module
Number of ports	1
Variant	Multi-Mode
Width packaging	0.070m
Article width	1.50cm
Article length	6.10cm
Transmission speed	10Gb/s
Height packaging	0.010m
Net weight	0.019kg
Weight & dimensions
Width	61 mm
Depth	0.21 mm
Height	15 mm
Weight	1.3 kg

---
