InLine® Network Media Converter 10/100/1000Mb/s TP to SFP FO, MM, 550m
|
34,04 EUR |
|
|
( 40,51 EUR incl. VAT ) ≈ £28.59 | ≈ $38.19 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 22195704 |
|---|---|
| Mfg Part No: | 66659C |
| UPC/EAN: | 4043718290789 |
| Weight: | 0.328 kg |
Product information for Inline 66659C:
Extend network range via fiber up to 550 mDirect transition from copper to fiber: RJ45-to-SFP conversion connects existing ports without new cabling.
Use Gigabit flexibly: 10/100/1000 Mb/s on copper and 1000Base-FX on fiber for different segments.
Fast troubleshooting: Link Fault Pass Through and status LEDs clearly indicate connection states.
Less configuration effort: Auto MDI/MDI-X and auto-negotiation simplify deployment.
Range up to 550 m: Multimode at 850 nm provides reliably stable links across buildings.

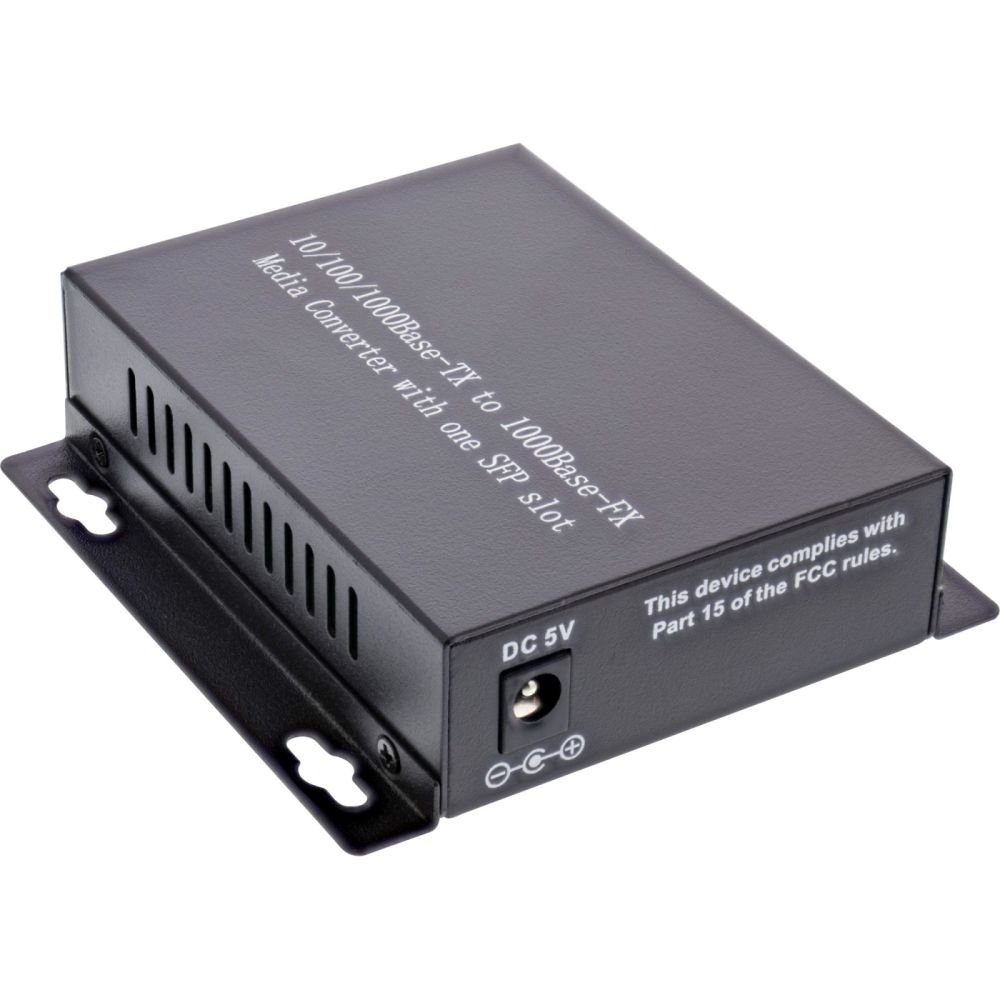

This compact media converter connects 10/100/1000Base-T over RJ45 to a fiber link via an SFP slot. With multimode fibers (850 nm), distances up to 550 m can be bridged, for example for connecting remote building sections or backbone transitions.
In professional IT environments, for on-site installations and in service deployments, existing copper cabling can be extended to fiber without structural modifications. In existing infrastructures of companies and public institutions, the conversion also provides a reliable connection over longer distances.

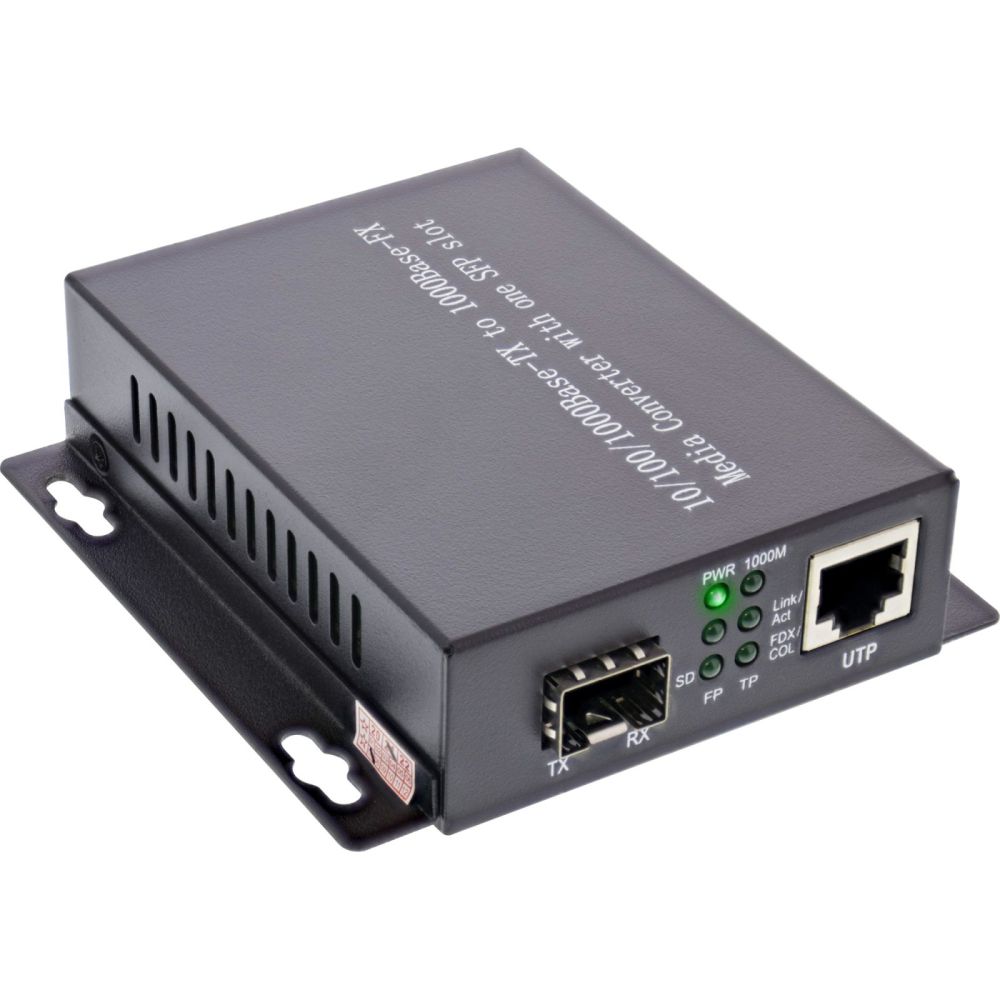

Ports: 1x RJ45 10/100/1000Base-T, 1x SFP slot (for LC duplex module)
Media conversion: 10/100/1000Base-T to 1000Base-FX
Range: up to 550 m (multimode)
Wavelength: 850 nm
Functions: Auto MDI/MDI-X, auto-negotiation, Link Fault Pass Through, status LEDs
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.1p QoS, IEEE 802.1d, IEEE 802.3z, IEEE 802.3ab

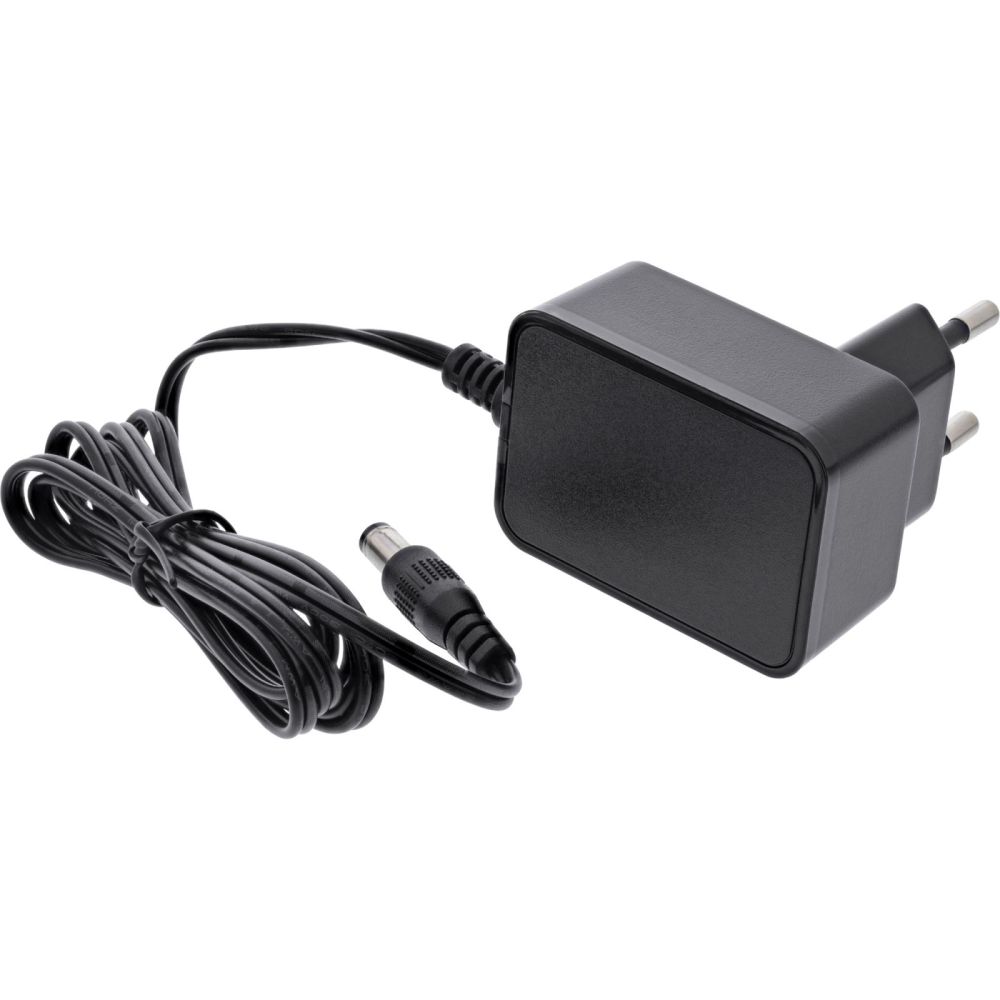

Power supply: External switching power supply 5 V DC, 1 A
SFP modules are not included
Use Gigabit flexibly: 10/100/1000 Mb/s on copper and 1000Base-FX on fiber for different segments.
Fast troubleshooting: Link Fault Pass Through and status LEDs clearly indicate connection states.
Less configuration effort: Auto MDI/MDI-X and auto-negotiation simplify deployment.
Range up to 550 m: Multimode at 850 nm provides reliably stable links across buildings.
This compact media converter connects 10/100/1000Base-T over RJ45 to a fiber link via an SFP slot. With multimode fibers (850 nm), distances up to 550 m can be bridged, for example for connecting remote building sections or backbone transitions.
In professional IT environments, for on-site installations and in service deployments, existing copper cabling can be extended to fiber without structural modifications. In existing infrastructures of companies and public institutions, the conversion also provides a reliable connection over longer distances.
Ports: 1x RJ45 10/100/1000Base-T, 1x SFP slot (for LC duplex module)
Media conversion: 10/100/1000Base-T to 1000Base-FX
Range: up to 550 m (multimode)
Wavelength: 850 nm
Functions: Auto MDI/MDI-X, auto-negotiation, Link Fault Pass Through, status LEDs
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.1p QoS, IEEE 802.1d, IEEE 802.3z, IEEE 802.3ab
Power supply: External switching power supply 5 V DC, 1 A
SFP modules are not included
| Technical data | |
| Width packaging | 0.120m |
| Storage temperature | -20 to +70°C |
| Height packaging | 0.050m |
| Article height | 2.50cm |
| Length packaging | 0.230m |
| Wavelength | 850nm |
| Max. distance | 550m |
| Weight | 0.328kg |
| Operation temperature | 0 to +60°C |
| Input | RJ45 |
| Net weight | 0.177kg |
| Type | Media converter |
| Article width | 7.00cm |
| Fibre type | Multi mode |
| Packaging volume | 0.0014m³ |
| Article length | 9.50cm |
| Output | SFP (LC Duplex) |
| Transmission speed | 10/100/1000Mb/s |
