InLine® HDMI Switch, 3-port, 8K4K@60Hz, HDCP 2.3 content_copy

8K @ 60 Hz, 4K @ 144 Hz – razor-sharp image quality for gaming and home cinema
Automatic or manual switching – by remote or button
Wide audio compatibility – supports DTS-HD, Dolby TrueHD & more
HDMI 2.1 & HDCP 2.3 – optimized for modern TV and AV systems
Plug & Play – easy installation without drivers

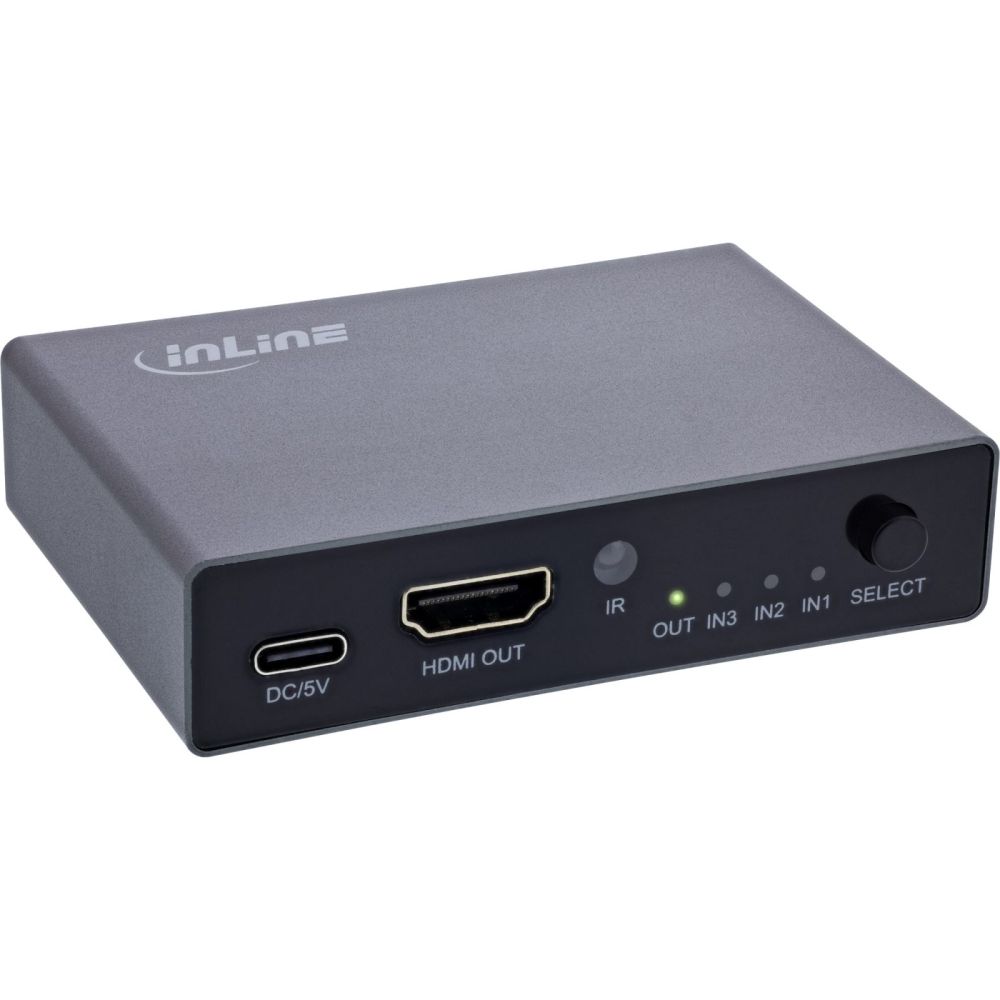

The InLine 3-port HDMI switch allows you to connect up to three HDMI devices to just a single HDMI port on your TV or monitor. Whether it's a games console, Blu-ray player or computer, the switch makes switching between devices easy and convenient.
Thanks to HDMI 2.1 support, you can enjoy 8K resolution at 60 Hz or 144 Hz in 4K – perfect for gaming, streaming and home theater experiences. The compact design fits perfectly into any entertainment setup, while the automatic switching function ensures that the active source is always recognized. Alternatively, switching can also be controlled manually via IR remote control.
In addition to the excellent image quality, the switch offers broad audio compatibility, including Dolby TrueHD, DTS-HD and LPCM 7.1. The device is backward compatible and also supports lower resolutions. Thanks to plug and play, no additional software is required – just plug it in and get started!
Technical data:
Resolution: up to 8K @ 60 Hz (7680x4320 px), 4K @ 144 Hz (3840x2160 px), 480i/480p, 576i/576p, 720p, 1080i/1080p, 1440p, 2160p (4K), 4320p (8K)
HDMI/HDCP version: HDMI 2.1, HDCP 2.3
Supports video in color format at: 24 bits, 30 bits, 36 bits
Max. transmission rate: 48 Gb/s
Supports audio: DTS HD/Dolby* TrueHD/LPCM7.1 / DTS / Dolby*-AC3 / DSD HD (HBR)
Input current: 5V/1A
Distance between the input and output cables: Maximum output cable length: 2m AWG24 HDMI standard cable
Operating temperature: -15 to +55°C
Operating humidity: 5% to 90% RH
Dimensions: 83 x 56.5 x 20 mm

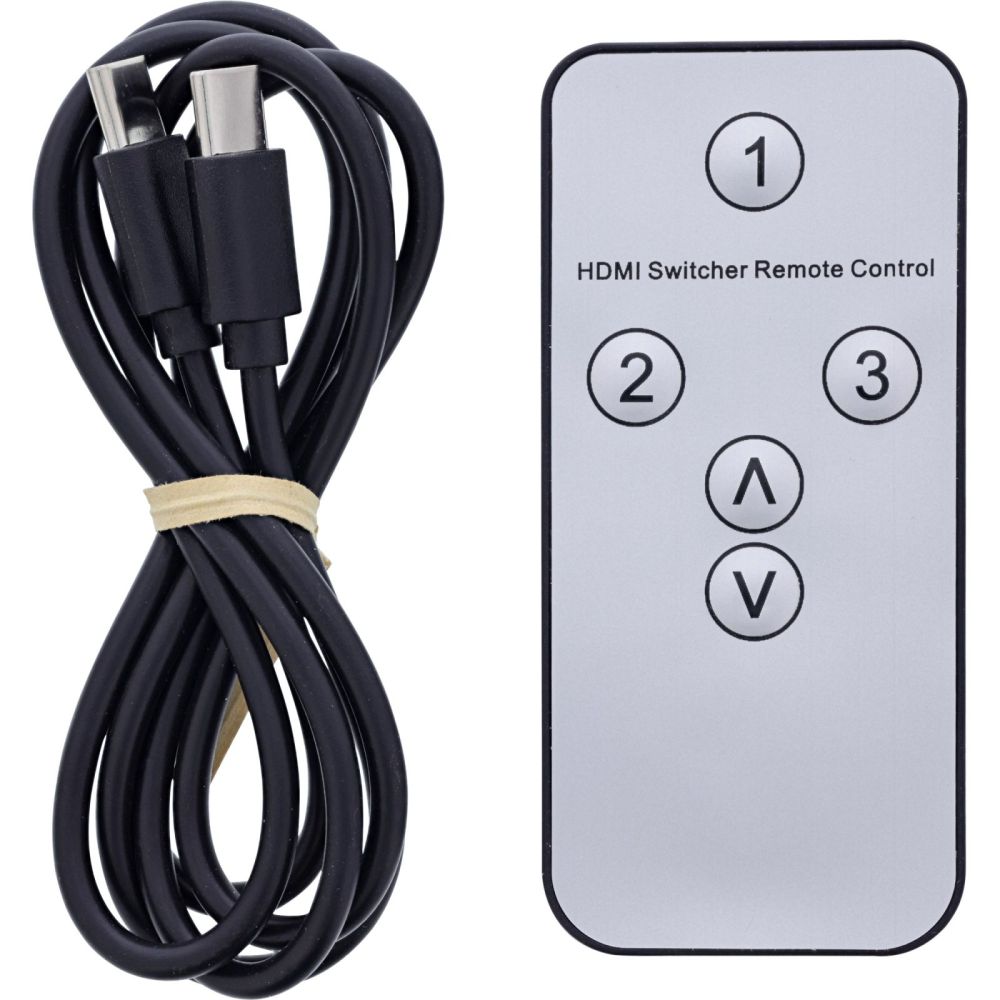

Contents:
1x HDMI switch
1x USB-C cable (1m)
1x IR remote control
1x user manual (DE/EN)
*To operate the HDMI switcher, make sure that the source devices and display devices are connected correctly. To ensure that the corresponding interfaces function optimally, use the supplied USB-C power cable. First turn on the switcher and then the source and display devices.

Features
Product colour	Black
Maximum refresh rate	144 Hz
Maximum operating distance	2 m
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 2160p, 4320p
HD type	8K Ultra HD
Colour depth	36 bit
Audio decoders	DSD, DTS, DTS-HD, Dolby AC3, Dolby TrueHD
HDCP version	2.3
HDCP
LED indicators
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-15 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Packaging content
Cables included	USB Type-C
Remote control included
Manual
Packaging data
Package width	100 mm
Package depth	145 mm
Package height	48 mm
Package weight	157 g
Package volume	700 cm³
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	4
HDMI version	2.1
HDMI in	3
Number of HDMI outputs	1
Power
AC adapter input voltage	5 V
AC adapter input current	1 A
Technical data
Interface	HDMI
Number of inputs	3
Length packaging	0.145m
Article height	2.00cm
Article type	Switch
Net weight	0.089kg
Packaging volume	0.0007m³
Article width	5.50cm
Weight	0.157kg
Width packaging	0.100m
Article length	8.20cm
Height packaging	0.048m
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	55 mm
Depth	82 mm
Height	20 mm
Weight	89 g
Dimensions (WxDxH)	55 x 82 x 20 mm

---
