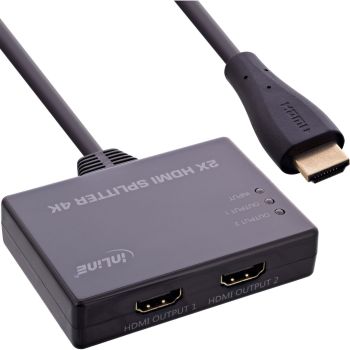

InLine® HDMI splitter, 2-way, 4K/60Hz, with integrated cable content_copy

Simultaneous image and sound output: Distributes an HDMI signal to two output devices in high quality.
4K/60Hz support: Enjoy razor-sharp resolutions up to 4K at 60Hz for brilliant image display.
HDCP 1.4 & 2.2 compatible: Secure transmission of protected content according to current standards.
Convenient integrated HDMI cable: Permanently installed 0.5 m HDMI cable saves space and ensures quick installation.
Versatile applications: Perfect for home theater, presentations, exhibitions, and many other scenarios.
The InLine HDMI Splitter 2-way is the ideal solution for distributing an HDMI input signal to two output devices simultaneously. This allows image and sound signals to be displayed in the highest quality on two monitors, televisions, or projectors—without any loss of quality. Thanks to support for resolutions up to 4K at 60Hz, 12-bit Deep Color, Full 3D, and HDCP 1.4 and 2.2 copy protection standards, it is compatible with a wide range of modern devices.
The permanently integrated HDMI cable (0.5 m) saves additional cabling effort and enables quick, uncomplicated installation without drivers or software. Its versatility makes the splitter a practical solution for home theaters, presentations, exhibition spaces, or real-time video transmission. Multiple devices can be connected in cascade to cover greater distances or additional output points.
HDCP compliant with HDCP Revision 1.4/2.2 specification
Supports HDTV resolutions up to 4K/60Hz
Supports Deep Color 12-bit
Supports LPCM 7.1CH and DTS-HD Master Audio
Supports Full 3D
Input: 1x HDMI (Type A plug on cable, 0.5m)
Outputs: 2x HDMI (Type A socket)
Output resolutions: 480i~1080p@50/60Hz, 1080p@24/50/60Hz, VGA~UXGA, 2K@60Hz, 4K@60Hz
Housing material: Plastic

Features
Product colour	Black
Maximum resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Colour depth	12 bit
HDCP version	2.2
HDCP
3D
Packaging data
Package width	110 mm
Package depth	130 mm
Package height	36 mm
Package weight	140 g
Package volume	600 cm³
Ports & interfaces
Video port type	HDMI
Video in	2
Video out	2x HDMI
Technical data
Net weight	0.083kg
Weight	0.140kg
Article type	Splitter
Article height	2.00cm
Length packaging	0.130m
Height packaging	0.036m
Article width	5.20cm
Interface	HDMI
Packaging volume	0.0006m³
Article length	8.10cm
Number of inputs	2
Width packaging	0.110m
Weight & dimensions
Width	52 mm
Depth	81 mm
Height	20 mm
Weight	83 g
Dimensions (WxDxH)	52 x 81 x 20 mm

---
