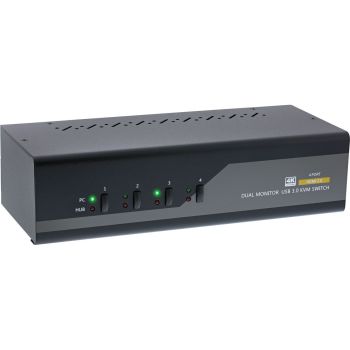

InLine® KVM Desktop Switch, 4-port, Dual Monitor, HDMI, 4K, USB 3.0, Audio
|
356,71 EUR |
|
|
( 424,48 EUR incl. VAT ) ≈ £298.57 | ≈ $399.16 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195818 |
| Mfg Part No: | 62654I |
| UPC/EAN: | 4043718284733 |
| Weight: | 3.442 kg |
Product information for Inline 62654I:
Control four computers centrally with two monitorsFour computers on one console: You use a keyboard, a mouse, and two monitors centrally.
Clear 4K image quality: Up to 3840x2160 at 60 Hz per monitor via HDMI 2.0.
Share peripherals conveniently: Two USB 3.0 (USB 3.2 Gen 1) Type-A ports for shared devices.
Switch audio flexibly: Switch speakers and microphone separately; continue listening to music from one PC.
High input compatibility: TTU emulation processes modern keyboards and mice reliably.
With this desktop KVM switch you control four computers using only one USB keyboard, one mouse, and two HDMI monitors. TTU emulation preserves the functions of modern input devices. You also share peripherals via two fast USB ports, while the separate audio and microphone switching supports an uninterrupted multimedia experience, even when switching between systems.
In offices and home office setups, the device facilitates monitoring and operation of multiple computers from one workstation. It also proves itself in professional IT environments, in on-site installations, and in existing infrastructures of companies and public institutions. Operating notes: Gaming accessories with programmable special keys are not supported, monitors with refresh rates from 120 Hz are also not supported. Hotkey control works only on the designated console USB port, not via the hub ports.
Type: 4-way KVM switch
Video: 2x HDMI 2.0, up to 3840x2160 (60 Hz) per monitor
Console: 2x HDMI monitor, 1x USB mouse, 1x USB keyboard
USB hub: 2x USB 3.0 (USB 3.2 Gen 1) Type-A
Audio: support for microphone and speakers
Emulation: TTU
Compatibility: PC and Mac
Hotkey control: via designated console USB port
Power supply: DC 12 V (plug-in power supply)
Scope of delivery: KVM switch, 4x KVM cable set, power supply, manual
Clear 4K image quality: Up to 3840x2160 at 60 Hz per monitor via HDMI 2.0.
Share peripherals conveniently: Two USB 3.0 (USB 3.2 Gen 1) Type-A ports for shared devices.
Switch audio flexibly: Switch speakers and microphone separately; continue listening to music from one PC.
High input compatibility: TTU emulation processes modern keyboards and mice reliably.
With this desktop KVM switch you control four computers using only one USB keyboard, one mouse, and two HDMI monitors. TTU emulation preserves the functions of modern input devices. You also share peripherals via two fast USB ports, while the separate audio and microphone switching supports an uninterrupted multimedia experience, even when switching between systems.
In offices and home office setups, the device facilitates monitoring and operation of multiple computers from one workstation. It also proves itself in professional IT environments, in on-site installations, and in existing infrastructures of companies and public institutions. Operating notes: Gaming accessories with programmable special keys are not supported, monitors with refresh rates from 120 Hz are also not supported. Hotkey control works only on the designated console USB port, not via the hub ports.
Type: 4-way KVM switch
Video: 2x HDMI 2.0, up to 3840x2160 (60 Hz) per monitor
Console: 2x HDMI monitor, 1x USB mouse, 1x USB keyboard
USB hub: 2x USB 3.0 (USB 3.2 Gen 1) Type-A
Audio: support for microphone and speakers
Emulation: TTU
Compatibility: PC and Mac
Hotkey control: via designated console USB port
Power supply: DC 12 V (plug-in power supply)
Scope of delivery: KVM switch, 4x KVM cable set, power supply, manual
| Design | |
| Product colour | Black, Grey |
| LED indicators | |
| Display | |
| Built-in display | |
| Other features | |
| Dimensions (WxDxH) | 100 x 250 x 65 mm |
| Packaging content | |
| Cables included | KVM |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 330 mm |
| Package height | 180 mm |
| Package volume | 14900 cm³ |
| Package weight | 3.44 kg |
| Package type | Box |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Audio channels | 2.0 |
| Number of displays supported | 2 |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 12 V |
| System requirements | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Technical data | |
| Data rate | 5Gb/s |
| Video inputs per CPU | DisplayPort x2 |
| Width packaging | 0.250m |
| Number of CPU | 4 |
| DisplayPort standard | 1.2 |
| Weight | 3.442kg |
| Length packaging | 0.330m |
| Article length | 25.00cm |
| Height packaging | 0.180m |
| Packaging volume | 0.0149m³ |
| Design | Desktop |
| Type 1 | KVM switch |
| Complies with HDMI standard | 2.0 |
| Net weight | 2.367kg |
| Article width | 10.00cm |
| USB specification | USB 3.2 Gen.1 |
| Article height | 6.50cm |
| Type 2 | 4-fold HDMI KVM |
| Max. resolution | 3840x2160 / 60Hz |
| Front panel buttons | |
| Incl. KVM cableset | |
| USB peripherals | |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 250 mm |
| Height | 65 mm |
| Weight | 2.37 kg |
Questions & answers
What is the delivery time of InLine® KVM Desktop Switch, 4-port, Dual Monitor, HDMI, 4K, USB 3.0, Audio?
The article InLine® KVM Desktop Switch, 4-port, Dual Monitor, HDMI, 4K, USB 3.0, Audio is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 62654I to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® KVM Desktop Switch, 4-port, Dual Monitor, HDMI, 4K, USB 3.0, Audio always at the best possible price. We can give you a discount of 2% on InLine® KVM Desktop Switch, 4-port, Dual Monitor, HDMI, 4K, USB 3.0, Audio if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
