INLINE KVM switch 4 port VGA USB with audio with fixed Cables 0,9m white content_copy

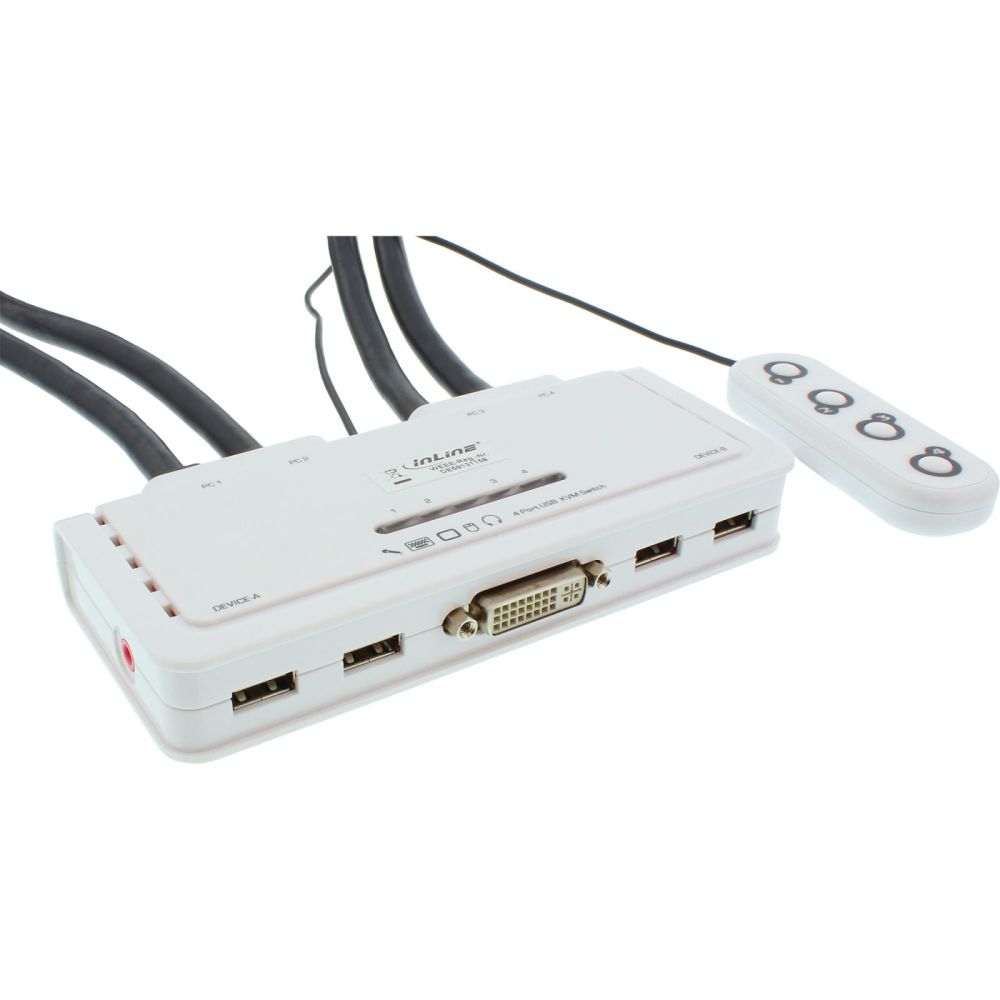

This device is a 4-port compact DVI USB Cable KVM Switch" with 4 sets of fixed USB KVM & Audio/Mic combo cables and a wired QuickSwitch button for easy connection to your two computers. It allows you to access, control, boot and reboot two USB-enabled multimedia computers with only one USB keyboard, mouse, display and a speaker set and microphone. For easy and fast switching between four computers, you can use either keyboard hotkeys, the QuickSwitch button or the Switching Software Client installed on your PCs! QuickSwitch button for instant switching operation: The QuickSwitch button can be conveniently placed near your hand on the desktop. Whenever you need to switch computer channel, you can press it lightly for instant switching to the other computer. It is the most easy and fastest way to switch. The QuickSwitch button comes optionally either with a soft-magnet bottom to be readily attached to any metal surface, or with a Hook-and-loop sticker to be applied to any spot you like. Beside the QuickSwitch button, you can also use the keyboard hotkeys and software switching utility. Switching Software Support for PC and Mac: The device comes with both Windows and Mac version of the Switching Software utility program that can be installed on the connected computers to facilitate easy "software switching. The Switching Software can show you the current active PC, and allows you to select PC as well as configure keyboard hotkeys. It appears as an icon on the system tray of your Window desktop, and will change its number icon upon switching to show the active computer port. With this software utility, it will give KVM users utmost convenience and control.1x wired QuickSwitch Button for instant switching by a flip, length 1.5m
4x fixed DVI-D USB KVM Audio/Mic combo cables 2x 0.9m + 2x 1.5m
Windows and Mac switching software support
USB 2.0 hub ports for keyboard, mouse or other high-speed USB devices
DVI-D digital video up to 1920 x 1200 (single link)
Independent/simultaneous switching of PC and Audio/Mic channel
User-definable hotkeys and universal hotkey for computer switching

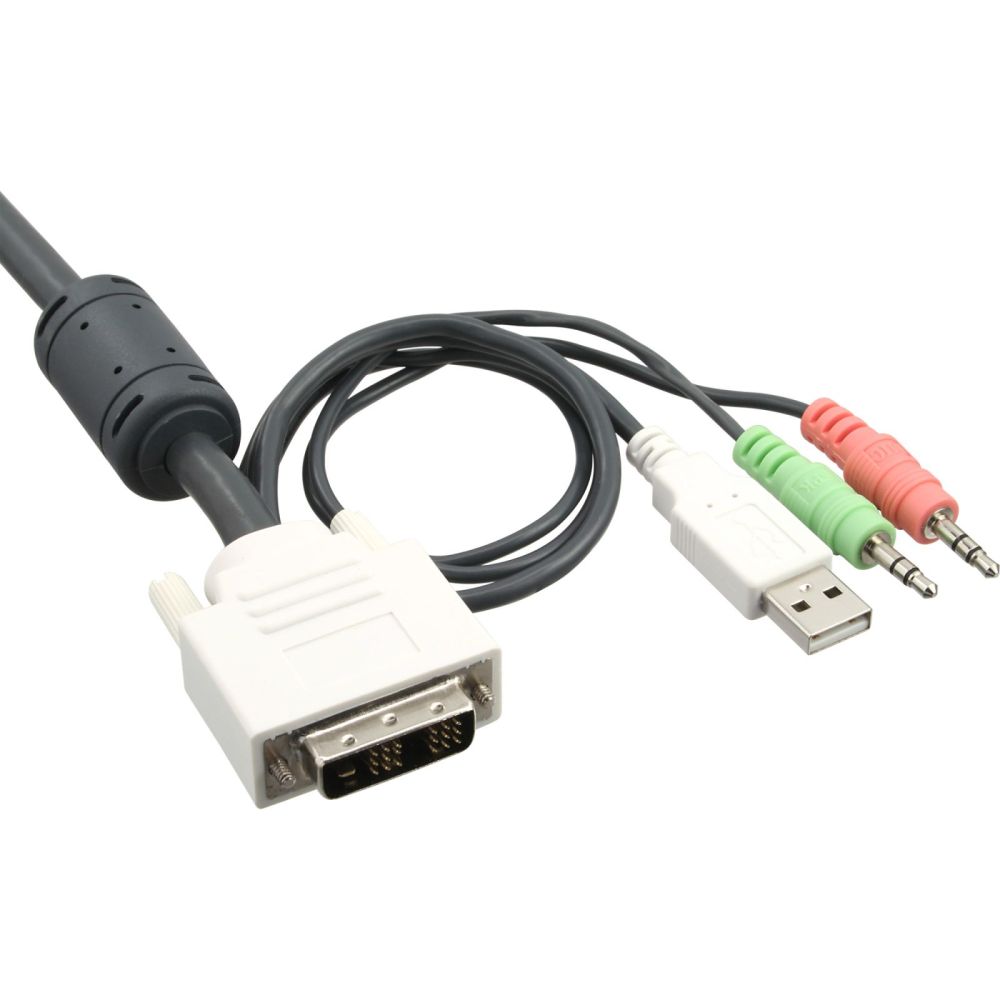

4 cable sets: 1x DVI-D 18+1 male plug, 1x USB A male plug, 2x 3.5mm audio plugs

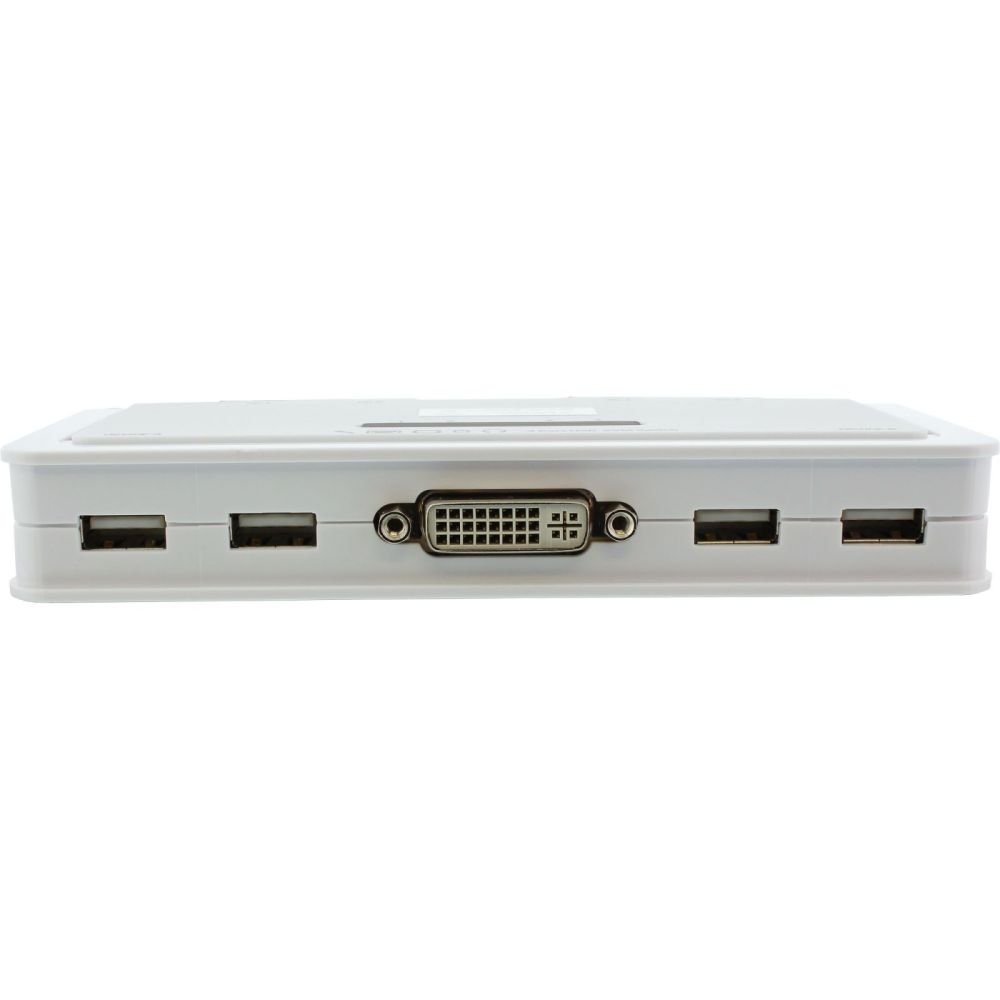

Device: 1x DVI-D female port, 4x USB A female port, 2x 3.5mm audio jack
USB interface powered

Design
Cable length	0.9 m
LED indicators	Activity
Wired remote switch
Packaging data
Package width	190 mm
Package depth	280 mm
Package height	85 mm
Package volume	4500 cm³
Package weight	1.27 kg
Performance
Maximum resolution	1920 x 1200 pixels
Video bandwidth	60 Hz
Hot-Plug support
Plug and Play
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D
DVI-D ports quantity	1
USB 2.0 ports quantity	4
Audio connections
Power
USB powered
System requirements
Windows operating systems supported
Mac operating systems supported
Technical data
Number of CPU	4
Max. resolution	1920x1200 / 60Hz
Type 2	4-fold DVI KVM
Peripheral outputs per console	USB-A female x4
Incl. KVM cableset	Fixed
Weight	1.269kg
Video inputs per CPU	DVI-D (Single Link) x1
Height packaging	0.085m
Screen connectors per console	1
Packaging volume	0.0045m³
Periphery inputs per CPU	USB-A male x1
Width packaging	0.190m
Design	Wired
Audio outputs per console	3.5mm jack x2
Length packaging	0.280m
Data rate	480Mb/s
USB specification	USB 2.0
Video outputs per console	DVI-D (Dual Link) x1
Net weight	1.023kg
Type 1	KVM switch
Audio per CPU	3.5mm jack x2
Cable length f. computer	0.9 / 1.5m
Number of consoles	1
Audio microphone
Audio loudspeakers
Cable remote control
Extension (daisy chain or cascading)
USB peripherals
Weight & dimensions
Weight	1.02 kg

---
