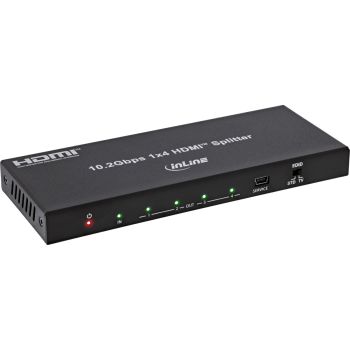

InLine® Video Splitter, 1x4, HDMI 4K/30Hz content_copy

Parallel 1x4 signal distribution: Distributes an HDMI signal to up to four output devices simultaneously. All connected displays reproduce identical image and sound signals without switching.
4K resolution up to 3840 x 2160 @ 30 Hz: Supports Ultra HD content with a data rate of up to 10.2 Gb/s. Alternatively, 1920 x 1080 @ 60 Hz is reliably transmitted.
EDID switching for flexible display adjustment: The integrated slide switch allows you to choose between STD and TV mode. The output signal is adjusted to different display devices.
Broad audio support including multi-channel formats: Supports PCM 2.0 / 5.1 / 7.1 as well as Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio and DSD for high-quality sound transmission.
Designed for professional continuous operation: Developed for use in dry indoor environments with stable signal transmission in AV installations, presentation environments and digital signage applications.
The InLine® 1x4 HDMI Splitter enables the simultaneous distribution of an HDMI signal to up to four output devices. All connected displays reproduce identical image and sound signals. The device is suitable for installations where a signal needs to be output multiple times.
With support for HDMI 1.4 and HDCP 1.4, the splitter processes resolutions up to 3840 x 2160 @ 30 Hz and 1920 x 1080 @ 60 Hz. The maximum data rate is 10.2 Gb/s with a bandwidth of 297 MHz. 3D content is also supported.
Thanks to integrated EDID switching via a slide switch, you can choose between STD and TV mode. This allows the output signal to be adapted to different display devices. RGB and YCbCr 4:4:4 / 4:2:2 / 4:2:0 colour spaces with 8, 10 or 12 bit colour depth are supported.
The HDMI splitter also offers comprehensive support in the audio sector. In addition to PCM 2.0, 5.1 and 7.1, Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio and DSD are also processed.
Technical features
Maximum number of outputs: 4
EDID management: slide switch (STD / TV)
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Video / Signal
HDMI standard: HDMI 1.4
HDCP: Version 1.4
Maximum resolution:

• 3840 x 2160 @ 30 Hz
• 1920 x 1080 @ 60 Hz
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth: 8 / 10 / 12 bits
Maximum data rate: 10.2 Gb/s (297 MHz)
3D support: yes
Audio
Supported audio formats:
PCM 2.0 / 5.1 / 7.1
Dolby Digital
Dolby TrueHD
DTS
DTS-HD Master Audio
DSD
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 1.0 A
Output power: max. 5.0 W
Average efficiency in operation (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.78%
Scope of delivery
1 x HDMI splitter
1 x power supply (DC 5 V / 1 A)
1 x user manual (German/English)



Features
Maximum resolution	3840 x 2160 pixels
Colour depth	12 bit
Maximum refresh rate	60 Hz
HDCP version	1.4
Data transfer rate	10.2 Gbit/s
Audio decoders	Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, DSD
LED indicators	Power, Yes
Dolby technologies	Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio
3D
Extended display identification data (EDID)
HDCP
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Packaging content
Packaging content	1 x HDMI splitter 1 x power supply (DC 5 V / 1 A) 1 x user manual (German/English)
Manual
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	123 mm
Package depth	213 mm
Package height	60 mm
Package weight	432 g
Package volume	1600 cm³
Ports & interfaces
Video port type	HDMI
Video out	4x HDMI
HDMI version	1.4
Video ports quantity	1
DC-in jack
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	5 V
Output current	1 A
Power consumption (max)	5 W
Technical data
Weight	0.432kg
Length packaging	0.213m
Width packaging	0.123m
Height packaging	0.060m
Net weight	0.256kg
Number of inputs	1
Article type	Splitter
Article height	1.70cm
Packaging volume	0.0016m³
Article length	16.40cm
Interface	HDMI, Audio
Complies with HDMI standard	1.4
Article width	6.40cm
Weight & dimensions
Width	64 mm
Depth	164 mm
Height	17 mm
Dimensions (WxDxH)	64 x 164 x 17 mm
Weight	256 g

---
