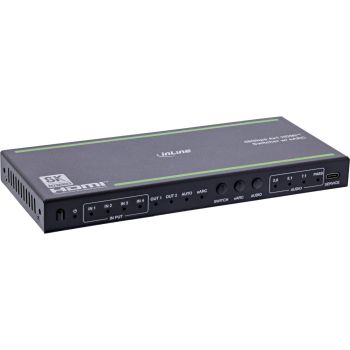

InLine® HDMI Switch, 4-way, 48Gb/s, 8K@60Hz, with audio decoupling
|
83,50 EUR |
|
|
( 99,37 EUR incl. VAT ) ≈ £69.89 | ≈ $93.44 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195256 |
| Mfg Part No: | 57885A |
| UPC/EAN: | 4043718344246 |
| Weight: | 0.783 kg |
Product information for Inline 57885A:
Ultra HD perfection: Supports 8K@60Hz and 4K@120Hz for impressive picture quality in home cinema and professional AV applications.
Versatile audio output: Choose between HDMI (audio only), optical (SPDIF) or analogue (3.5 mm jack) – ideal for modern and classic audio systems.
eARC, CEC and EDID for optimal integration: Maximum compatibility with modern AV receivers and automatic control via HDMI connections.
Manual and automatic switching: Flexible control via IR remote control or directly on the device – for maximum ease of use.
Future-proof with HDMI 2.1 and HDCP 2.3: Best performance with maximum compatibility – even for upcoming video and audio formats.
The InLine HDMI Switch 4-way with audio decoupling brings high-end connectivity and maximum flexibility to your AV setup. It allows you to connect up to four HDMI sources to a single display with eARC support – ideal for home cinema enthusiasts, gamers or professional AV installations.
With support for video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit), you'll experience crystal-clear images with rich colour depth. The switch processes modern colour spaces and HDR formats such as HDR10, Dolby Vision and HLG to reproduce every detail faithfully.
Inputs: 4 × HDMI IN (Type A, 19-pin)
Outputs
– 1 × HDMI OUT 1 (eARC, Type A)
– 1 × HDMI OUT 2 (AUDIO ONLY, Type A)
– 1 × optical (SPDIF)
– 1 × L/R (3.5 mm jack)
Video resolution
– up to 8K@60Hz (4:2:0, 12 bits)
– 4K@120Hz (4:4:4, 12 bits),
– incl. 720p, 1080p, 4K@30/60/100/120Hz, 8K@24/30/50Hz
Video bandwidth: 48 Gbps (FRL) / 18 Gbps (TMDS)
HDMI version: 2.1
HDCP version: 2.3
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth: 8 / 10 / 12 bits
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio formats (HDMI): LPCM 2.0–7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS:X
Audio formats (SPDIF): LPCM 2.0, Dolby Digital, Dolby Digital Plus, DTS
Audio formats (L/R): PCM 2.0
Control: Front buttons, IR remote control, CEC
Auto switching: Can be enabled/disabled
EDID: 2.0 / 5.1 / 7.1 / PASS (switchable)
Service port: USB-C for firmware update
ESD protection: ±8 kV air / ±4 kV contact
Dimensions: 200 × 84 × 20 mm
Weight: 430 g
Housing: metal, black
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–80% operating / 10–90% storage (non-condensing)
External power supply (power adapter)
Type: External plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 5.0 V DC
Output current: max. 1.0 A
Output power: 5.0 W
Average efficiency during operation: 79.70%
Efficiency at low load (10%): 76.78%
Power consumption at zero load: 0.092 W
Scope of delivery
1 × InLine® HDMI switch, 4-way, 48 Gb/s, 8K@60Hz, with audio decoupling
1 × power supply unit (5 V/1 A)
1 × IR remote control
1 × user manual in German/English
Versatile audio output: Choose between HDMI (audio only), optical (SPDIF) or analogue (3.5 mm jack) – ideal for modern and classic audio systems.
eARC, CEC and EDID for optimal integration: Maximum compatibility with modern AV receivers and automatic control via HDMI connections.
Manual and automatic switching: Flexible control via IR remote control or directly on the device – for maximum ease of use.
Future-proof with HDMI 2.1 and HDCP 2.3: Best performance with maximum compatibility – even for upcoming video and audio formats.
The InLine HDMI Switch 4-way with audio decoupling brings high-end connectivity and maximum flexibility to your AV setup. It allows you to connect up to four HDMI sources to a single display with eARC support – ideal for home cinema enthusiasts, gamers or professional AV installations.
With support for video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit), you'll experience crystal-clear images with rich colour depth. The switch processes modern colour spaces and HDR formats such as HDR10, Dolby Vision and HLG to reproduce every detail faithfully.
Inputs: 4 × HDMI IN (Type A, 19-pin)
Outputs
– 1 × HDMI OUT 1 (eARC, Type A)
– 1 × HDMI OUT 2 (AUDIO ONLY, Type A)
– 1 × optical (SPDIF)
– 1 × L/R (3.5 mm jack)
Video resolution
– up to 8K@60Hz (4:2:0, 12 bits)
– 4K@120Hz (4:4:4, 12 bits),
– incl. 720p, 1080p, 4K@30/60/100/120Hz, 8K@24/30/50Hz
Video bandwidth: 48 Gbps (FRL) / 18 Gbps (TMDS)
HDMI version: 2.1
HDCP version: 2.3
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth: 8 / 10 / 12 bits
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio formats (HDMI): LPCM 2.0–7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS:X
Audio formats (SPDIF): LPCM 2.0, Dolby Digital, Dolby Digital Plus, DTS
Audio formats (L/R): PCM 2.0
Control: Front buttons, IR remote control, CEC
Auto switching: Can be enabled/disabled
EDID: 2.0 / 5.1 / 7.1 / PASS (switchable)
Service port: USB-C for firmware update
ESD protection: ±8 kV air / ±4 kV contact
Dimensions: 200 × 84 × 20 mm
Weight: 430 g
Housing: metal, black
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–80% operating / 10–90% storage (non-condensing)
External power supply (power adapter)
Type: External plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 5.0 V DC
Output current: max. 1.0 A
Output power: 5.0 W
Average efficiency during operation: 79.70%
Efficiency at low load (10%): 76.78%
Power consumption at zero load: 0.092 W
Scope of delivery
1 × InLine® HDMI switch, 4-way, 48 Gb/s, 8K@60Hz, with audio decoupling
1 × power supply unit (5 V/1 A)
1 × IR remote control
1 × user manual in German/English
| Features | |
| Material | Metal |
| Product colour | Black |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| Maximum refresh rate | 120 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 7680 x 4320 |
| Supported video modes | 720p, 1080p |
| Bandwidth | 48 Gbit/s |
| Maximum resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Colour depth | 12 bit |
| Audio decoders | DTS, DTS-HD, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| HDCP version | 2.3 |
| Consumer Electronics Control (CEC) support | |
| Extended display identification data (EDID) | |
| High Dynamic Range (HDR) supported | |
| HDCP | |
| LED indicators | |
| Logistics data | |
| Country of origin | Taiwan |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Remote control included | |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Package width | 168 mm |
| Package depth | 225 mm |
| Package height | 75 mm |
| Package weight | 783 g |
| Package volume | 14600 cm³ |
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.1 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Digital audio optical out | 1 |
| 3.5 mm (1/8-inch) out | |
| DC-in jack | |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
| Technical data | |
| Article type | Switch |
| Length packaging | 0.225m |
| Weight | 0.783kg |
| Complies with HDMI standard | 2.0 |
| Height packaging | 0.075m |
| Net weight | 0.433kg |
| Packaging volume | 0.0146m³ |
| Article height | 1.90cm |
| Article length | 19.90cm |
| Number of inputs | 4 |
| Interface | HDMI |
| Width packaging | 0.168m |
| Article width | 8.80cm |
| Technical details | |
| Compliance certificates | TÜV mark |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 199 mm |
| Height | 19 mm |
| Weight | 433 g |
| Dimensions (WxDxH) | 88 x 199 x 19 mm |
