InLine® HDMI Videowall controller 1 to 4, Full-HD content_copy

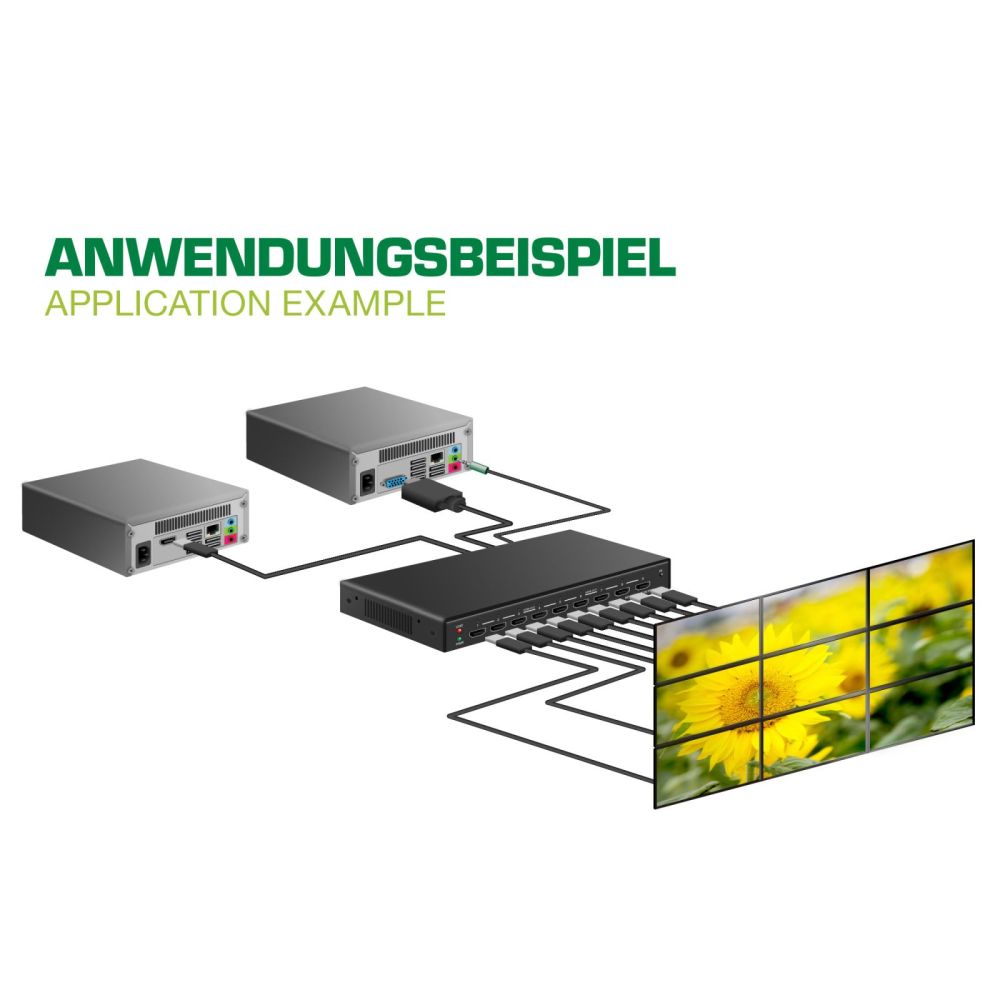

This standalone video wall controller has been developed for use with high-quality multi-display set-ups and can duplicate or expand a video source and distribute it across up to 4 monitors. With the InLine® HDMI video wall splitter, you can combine up to 4 monitors, each with a maximum output resolution of 1920 × 1200 (WUXGA), to form a large video wall (2 × 2 monitors). The maximum input resolution is 1920 × 1080 (Full HD). When connecting a WUXGA monitor, the output resolution is automatically adjusted to 1920 × 1200, with the image stretched to fill the entire screen. An HDMI or VGA interface is available for the input signal. The InLine® HDMI video wall splitter is incredibly easy to control via an IR remote control. Advanced frame compensation allows the image to be optimally adjusted to the video wall. The InLine® HDMI video wall splitter is the ideal solution for all professional video applications such as digital signage, advertising, A/V splitting or broadcasting. Create a 2x2, 1x4 or 4x1 video wall with four HDTV displays from a single HDMI or VGA source
Split and scale a single source across four displays.
Input resolution up to 1920 × 1080 (Full HD), output resolution up to 1920 × 1200 (WUXGA) with automatic adaptation to connected WUXGA monitors and HDCP-compliant technology.
Easy-to-use on-screen user interface
Advanced bezel compensation offers compatibility with virtually any screen bezel width and enables precise alignment and display of the image.

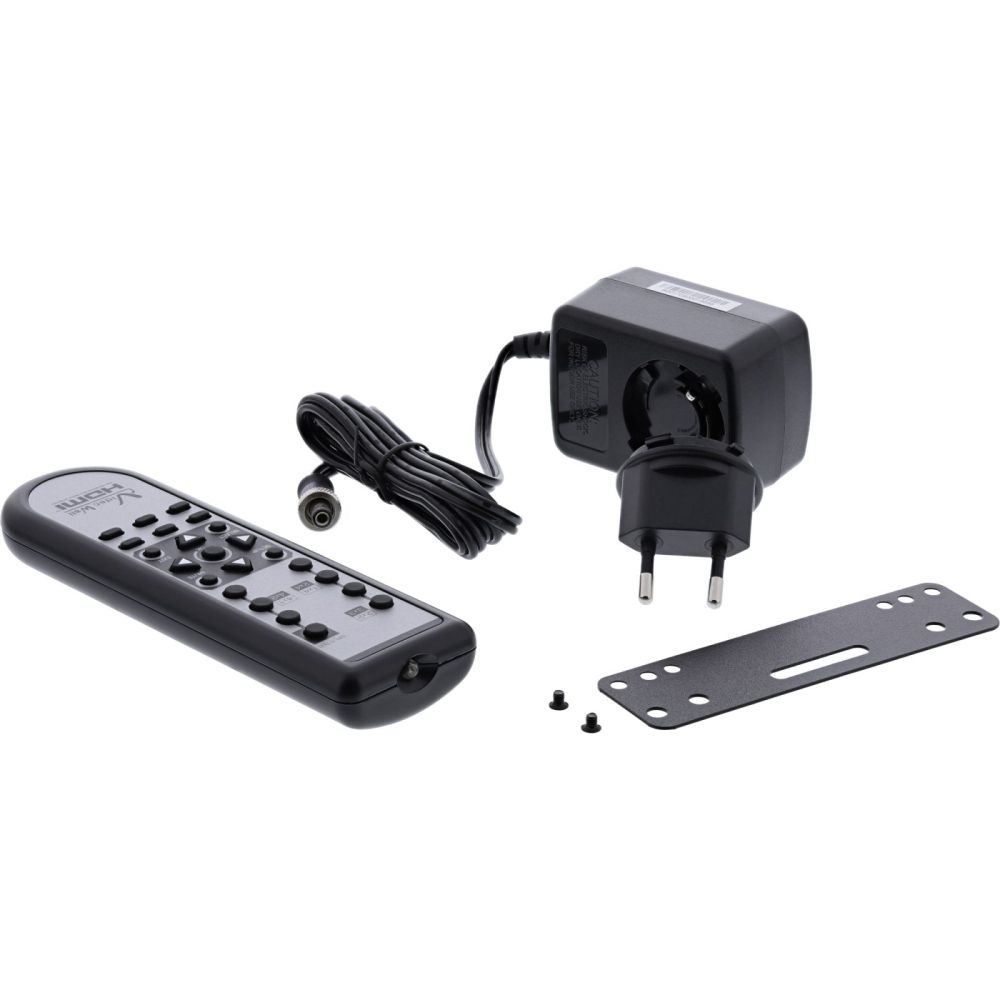

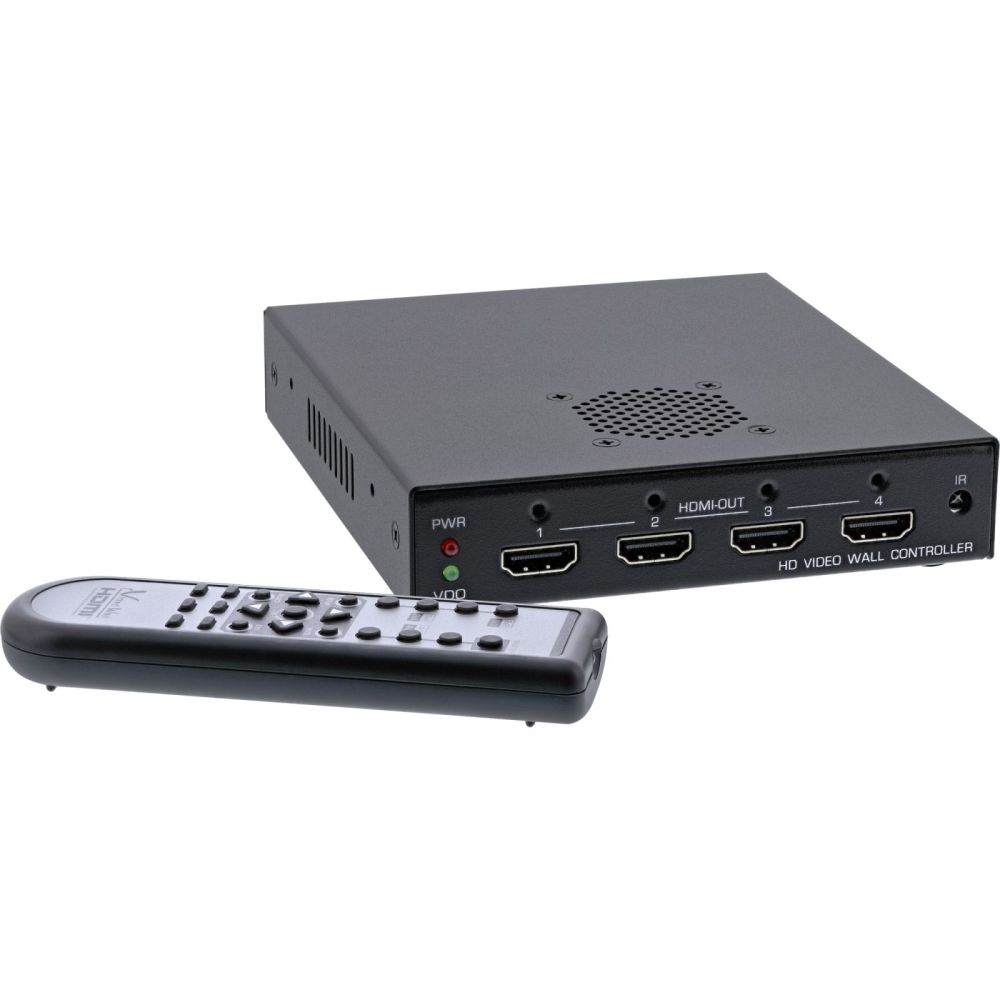

IR remote control (requires 2x AAA batteries, not included)
USB port for upgrades (reserved for future product enhancements)
Power supply plug lock
Wall-mountable housing, including mounting holes
Dimensions (LxWxH): 120x134x26mm
Weight: 470g

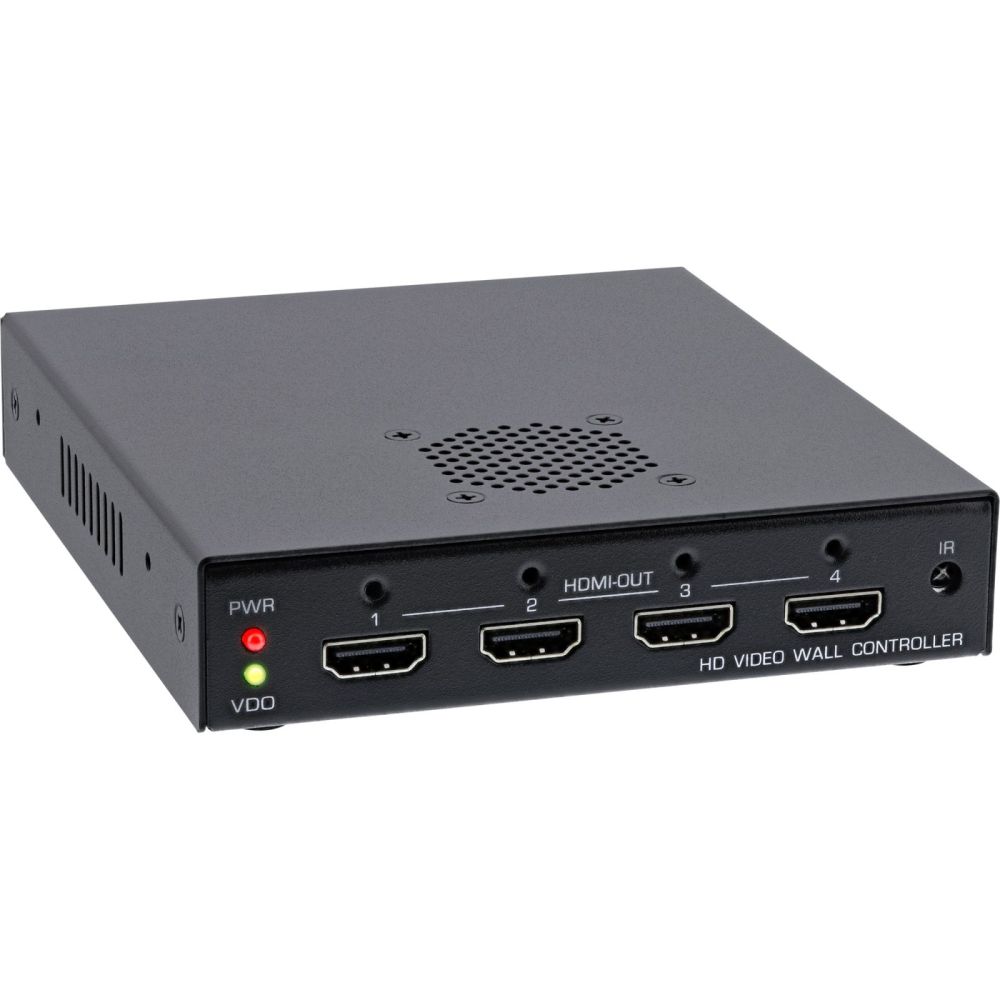

Video output: 4x HDMI sockets, lockable

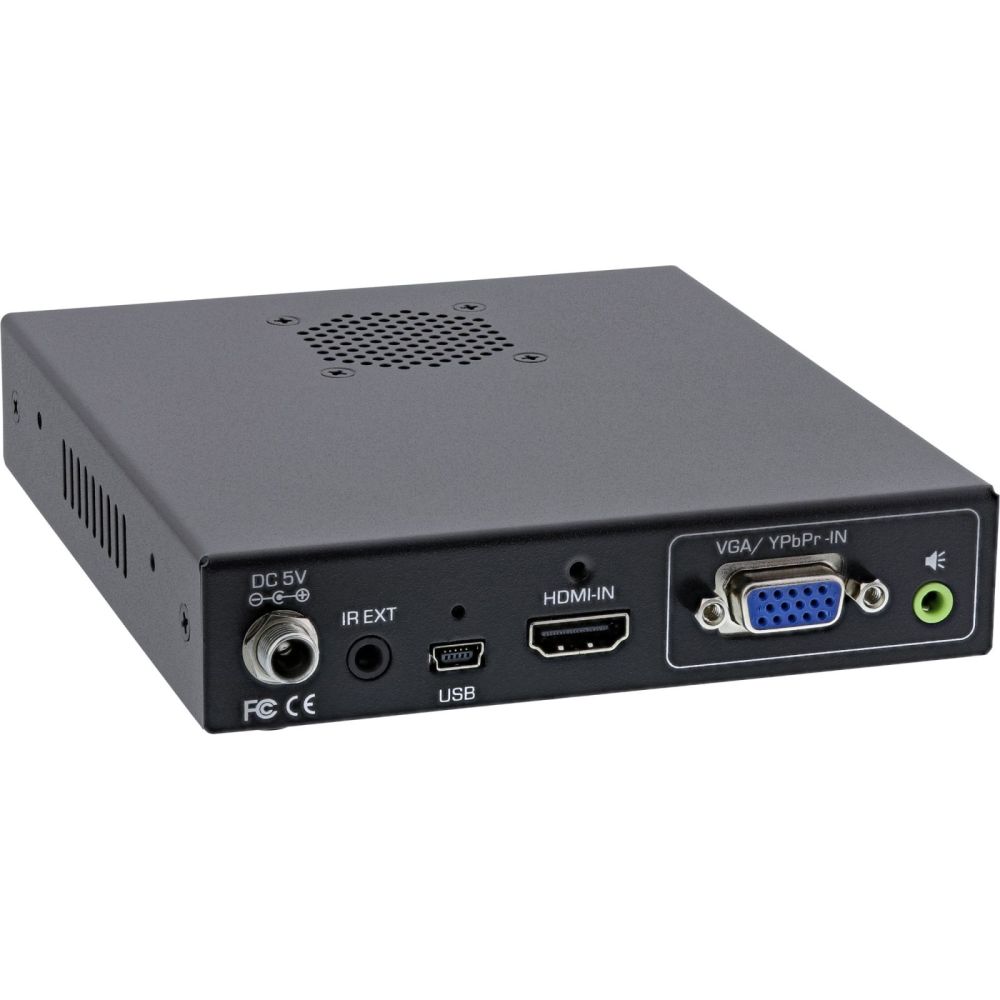

Video input: 1x HDMI socket, lockable; 1x VGA socket
Audio input: 1 x 3.5 mm stereo socket
USB: 1 x mini-USB socket
Infrared: 1 x receiver
LED indicator: 1 x red (power), 1 x green (video)
Power supply: 5 V/4 A DC, lockable
Housing: Metal casing
Operating temperature: 0 to +40°C
Storage temperature: -20 to +60°C
Humidity: 0–90%, non-condensing

Features
Product colour	Black
Supported video modes	1080p
HDCP
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Packaging content
Remote control included
Packaging data
Package type	Box
Package width	192 mm
Package depth	280 mm
Package height	84 mm
Package weight	1 kg
Package volume	45200 cm³
Ports & interfaces
VGA (D-Sub) ports quantity	1
Technical data
Outputs	HDMI socket x4
Article height	2.70cm
Weight	1.002kg
Article width	12.00cm
Number of inputs	1
Width packaging	0.192m
Interface	HDMI
Product note	Note: When outputting a Full HD signal (16:9) to a WUXGA monitor (16:10), the image is stretched to fill the entire screen. This may result in distortion of the original aspect ratio.
Article type	Splitter
Article length	14.10cm
Length packaging	0.280m
Net weight	0.490kg
Packaging volume	0.0452m³
Height packaging	0.084m
Weight & dimensions
Width	120 mm
Depth	141 mm
Height	27 mm
Weight	490 g
Dimensions (WxDxH)	120 x 141 x 27 mm

---
