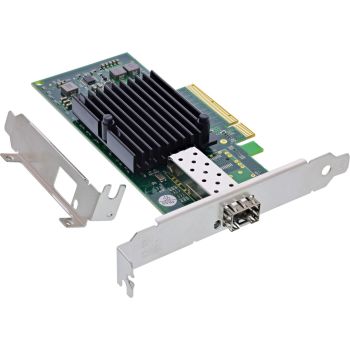

InLine® 10 Gigabit network card, 1x SFP+, PCIe x8 content_copy

10 Gb/s fiber optic network card for highest speeds, supports VLAN, Jumbo Frames and RSS
Intel JL82599EN chipset for stable performance
Compatible with various SFP+ modules (SR, LR, ER, etc.)
Maximum compatibility: Supports operating systems from Windows 7, Server 2008, Linux Kernel 2.6
Includes low-profile slot bracket for compact PCs and servers
Experience true 10 Gigabit performance with the InLine® network card for SFP+ modules. Thanks to the Intel JL82599EN chipset, this PCIe x8 card provides a stable and fast fiber optic connection with numerous network functions for demanding users.
The card supports modern features such as VLAN tagging, jumbo frames up to 16KB and RSS for load balancing on multi-core processors. It is compatible with IPv4 and IPv6 and is ideal for virtualized environments by supporting virtual device queues.
Installation is simple and the low-profile slot bracket supplied allows the card to fit into smaller cases. Compatible with common operating systems such as Windows and Linux.
Technical specifications:
Interface: PCI Express x8 (v2.0)
Port: 1x SFP+ for 10GbE fiber
Chip set: Intel JL82599EN
Supported standards: IEEE 802.3ae, 802.3x, 802.1Q
Supports: SR, LR, ER, SW, LW, EW modules
Network protocols: IPv4, IPv6
Functions: VLAN, RSS, jumbo frames (16KB), checksum offload
Operating systems: Windows 7/Server 2008 or newer, Linux Kernel ≥ 2.6
Scope of delivery: Network card incl. low-profile slot bracket

Design
Cooling type	Passive
Country of origin	China
Internal
Features
Data transfer rate (max)	10 Gbit/s
Other features
Dimensions (WxDxH)	150 x 1.89 x 120 mm
Packaging data
Package width	175 mm
Package depth	150 mm
Package height	30 mm
Package weight	99 g
Package volume	800 cm³
Mounting brackets included
Ports & interfaces
Host interface	PCIe
Output interface	SFP+
Expansion card standard	PCIe 2.0
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Connections external	1x SFP+ socket
Article length	15.00cm
Chipset	Intel JL82599EN
Transmission rate	10Gb/s
Length packaging	0.150m
Net weight	0.099kg
Connections internal	None
Packaging volume	0.0008m³
Weight	0.189kg
Article width	12.00cm
Width packaging	0.175m
Height packaging	0.030m
Type	Network card
Slot	PCIe
Article height	2.00cm
Interface	Network
Low Profile
Weight & dimensions
Width	150 mm
Depth	1.89 mm
Height	120 mm
Weight	2 kg

---
