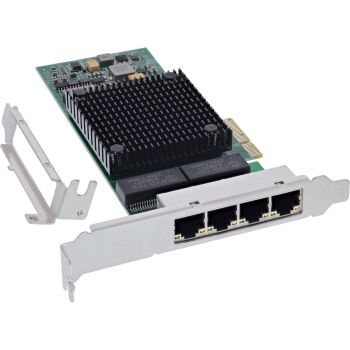

InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s, PCIe x4 content_copy

Four RJ45 Gigabit ports for powerful and stable network connections
PCIe x4 interface with compatibility to x4, x8 and x16 slots
Supports Energy Efficient Ethernet (EEE), VLAN (802.1Q) and Jumbo Frames
Ideal for virtualized environments and iSCSI applications
Intel I350AM2*2 chipset for high performance and optimized energy management
The InLine® Quad Gigabit Network Card has been specially developed for use in servers and data centers and offers high-performance network connections with four RJ45 Gigabit ports. It is ideal for virtualized environments, iSCSI applications and professional network infrastructures.
Thanks to PCIe v2.1 (x4), the card offers a high data bandwidth and is compatible with x4, x8 and x16 slots. State-of-the-art functions such as Energy Efficient Ethernet (EEE), DMA coalescing and flexible I/O virtualization (up to 32 virtual ports) ensure highly efficient network processing.
Technical data:
Bus type & PCIe: PCIe v2.1 (5 GT/s) x4 lane (compatible with x4, x8, x16 slots)
Connection: 4 x RJ45 (copper)
Chipset: Intel I350AM2*2
Supported Internet protocols: IPv4, IPv6
Dimensions: 155 mm x 69 mm (PCIe board)
Duplex modes:
Half duplex: 10/100 Mb/s
Full duplex: 10/100/1000 Mb/s
Maximum cable length:
10BASE-T: Category 3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)
Features:
Auto-negotiation: Automatic adjustment of the connection speed
Wake on LAN (WOL): Remote start of the computer possible
Jumbo frames: Transmission of larger data packets up to approx. 9K
Advanced technical details
IEEE standards:
IEEE 802.3: Basic standard for Ethernet
IEEE 802.3u: Fast Ethernet - 100 Mb/s
IEEE 802.3ab: Gigabit Ethernet - 1000 Mb/s over copper
IEEE 802.3x: Flow Control - control of the data flow
IEEE 802.1Q: VLAN - division into logical networks
IEEE 1588/802.1AS: For precise time synchronization
Other functions:
Checksum offloading: Reduces the load on the processor during checksum calculations
Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
Interrupt throttling control: limitation of the interrupt rate
Support for receive-side scaling (RSS)
Virtual machines: Support for device queues and next generation VMDq (up to 8 VMs)
Management statistics & RMON support
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s
1x low profile slot bracket
1x driver CD
1x user manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	170 x 2.03 x 120 mm
Ethernet LAN (RJ-45) ports	4
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Interface	Ethernet
Packaging data
Package width	175 mm
Package depth	3 mm
Package height	150 mm
Package weight	122 g
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Technical data
Height packaging	0.150m
Width packaging	0.175m
Article width	12.00cm
Connections external	4x RJ45 socket
Chipset	Intel I350AM2*2
Type	Network card
Slot	PCIe
Article length	17.00cm
Length packaging	0.003m
Connections internal	None
Interface	Network
Net weight	0.122kg
Article height	2.00cm
Transmission rate	1Gb/s
Weight	0.203kg
Low Profile
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	170 mm
Depth	2.03 mm
Height	120 mm
Weight	2 kg

---
