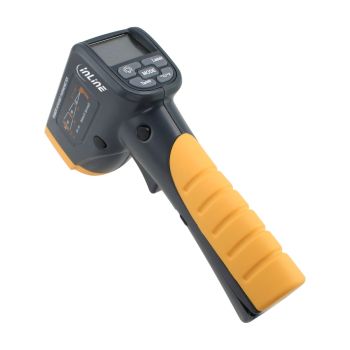

InLine® Infrared Thermometer with LCD Display content_copy

Fast, contactless temperature testing with dual displayContactless measurement: Determine surface temperatures safely without contact.
Fast results: 0.5 second response time for swift checks.
Clear dual display: 4-digit backlit LCD for two temperatures.
Accurate distance targeting: 8:1 field of view for precise aiming.
Energy-saving operation: Automatic shutdown after 25 seconds conserves the battery.
The infrared thermometer measures surface temperatures in the range from -50 °C to 500 °C. The easy-to-read LCD shows two temperatures, so you can compare and document readings directly. Thanks to the short response time, you obtain usable results with virtually no delay.
In on-site installations, service deployments, and existing infrastructures of companies and public institutions, the device facilitates safe inspection of hot or hard-to-reach surfaces. The fixed emissivity of 0.95 and the 8:1 field of view support reproducible measurements even from a distance.
Display: 4-digit LCD for two temperatures, white backlight
Field of view: 8:1
Emissivity: 0.95
Spectral sensitivity: 8-14 µm
Temperature measurement range: -50 °C to 500 °C (-58 °F to 932 °F)
Accuracy: -50 °C to -20 °C ± (5 °C/9 °F) / -20 °C to 500 °C ± (measured value x 1.5 % + 2 °C/4 °F)
Response time: 0.5 seconds
Automatic shutdown: 25 seconds
Operating environment: 0-50 °C, 10-90 % RH
Power supply: 9 V battery (included)
Dimensions: 120 x 45 x 180 mm (L x W x H)
Weight: approx. 205 g

Display
Display	LCD
Operational conditions
Storage temperature (T-T)	0 - 50 °C
Packaging data
Package width	140 mm
Package depth	245 mm
Package height	65 mm
Package weight	388 g
Package volume	2200 cm³
Technical data
Packaging volume	0.0022m³
Width packaging	0.140m
Type	Temperature sensor
Length packaging	0.245m
Net weight	0.186kg
Height packaging	0.065m
Weight	0.388kg
Weight & dimensions
Width	45 mm
Depth	120 mm
Height	180 mm
Weight	186 g

---
