InLine® Multimeter, digital, with temperature sensor, red content_copy

Wide measurement range: Measures voltage, current, resistance, temperature, and continuity, covering many typical measurement tasks.

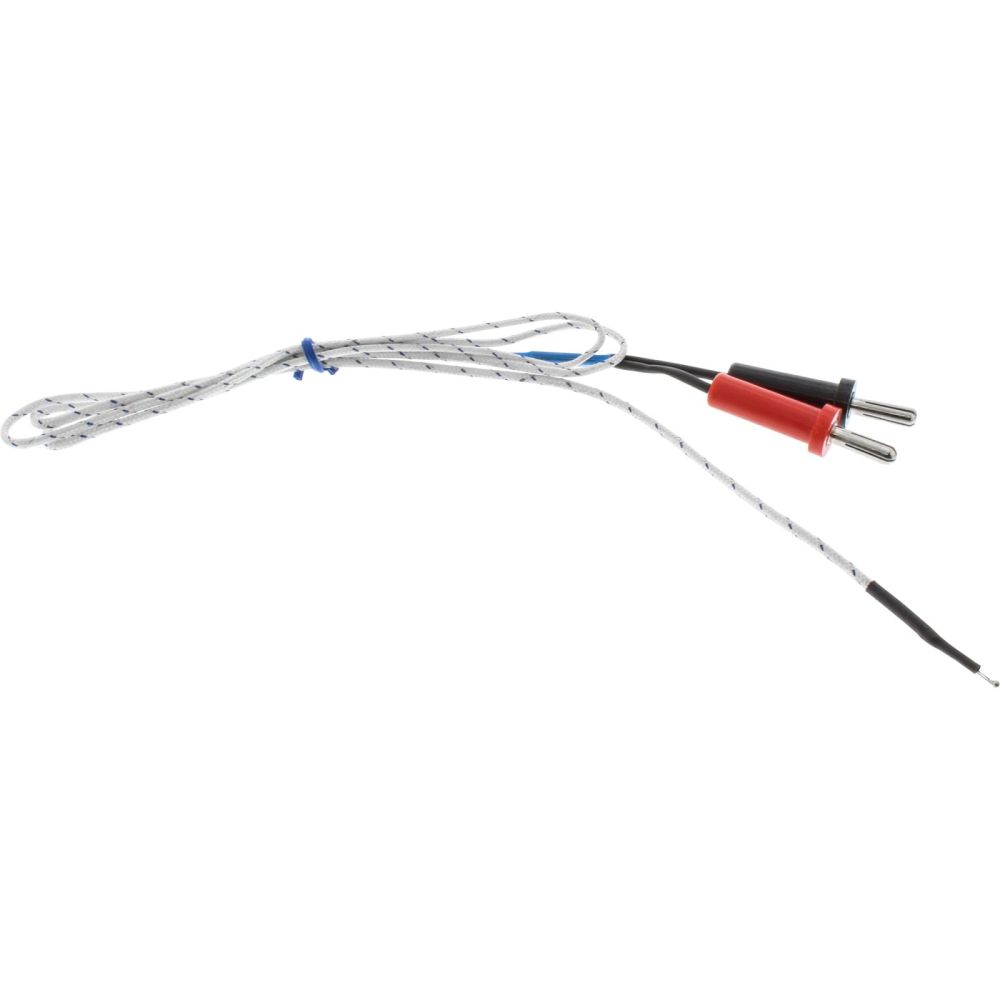

Precise temperature measurement: External probe with 1 m cable for measurements from -20 °C to 1000 °C at various measuring points.
Compact handheld device: Handy format with 3.5-digit display for easy-to-read measurements in different environments.
Acoustic feedback: Continuity tester with audio signal supports quick function tests without constant visual checks.
Quick to use: Includes measuring probes with 80 cm cable length, 9 V battery is inserted separately.

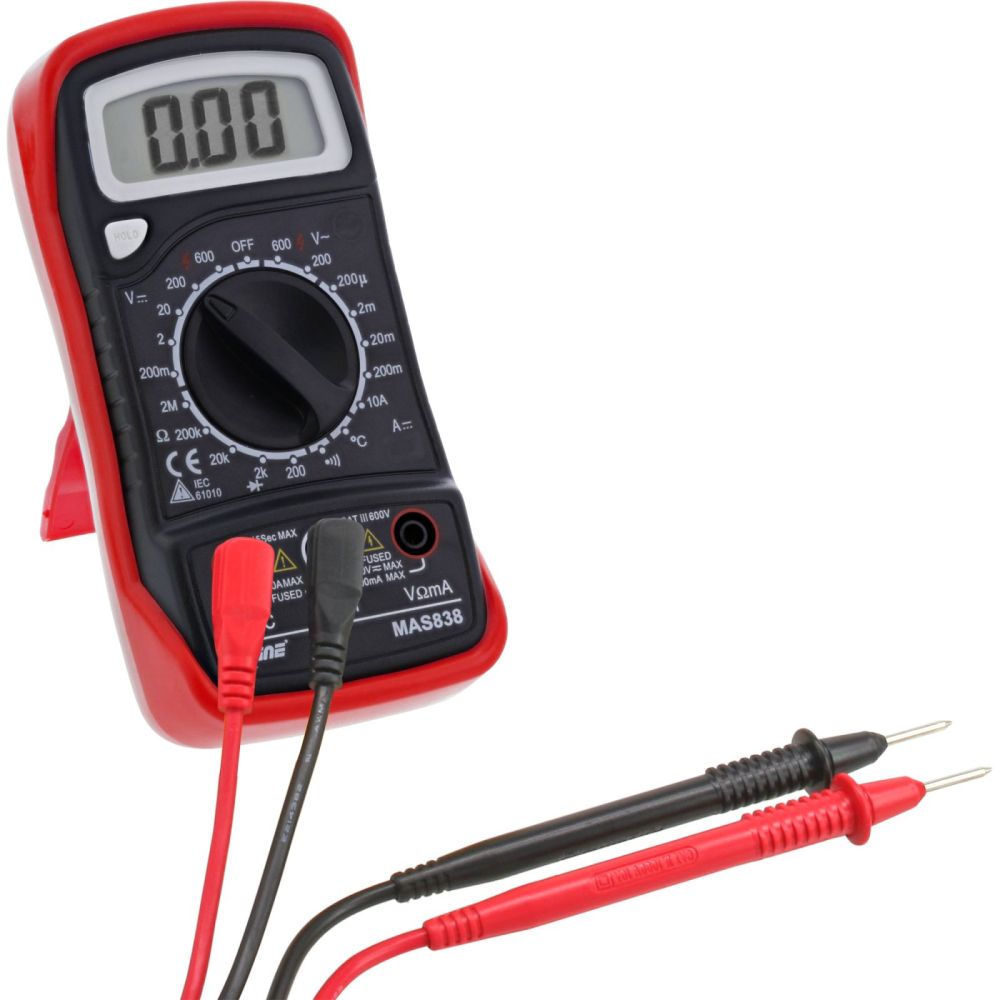

The digital multimeter from InLine offers a versatile combination of voltage, current, resistance, and temperature measurement. It is suitable for many tasks related to electrical installations, testing devices, and electronics projects.
With measuring ranges up to 600 V for DC and AC voltage, up to 10 A for DC current, and up to 2 MOhm for resistance, the device covers a wide range of applications. The included temperature sensor with a 1 m cable length enables measurements from -20 °C to 1000 °C, for example on radiators, solder joints, or metallic surfaces.
The continuity test with acoustic signal facilitates functional checks on cables or connections. The compact housing with a 3.5-digit display ensures easy-to-read measured values. Test leads with a cable length of 80 cm offer freedom of movement when working.
Note: The required 9 V battery is not included in the scope of delivery and is inserted separately.
DC voltage measurement: 1 mV to 600 V
AC voltage measurement: 0.1 V to 600 V (40 to 400 Hz)
DC current measurement: 1 µA to 10 A
Resistance measurement: 0.1 ohms to 2 MOhms
Temperature measurement: -20 °C to 1000 °C
Operating temperature: 0 to 40 °C
Power supply: 9 V battery, not included
Dimensions: approx. 138 x 68 x 31 mm
Weight: approx. 170 g
Color: Red

Display
Display	LCD
Features
Product type	Digital multimeter
DC voltage range	0.001 - 600 V
AC voltage range	0.1 - 600 V
DC current range	0.000001 - 10 A
Resistance range	0.1 - 2000000 Ω
Temperature measurement range	-20 - 1000 °C
Diode test
Other features
Dimensions (WxDxH)	138 x 68 x 31 mm
Packaging content
Batteries included
Packaging data
Package width	100 mm
Package depth	170 mm
Package height	45 mm
Package weight	347 g
Package volume	800 cm³
Power
Battery voltage	9 V
Battery low indication
Technical data
Packaging volume	0.0008m³
Net weight	0.307kg
Type	Multimeter
Height packaging	0.045m
Weight	0.347kg
Length packaging	0.170m
Width packaging	0.100m
Weight & dimensions
Weight	307 g

---
