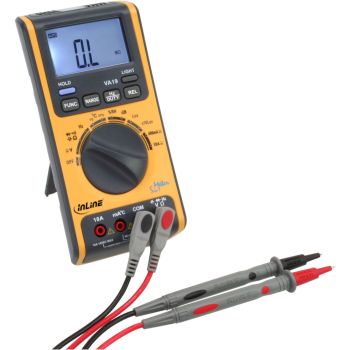

InLine® Digital Multimeter 5 in 1 content_copy

Multiple measurements quickly and safely in one deviceExtensive measurement parameters in one device: Measure voltage, current, temperature, humidity, light, and sound.
Fast evaluation without manual switching: Auto-Range and relative measurement speed up the work.
Perform troubleshooting efficiently: Diode and continuity test support diagnosis.
Good readability on site: Illuminated, 4-digit display and Data-Hold facilitate documentation.
Safe measurements in building installations: CAT III 600 V and overload protection support use.
This 5-in-1 multimeter combines the electrical standard measurements with temperature, humidity, illuminance, and sound level measurement in a compact device. Auto-Range, Data-Hold, and relative measurement facilitate precise measurements and rapid evaluation, while the illuminated display shows values clearly even in poorly lit environments.
In on-site installations, service deployments, and existing infrastructures of companies and public institutions, the device enables reliable testing and documentation. It supports safe operation in professional environments thanks to CAT III 600 V and integrated overload protection.
Voltage DC: 0.1 mV-600 V
Voltage AC: 1 mV-600 V (40-500 Hz)
Current AC/DC: 10 mA-10 A (AC: 40-200 Hz)
Temperature measurement: -20-1000 °C
Frequency measurement: 1 Hz-200 kHz
Humidity: 30-90 %
Illuminance: 4000/400000 Lux
Sound level: 35-100 dB
Tests: diode test, continuity test
Functions: Data-Hold, Auto-Range, auto power-off, relative measurement
Protection: overload protection
Display: illuminated, 4-digit
Power supply: 9 V block battery (included)
Safety: CAT III 600 V IEC1010-1
Operating temperature: 0-40 °C
Dimensions: 185 x 85 x 44 mm

Display
Display	LCD
Features
Product type	Digital multimeter
DC voltage range	0.0001 - 600 V
AC voltage range	0.001 - 600 V
AC current range	0.001 - 10 A
DC current range	0.001 - 10 A
Frequency range	0.001 - 200 kHz
Temperature measurement range	-20 - 1000 °C
Continuity check
Data hold
Diode test
Other features
Dimensions (WxDxH)	185 x 85 x 44 mm
Packaging data
Package width	170 mm
Package depth	230 mm
Package height	70 mm
Package weight	598 g
Package volume	2700 cm³
Power
Battery voltage	9 V
Auto power off
Technical data
Weight	0.598kg
Width packaging	0.170m
Net weight	0.399kg
Type	Multimeter
Length packaging	0.230m
Height packaging	0.070m
Packaging volume	0.0027m³
Weight & dimensions
Weight	399 g

---
