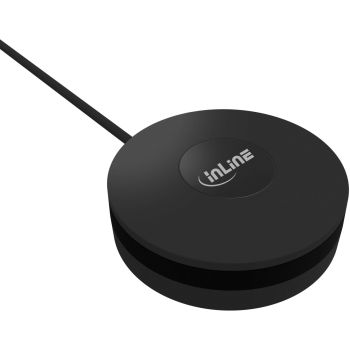

InLine® SmartHome IR Remote Control Centre, black content_copy

Your smartphone becomes a universal remote control: conveniently control your television, hi-fi system, receiver or air conditioning via an app. The IR Remote Control Centre replaces several traditional remote controls.
DIY learning mode for maximum compatibility: Almost any device with an infrared remote control in the frequency range from 38 to 56 kilohertz can be programmed and integrated.
Wi-Fi integration via 2.4 gigahertz: Connection to your home network according to IEEE802.11b/g/n. Control from anywhere via the Smart Life app.
Voice control for IR devices: Compatible with Alexa and Google Home. This allows you to conveniently operate your TV or air conditioning system via voice command.
Compact and flexible placement: IR range up to 7 metres, WiFi range up to 45 metres. With a diameter of 60 millimetres and a height of 20 millimetres, it can be positioned inconspicuously.
The InLine SmartHome IR Remote Control Centre enables intelligent control of classic infrared devices via your WiFi network. Turn your smartphone into a central universal remote control for your TV, hi-fi system, receiver or air conditioning.
Integration into your home network via 2.4 GHz WiFi makes setup easy using the Smart Life app. The integrated DIY mode allows you to program almost all IR remote controls in the frequency range from 38 to 56 kilohertz. This makes it easy to integrate older devices into modern smart home scenarios.
With an IR range of up to 7 metres, devices in the room can be reliably reached. The WiFi range is up to 45 metres, depending on the structural conditions. For optimal signal transmission, a slightly elevated position is recommended.
The device is powered via micro USB and requires only 70 milliamps in standby mode. With a diameter of 60 millimetres and a height of 20 millimetres, the Remote Control Centre is compact in size.
Thanks to its compatibility with Alexa and Google Home, IR devices can also be conveniently controlled by voice command.
WiFi range: up to 45 metres
IR range: up to 7 metres
IR frequency: 38-56 kHz
WiFi frequency: 2.4 GHz
Protocol: IEEE802.11b/g/n
Power supply: Micro USB
Power consumption in standby mode: 70 mA
Dimensions: 60 x 20 mm (Ø x H)
Scope of delivery: Remote Control Centre, 1.2 m Micro USB cable, instructions
App: Smart Life

Battery
Rechargeable
Design
Interface	IR Wireless/Wi-Fi
Remote control proper use	Smart home device
Product colour	Black
Backlight buttons
Packaging content
Cables included	Micro-USB
Manual
Packaging data
Quantity per pack	1 pc(s)
Package width	87 mm
Package depth	97 mm
Package height	50 mm
Package weight	69 g
Performance
Maximum range	45 m
Frequency band	2.4 GHz
Works with Amazon Alexa
Works with the Google Assistant
Ports & interfaces
USB connector type	Micro-USB
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2
Wi-Fi
Technical data
Colour	Black
Packaging volume	0.0005m³
Article height	1.70cm
WiFi standard	IEEE802.11b/g/n
Height packaging	0.050m
Article width	6.00cm
Length packaging	0.097m
Article length	6.00cm
Width packaging	0.087m
WiFi signal	2.4GHz
Weight	0.069kg
WiFi security	WPA/WPA2 encryption
Net weight	0.029kg
Type	Universal remote control
Range (approx.)	In visual sight up to 45m
Weight & dimensions
Cable length	1.2 m
Width	600 mm
Depth	600 mm
Height	170 mm
Weight	29 g

---
