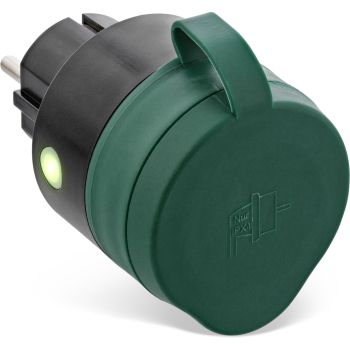

InLine® SmartHome socket outdoor IP44 content_copy

Weatherproof outdoor socket with app and voice controlWeather-protected outdoor use: IP44 protects against splashing water.
Convenient app and voice control: On/off via smartphone and voice command.
Powerful for outdoor loads: Up to 3,680 W at 16 A.
Integration into automations: Easily implement scenes and schedules.
Stable wireless connection: 2.4 GHz Wi-Fi with range up to 45 m in line of sight.
The switchable outdoor socket connects to the 2.4 GHz Wi-Fi and enables reliable on/off switching of connected devices via app or voice command. The IP44 rating and enhanced touch protection support safe outdoor use. With switching capacity up to 3,680 W, control lighting, pumps, or heaters and set schedules and scenes as needed.
In professional IT environments, on-site installations, service deployments, and existing infrastructures of companies and public institutions, the socket supports convenient control of outdoor loads around buildings, gardens, and driveways.
Color: Black/Green
Material: ABS+PC plastic
Protection rating: IP44
Connection: AC 110-240 V, 16 A, 50/60 Hz
Maximum power: 3,680 W
Signal: Wi-Fi 2.4 GHz
Wi-Fi standard: IEEE 802.11b/g/n
Range: up to 45 m (line of sight)
Ambient temperature: 0-35 °C
Operating humidity: 20-85 %
Storage temperature: 0-60 °C
Storage humidity: 0-90 %
Weight: 56 g
Dimensions (D x H): 46 x 70 mm
Inserted dimension: 33 mm
App: Smart Life
Compatibility: Amazon Alexa, Google Assistant
Enhanced touch protection: Yes

Features
Placement supported	Outdoor
Maximum outdoor range	45 m
Product colour	Black, Green
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Hue dimmer switch International Protection (IP) code	IP44
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	0 - 90%
Packaging data
Package volume	800 cm³
Package width	80 mm
Package depth	135 mm
Package height	65 mm
Package weight	146 g
Performance
Works with Amazon Alexa
Works with the Google Assistant
Smartphone/tablet remote support
Ports & interfaces
Connectivity technology	Wired & Wireless
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2
Wi-Fi
Power
Maximum input power	3680 W
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Technical data
Width packaging	0.080m
Length packaging	0.135m
Article length	7.50cm
Type	Socket
Range (approx.)	In visual sight up to 45m
Weight	0.146kg
Height packaging	0.065m
Article width	7.50cm
Packaging volume	0.0008m³
Article height	10.00cm
WiFi security	WPA/WPA2 encryption
Net weight	0.121kg
WiFi signal	2.4GHz
WiFi standard	IEEE802.11b/g/n
Weight & dimensions
Width	75 mm
Depth	75 mm
Height	100 mm
Weight	121 g

---
